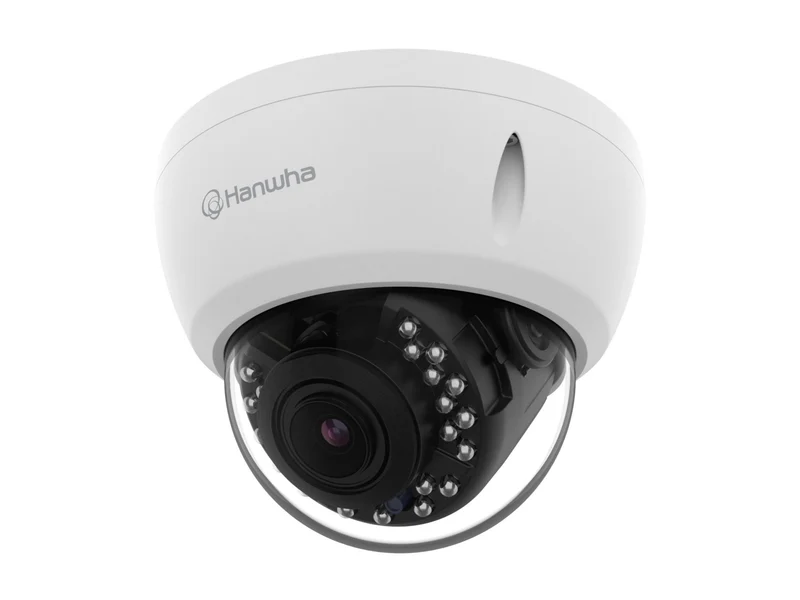

Cámara de Seguridad Hanwha Techwin WiseNet A-Series ACV-8080R

Sobre este producto

• 📹 Cámara dome 5MP a 2592 x 1944
• 🔍 Lente vari-focal motorizado con apertura f/1.6 (34-88° horizontal)
• 🌙 Visión nocturna por infrarrojos hasta 20 m con modos color y B/N
• 🌡️ Opera de -30°C a 55°C y humedad 0-90% RH
• 🛡️ Certificación IP66 e IK10 contra agua, polvo e impactos
• 📼 Salidas TVI, AHD, CVI, CVBS

Característica	Detalle
Marca	Hanwha Vision
Línea de producto	Hanwha Techwin WiseNet A-Series
Modelo	ACV-8080R
Fabricante	Hanwha
Connectivity Technology	Wired
Ports	Video output - BNC
Image Sensor Size	1/2.5"
Image Sensor Type	CMOS
Touchscreen	No
Camera Mechanical Design	Pan / tilt / zoom
Digital Video Capture Resolution	2560 x 1440, 2592 x 1944
Max Frame Rate	30 frames per second
Max Video Resolution	2592 x 1944
Shutter Speed (Max)	1/50000 second (time unit)
Shutter Speed (Min)	1/30 second (time unit)
Video Signals	AHD, CVBS, CVI, TVI
Camera Type	Surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V
Power Consumption Operational	7.2 watt
Angular Field of View (D, Max, Degree)	112
Angular Field of View (D, Min, Degree)	43
Angular Field of View (H, Max, Degree)	88
Angular Field of View (H, Min, Degree)	34
Angular Field of View (V, Max, Degree)	63
Angular Field of View (V, Min, Degree)	26
Focal Length Control	Motorized zoom
Focus Modes	Motorized
Factor de forma	Dome
Infrared Distance	66 ft
Lens Aperture	F/1.6
Max Focal Length	10.5 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	4.3 millimetre
Min Focus Distance	31.5 inch
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.4 lux - color - F1.6 - shutter 1/30 sec
Humedad de operación	0 - 90% RH
Optical Zoom	2.44
Sensor Size (metric)	10.2 mm (1/2.5")
Total Pixels	5,000,000 pixels
Video Input	Color
Características	2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Auto ICR, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Gain Control, Vertical flip and mirror, Wide Dynamic Range (WDR)
Cantidad por empaque	1
Accesorios incluidos	Anchors, Hex key, Mounting template, Screws
Alto	4.1 inch
Weight	19.4 ounce
Ancho	5.2 inch
Profundidad	5.2 inch
Color	White
Color	White
Estándares	CAN/CSA-C22.2 No. 62368-1, FCC 47 CFR Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), IEC 62471, IK10, IP66, NDAA, UL 62368-1
