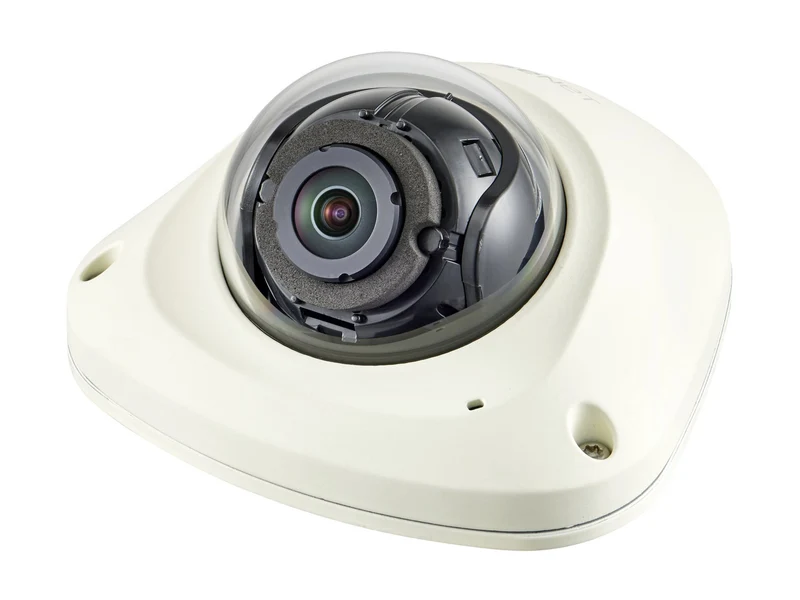

Cámara de Seguridad Hanwha Fixed Lens, XNV-6022R

Sobre este producto

• 📹 Cámara domo de red Full HD 1080p a 60 fps con resolución 2.2 MP.
• 🛡️ Diseño antivandálico con certificaciones IP66, IK10 y NEMA Type 4X para exterior.
• 🌙 Visión nocturna infrarroja hasta 15 m con WDR y estabilización de imagen digital (DIS).
• 🎞️ Múltiples formatos de compresión, incluido el eficiente códec H.265.
• 🗣️ Audio bidireccional con micrófono integrado.
• 🔌 Conexión LAN 10/100 con alimentación PoE Class 3.

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet X
Modelo	XNV-6022R
Fabricante	Hanwha
Memory Cards Supported	SD Memory Card, SDHC Memory Card, SDXC Memory Card
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, NTP, PPPoE, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SSL, SSM, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line out, Audio line-in/microphone, LAN/power - RJ-45, USB - Micro-USB Type B
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726
Audio Support	Yes
Audio Support Features	Built-in microphone, Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Digital Zoom	24
Max Frame Rate	60 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Panning Range (degree)	-5 to +5
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Capture	1920 x 1080 @ 60 fps
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	PoE Class 3
Power Consumption Operational	6.7 watt
Angular Field of View (D, Min, Degree)	114.3
Angular Field of View (H, Min, Degree)	94.8
Angular Field of View (V, Min, Degree)	49.3
Focal Length Control	Fixed focal
Focus Modes	Manual
Factor de forma	Dome
Indoor/Outdoor	Outdoor
Infrared Distance	49 ft
Infrared LEDs	Yes
Lens Aperture	F/2.0
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3.6 millimetre
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.04 lux - color - F2.0
Humedad de operación	0 - 90%
Operating System Required	Apple macOS 10.12, Apple MacOS X 10.10, Apple MacOS X 10.11, Microsoft Windows 7, Windows 10, Windows 8.1
Protection	Vandal-proof
Sensor Pixels Effective (H)	1945
Sensor Pixels Effective (V)	1097
Sensor Pixels Total (H)	1945
Sensor Pixels Total (V)	1109
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,160,000 pixels
Video Formats	AVC, H.264, H.265, MJPEG, MPEG-4
Video Input	Color
Características	2D Digital Noise Reduction Technology, 3D Noise Filtering, Audio Detection, Audio Noise Reduction, Auto gain control, Auto white balance, Backlight Compensation (BLC), Constant Bit Rate (CBR), Defocus Detection, Defog, Digital Image Stabilization (DIS), Digital PTZ function, Directional Motion Detection, Face Detection, Fog detection, Hallway View, Image flip, Image mirror, Infrared cut filter, IP address filtering, Lens Distortion Compensation (LDC), Loitering detection, Motion Detection Technology, Multicast Streaming, ONVIF (Profile G) support, ONVIF (Profile S) support, Pixel Counter Support, Privacy Mask Function, Progressive scanning, Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Smart Codec, Tamper-detection, Variable Bit Rate (VBR), Wide Dynamic Range (WDR), WiseStream II support
Cantidad por empaque	1
Alto	2 inch
Weight	10.4 ounce
Ancho	3.9 inch
Profundidad	3.9 inch
Color	Ivory
Color	White
Estándares	EN 50121-3-2:2015, EN 50155:2007, EN 55011:2009+A1:2010, EN 61000-4-2:2009, EN 61000-4-3:2006+A2:2010, EN 61000-4-5:2014, EN 61000-4-6:2009, EN 61000-4.4:2012, IEEE 802.1x, IEEE 802.3af, IK10, IP66, NEMA Type 4X
