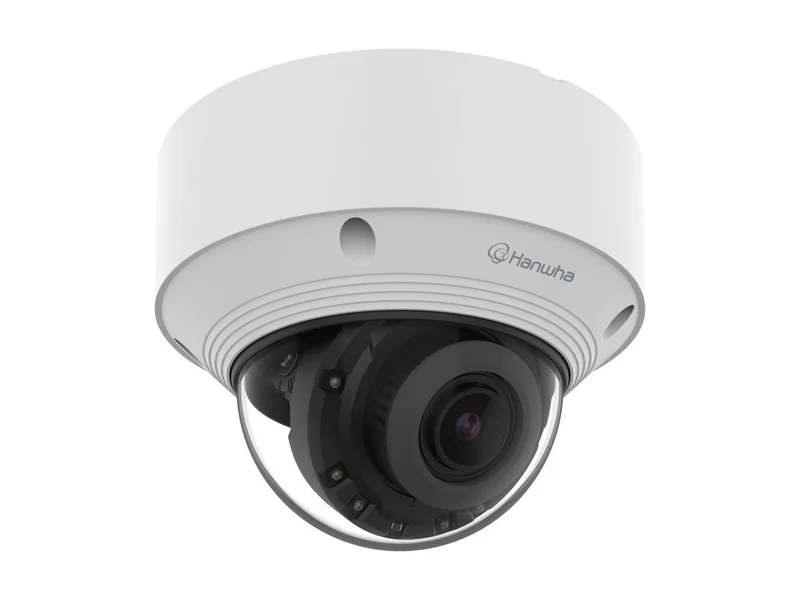

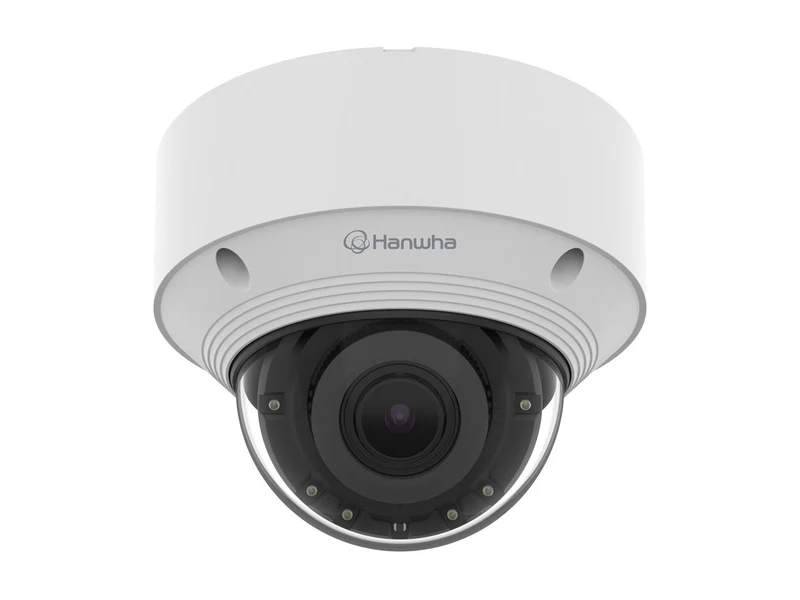

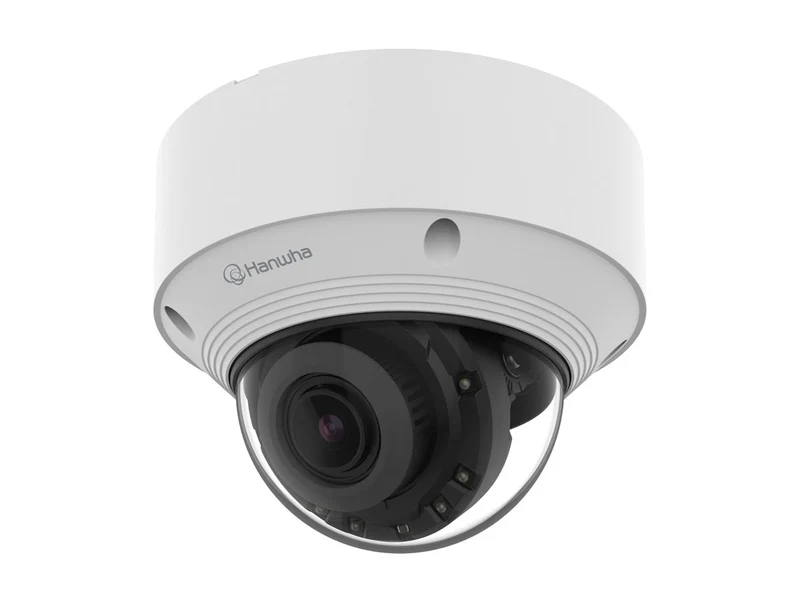

Cámara de Seguridad Hanwha Ext Rated Vandal Dome

Sobre este producto

• 📹 Cámara dome de 2MP con resolución 1920 x 1080 y lente varifocal con auto iris
• 🌙 IR-LED con alcance de 40 m más tecnologías WiseNR II y SSNRV para imagen nítida en oscuridad
• 🧠 Analíticas inteligentes: detección de personas, vehículos, intrusión, merodeo y gestión de filas
• 🔊 Audio integrado y conexión PoE Class 3
• 🌡️ Opera de -40°C a 55°C con humedad hasta 95% RH

Característica	Detalle
Marca	Hanwha Vision
Línea de producto	Hanwha Vision WiseNet Q
Modelo	QNV-C6083R
Fabricante	Hanwha
Flash Memory Installed	1 GB
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	2 GB
Host Interface	USB
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSL, TCP/IP, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line in - terminal block, LAN/power - RJ-45, Micro-HDMI, USB - Micro-USB Type B
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	-35 to +70
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711 u-law, G.726
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Pan / tilt / zoom
Digital Video Capture Resolution	1024 x 768, 1280 x 1024, 1280 x 720, 1280 x 960, 1920 x 1080, 320 x 240, 640 x 360, 640 x 480, 720 x 480, 720 x 576, 800 x 448, 800 x 600
Max Frame Rate	30 frames per second
Max Video Resolution	1920 x 1080
Motion Detection	Yes
Panning Range (degree)	350
Shutter Speed (Max)	1/25000 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Video Modes	1080p
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	PoE Class 3
Power Consumption Operational	9.8 watt
Angular Field of View (D, Max, Degree)	119
Angular Field of View (D, Min, Degree)	36.7
Angular Field of View (H, Max, Degree)	102
Angular Field of View (H, Min, Degree)	32.2
Angular Field of View (V, Max, Degree)	54.2
Angular Field of View (V, Min, Degree)	18.3
Auto Iris Control	DC
Camera Iris	Auto iris
Focal Length Control	Motorized zoom
Focus Modes	Automatic
Factor de forma	Dome
Infrared Distance	131 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6-3.1
Max Focal Length	10.2 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3.2 millimetre
Min Focus Distance	4 ft
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.004 lux - B&W - F1.6 - 30 IRE - shutter 1/30 sec, 0.04 lux - color - F1.6 - shutter 1/30 sec
Humedad de operación	0 - 95% RH (non-condensing)
Optical Zoom	3.2
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	0° / 355° rotation, Alarm function, Auto ICR, Automatic Tracing White (ATW), Automatic White Balance Control (AWC), Backlight Compensation (BLC), Constant Bit Rate (CBR), Digest authentication, Electronic shutter, Entrance / exit detection, Gain Control, Hallway View, Handover, Heat Map, Intrusion detection, Lens Distortion Compensation (LDC), Loitering detection, Manual white balance, Multicast Streaming, Network disconnection trigger, Notification picture to E-mail, Notification picture to FTP, Object Detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, People counting, Person Detection, Privacy Mask Function, Queue management, Reverse function (flip and mirror), Samsung Super Dynamic Range (SSDR), Samsung Super Noise Reduction (SSNRV), Unicast Streaming, User access log, Variable Bit Rate (VBR), Vehicle counting, Vehicle Detection, Vehicle type classification, Virtual Line detection, Wide Dynamic Range (WDR), WiseNR II, WiseStream III support
Cantidad por empaque	1
Alto	4.3 inch
Weight	29.98 ounce
Ancho	5.5 inch
Profundidad	5.5 inch
Color	RAL 9003, White
Color	White
Estándares	AS/NZS CISPR 32 Class A, CAN/CSA-C22.2 No. 62368-1, CISPR-32 Class A, EN 50130-4, EN 55032 Class A, EN 61000-3-2, EN 61000-3-3, EN 62676-4, FCC 47 CFR Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC/EN 60529 IP66, IEC/EN 62262 IK10, IEC/EN 62471, IEC/EN 63000, IEEE 802.1x, IEEE 802.3af, RCM, UKCA, UL 62368-1
