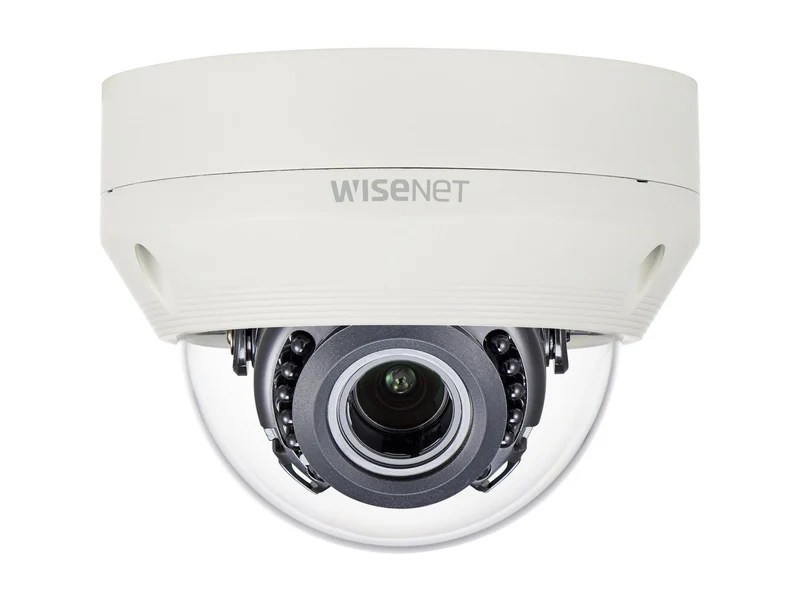

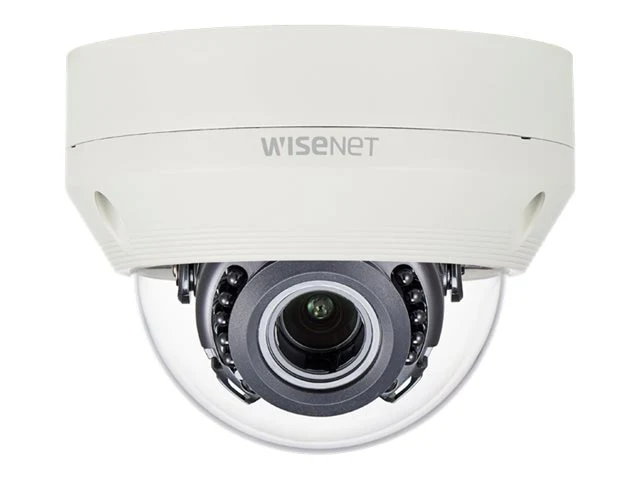

Cámara de Seguridad Hanwha 2 MP Analog Cam

Sobre este producto

• 📹 Cámara dome analógica 2.2MP Full HD 1080p
• 🔍 Lente vari-focal 3.2-10mm (3.1x)
• 🌙 Día/noche (ICR): 0.11 lux a color, 0 lux con IR encendido
• 🎨 WDR 120 dB, SSNR IV y detección de movimiento
• 📼 Salidas composite, AHD, CVI, TVI; alimentación DC 12V / AC 24V
• 🛡️ Carcasa antivandálica para exterior

Característica	Detalle
Marca	Hanwha Techwin
Línea de producto	Hanwha Vision WiseNet HD+
Modelo	HCV-6070R
Fabricante	Hanwha
Connectivity Technology	Wired
Ports	Composite video/AHD/TVI/CVI - BNC
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	0 to 67
Touchscreen	No
Camera Mechanical Design	Fixed
Max Frame Rate	30 frames per second
Motion Detection	Yes
Panning Range (degree)	0 to 350
Shutter Speed (Max)	1/12000 second (time unit)
Shutter Speed (Min)	1 second (time unit)
Video Modes	1080/30p, 1080p
Video Signals	AHD, Composite video, CVI, TVI
Camera Type	Surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 V / AC 24 V
Power Consumption Operational	4.2 watt
Angular Field of View (H, Max, Degree)	110.2
Angular Field of View (H, Min, Degree)	32
Angular Field of View (V, Max, Degree)	55.4
Angular Field of View (V, Min, Degree)	18
Auto Iris Control	DC
Camera Iris	Auto iris
Focal Length Control	Vari-focal
Focus Modes	Manual
Factor de forma	Dome
Indoor/Outdoor	Outdoor
Infrared Distance	98 ft
Infrared LEDs	Yes
Lens Aperture	F/1.6
Max Focal Length	10 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3.2 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0 lux - B&W - infrared LEDs on, 0.11 lux - color - F1.6 - shutter 1/30 sec
Humedad de operación	0 - 90%
Optical Zoom	3.1
Protection	Vandal-proof
Sensor Pixels Effective (H)	1945
Sensor Pixels Effective (V)	1097
Sensor Pixels Total (H)	1945
Sensor Pixels Total (V)	1109
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	2,160,000 pixels
Video Formats	NTSC
Video Input	Color
Alarm Output Quantity	1
Características	Auto gain control, Auto white balance, Backlight Compensation (BLC), Defog, Infrared cut filter, Motion Detection Technology, Privacy Mask Function, Progressive scanning, Samsung Super Noise Reduction (SSNRIV), Wide Dynamic Range (WDR)
Cantidad por empaque	1
Alto	4.2 inch
Weight	25.22 ounce
Ancho	5.4 inch
Profundidad	5.4 inch
Color	Ivory
Color	White
Estándares	IK10, IP66, Plug and Play
