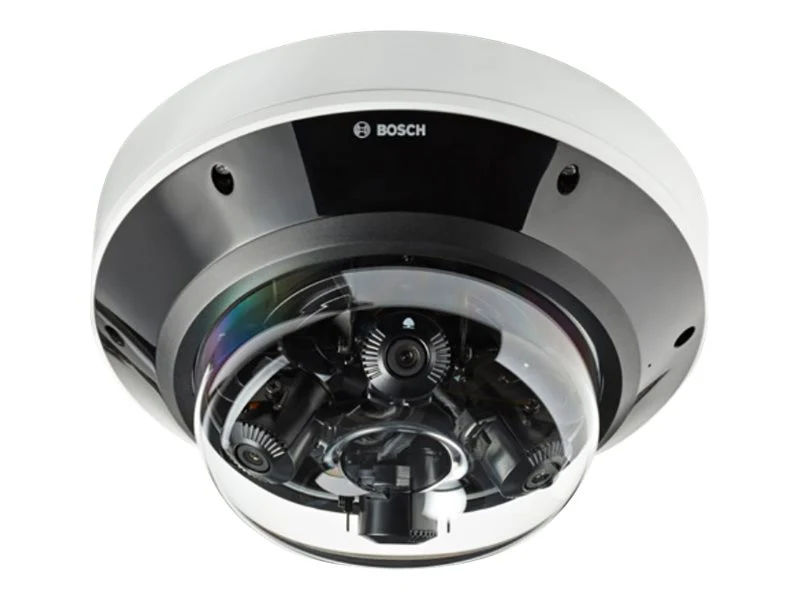

Cámara de Seguridad Bosch FlexiDome multi 7000i IR NDM-7702-AL

Sobre este producto

• 📹 Cámara dome multisensor 4 x 3MP
• 🔍 Control de iris automático
• 🌗 Visión IR para día y noche a color
• 🔊 Audio; compresión MJPEG/H.264/H.265
• 🛡️ Antivandálica y resistente a la intemperie (vandal/weatherproof); interior y exterior

Característica	Detalle
Marca	Bosch
Línea de producto	Bosch FlexiDome multi 7000i IR
Modelo	NDM-7702-AL
Fabricante	Bosch
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, DHCP, FTP, HTTP, HTTPS, ICMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, QOS, RTP, RTSP, SMTP, SNMP 1, SNTP, SSL, TCP/IP, Telnet, TLS, UDP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line in, Audio line out, LAN/power - RJ-45, USB-C (for use with Wi-Fi dongle for setup and commissioning)
Image Sensor Size	4 x 1/2.7"
Image Sensor Type	CMOS
Tilt	0 to 105
Audio Formats	AAC-LC, G.711, L16
Audio Support	Yes
Audio Support Features	Built-in microphone, Two-way audio capability
Camera Mechanical Design	Fixed
Max Frame Rate	30 frames per second
Max Video Resolution	2590 x 1944
Panning Range (degree)	0 to 360
Shutter Speed (Max)	1/15000 second (time unit)
Shutter Speed (Min)	1/30 second (time unit)
Camera Mount Type	Ceiling mount, Wall mount
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	AC 24 V / PoE Plus Class 4
Power Consumption Operational	18.02 watt
Angular Field of View (H, Min, Degree)	62.4
Angular Field of View (V, Min, Degree)	85.6
Auto Iris Control	DC
Camera Iris	Auto iris
Focal Length Control	Motorized zoom
Factor de forma	Dome
Indoor/Outdoor	Indoor, Outdoor
Infrared Distance	98 ft
Infrared LEDs	Yes
Lens Aperture	F/1.9
Max Focal Length	7.7 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	3.7 millimetre
Temp. mín. de operación	-58 degree Fahrenheit
Minimum Illumination	0.012 lux - B&W, 0.091 lux - color
Humedad de operación	5 - 93% (non-condensing)
Optical Zoom	2.1
Protection	Vandal / weatherproof
Sensor Pixels Effective (H)	2592
Sensor Pixels Effective (V)	1944
Sensor Size (metric)	4 x 9.4 mm (1/2.7")
Total Pixels	4 x 3,000,000 pixels
Video Formats	H.264, H.265, MJPEG
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	12m recognize distance (3.7mm lens), 15m identify distance (7.7mm lens), 22m observe distance (3.7mm lens), 30m recognize distance (7.7mm lens), 56m detection distance (3.7mm lens), 56m detection distance (7.7mm lens), 59m observe distance (7.7mm lens), 6m identify distance (3.7mm lens), Automatic electronic shutter, Backlight Compensation (BLC), High Dynamic Range (HDR), Intelligent Video Analysis (IVA), Manual white balance, Noise Reduction, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Privacy Mask Function
Cantidad por empaque	1
Accesorios incluidos	2 x M20 rubber grommets, 2-pin power connector, 3 installer UX labels, 8-pin audio and I/O connector, Mounting bracket, RJ-45 punch-through aid, TR20 Allen key
Alto	4.4 inch
Weight	5.14 lbs
Ancho	8.7 inch
Profundidad	8.7 inch
Color	RAL 9003, White
Color	White
Estándares	CAN/CSA C22.2 No. 60950-22-07, CAN/CSA-C22.2 No. 62368-1, China RoHS, CMIM, FCC, IEC 62676-5, IK10, IP66, NEMA Type 4X, RCM, UKCA, UL, VCCI, WEEE
