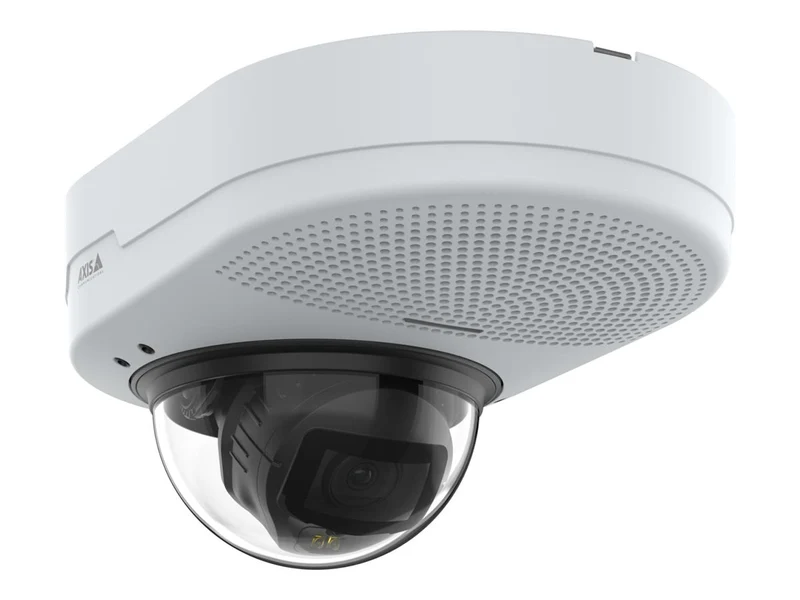

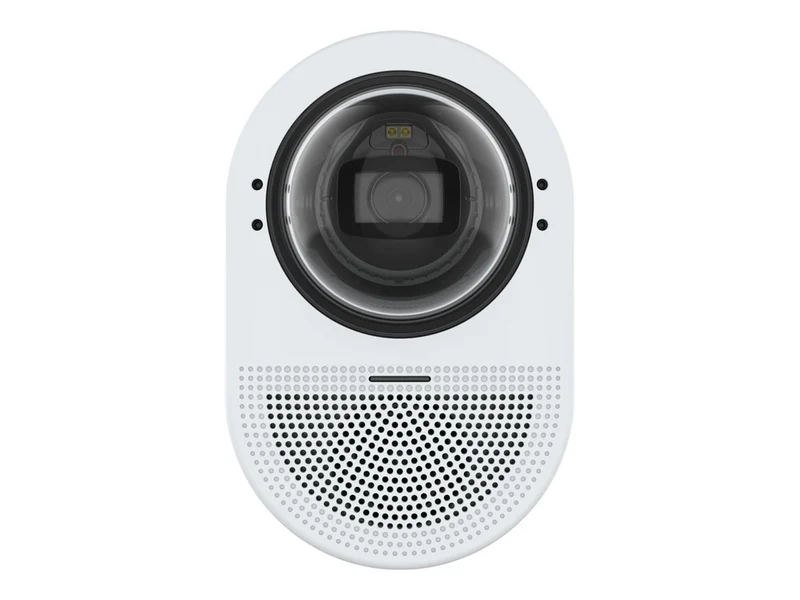

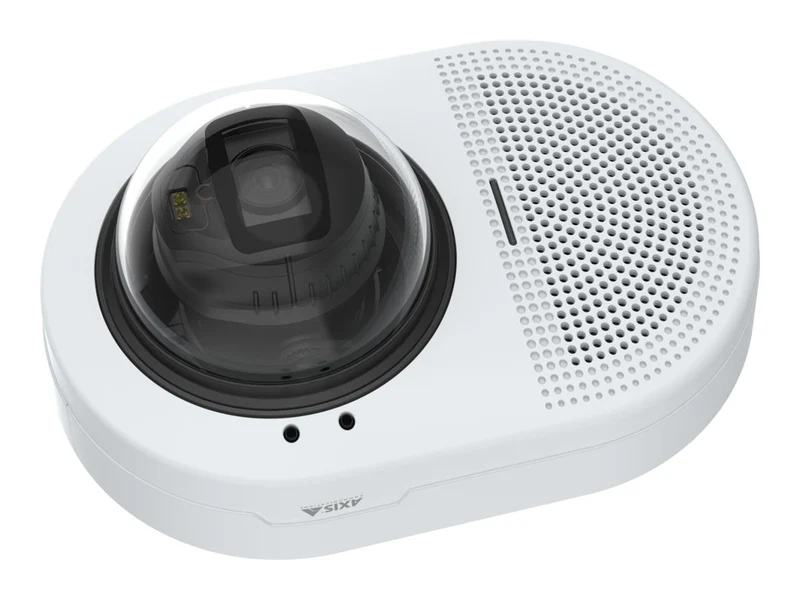

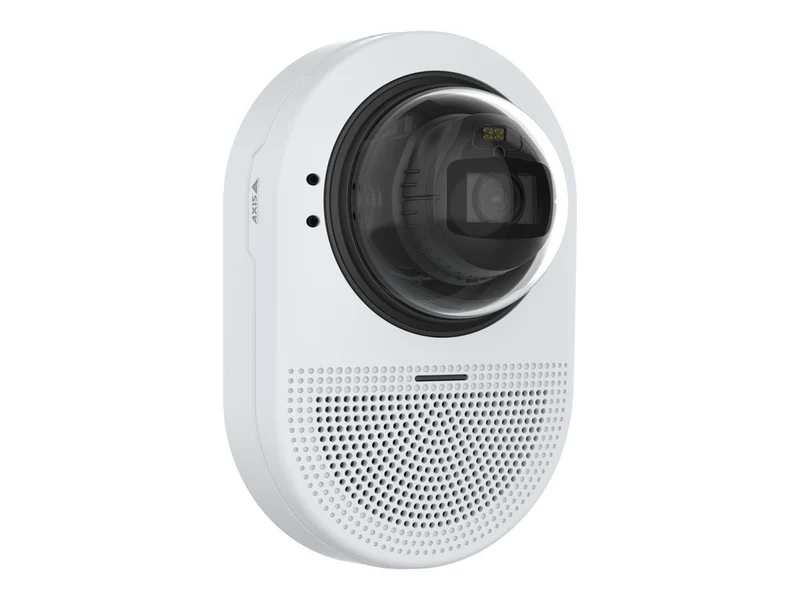

Cámara de Seguridad AXIS Q9307-LV

Sobre este producto

• 📹 Cámara domo de 5 MP (2592 x 1944) con sensor PS RGB CMOS
• 🌙 Tecnología Lightfinder 2.0 para imágenes nítidas en baja luz
• 🔍 Lente varifocal con P-Iris y auto iris para enfoque óptimo a distintas distancias
• 🔌 Alimentación PoE Class 4 sobre LAN 10/100
• 🏠 Diseñada para uso interior con color día y noche (Day&Night)
• 🔒 Soporte de múltiples protocolos de red y cifrado para integración segura

Característica	Detalle
Marca	Axis
Línea de producto	AXIS
Modelo	Q9307-LV
Fabricante	Axis Communications
Flash Memory Installed	8 GB
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	2 GB
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Connectivity Technology	Wired
Ports	Digital input/output - terminal block, LAN/power - RJ-45
Image Sensor Size	1/2.7"
Image Sensor Type	PS RGB CMOS
Tilt	-10 to +80
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support	Yes
Audio Support Features	Built-in four microphones, Built-in speaker, Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 800, 160 x 100, 160 x 120, 160 x 90, 2592 x 1458, 2592 x 1944
Max Frame Rate	30 frames per second
Max Video Resolution	2592 x 1944
Motion Detection	Yes
Panning Range (degree)	-190 to +190
Shutter Speed (Max)	1/33500 second (time unit)
Shutter Speed (Min)	1/5 second (time unit)
Camera Mount Type	Ceiling mount, Wall mount
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	PoE Class 4
Power Consumption Operational	10 watt
Angular Field of View (H, Max, Degree)	104
Angular Field of View (H, Min, Degree)	40
Angular Field of View (V, Max, Degree)	74
Angular Field of View (V, Min, Degree)	29
Auto Iris Control	P-Iris
Camera Iris	Auto iris
Encryption	256-bit AES-XTS, EAP-TLS, MSCHAPv2, PEAP, TLS 1.2, TLS 1.3
Focal Length Control	Vari-focal
Factor de forma	Dome
Indoor/Outdoor	Indoor
Lens Aperture	F/1.3
Max Focal Length	8 millimetre
Temp. máx. de operación	104 degree Fahrenheit
Min Focal Length	3 millimetre
Min Focus Distance	3.3 ft
Temp. mín. de operación	32 degree Fahrenheit
Minimum Illumination	0 lux - B&W - F1.3 - 50 IRE, 0.13 lux - color - F1.3 - 50 IRE
Humedad de operación	10 - 85% RH (non-condensing)
Optical Zoom	2.7
Sensor Size (metric)	9.4 mm (1/2.7")
Total Pixels	5,000,000 pixels
Video Formats	AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input	Color
País	Argentina, Australia, Brazil, China, Europe, India, Japan, Korea, United Kingdom, United States
Características	-190° / +190° rotation, 180° image rotation, 270° image rotation, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 90° image rotation, Acoustic Echo Cancellation (AEC), Adaptive Bitrate (ABR), Aluminum housing, AXIS Object Analytics, Barrel distortion correction, Bit rate control, Brightness control, Brute force delay protection, Compression, Contrast control, Corridor mode, Day/night threshold, Deep learning processing unit (DLPU), Defogging, Digest authentication, Digital PTZ function, Dynamic text, Electronic image stabilization, Exposure mode, Exposure zone, Forensic WDR, Hybrid IR filter, Image mirror, Image overlay, Infrared-cut filter, IR Corrected lens, LED Indicator, Lightfinder 2.0 technology, Low latency mode, Multi-Bitrate (MBR), NAS-Ready, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Password protection, Plastic housing, Polycarbonate bubble, Privacy Mask Function, Remote focus, Remote zoom, Saturation control, Secure Boot, Secure keystore, Sharpness control, Signed firmware, Tone mapping, Variable Bit Rate (VBR), Video streaming indicator, White balance, Zipstream technology
Cantidad por empaque	1
Accesorios incluidos	Cable gaskets, Connector guard, Owner authentication key, Terminal block connector, Torx TR20 bit
Alto	9 inch
Weight	2.76 lbs
Ancho	5.9 inch
Profundidad	4.2 inch
Color	NCS S 1002-B, White
Color	White
Estándares	AS/NZS CISPR 32 Class A, CAN/CSA C22.2 No. 62368-1 Third Edition, CSA, EAL 6+, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 63000:2018, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC/EN 60529 IP44, IEC/EN 62262 IK08, IEC/EN 62471, IEC/EN/UL 62368-1, IEEE 802.3af, IEEE 802.3at, IS 13252, KC, KCC KN32 Class A, KCC KN35, NIST SP500-267, PVC-free, RCM, REACH 1907/2006/CE, RoHS 2011/65/EU, UL/cUL, VCCI Class A
TAA Compliant	Yes
