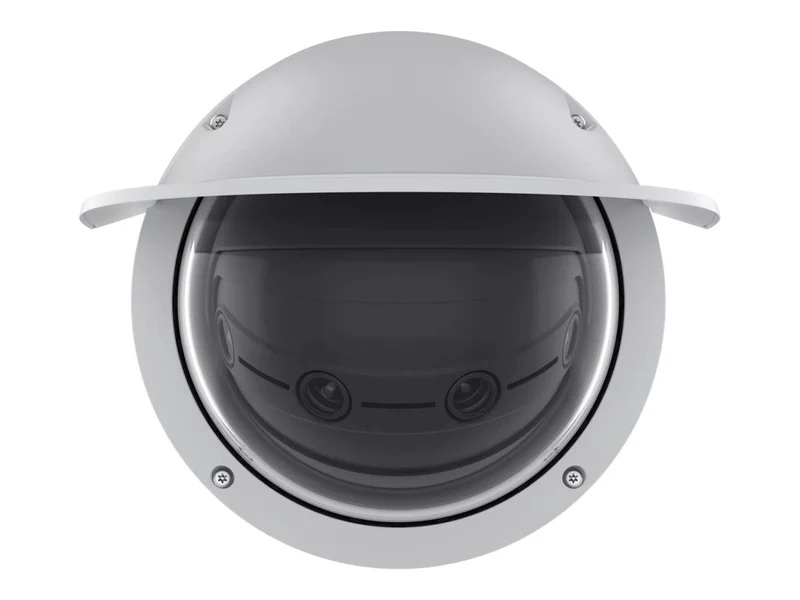

Cámara de Seguridad AXIS Q48 Series Q4809-PVE

Sobre este producto

• 🌐 Cámara de Seguridad AXIS Q48 Series Q4809-PVE: para videovigilancia y seguridad.
• ✅ multi-sensor + pan / tilt / roll
• ✅ color (Day&Night)
• ✅ H.264, H.265, MPEG-4, MPEG-H, MJPEG
• ✅ Panoramic camera

Característica	Detalle
Marca	Axis
Línea de producto	AXIS Q48 Series
Modelo	Q4809-PVE
Fabricante	Axis Communications
Flash Memory Installed	8 GB
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	8 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Connectivity Technology	Wired
Ports	Audio line in - 3.5 mm jack, LAN/power - RJ-45
Image Sensor Size	1/2.3"
Image Sensor Type	PS RGB CMOS
Tilt	20 to 88
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Multi-sensor + pan / tilt / roll
Digital Video Capture Resolution	10240 x 2560, 512 x 256
Max Frame Rate	30 frames per second
Max Video Resolution	10240 x 2560
Motion Detection	Yes
Panning Range (degree)	176
Shutter Speed (Max)	1/100000 second (time unit)
Shutter Speed (Min)	1/2 second (time unit)
Camera Type	Panoramic camera
Night Vision	Yes
Low Voltage Power	PoE Class 4
Power Consumption Operational	9.74 watt
Angular Field of View (H, Min, Degree)	180
Angular Field of View (V, Min, Degree)	45
Camera Iris	Fixed iris
Encryption	EAP-TLS, FIPS 140-2 Level 2, MSCHAPv2, PEAP, TLS 1.2, TLS 1.3
Factor de forma	Dome
Indoor/Outdoor	Outdoor
Lens Aperture	F/1.7
Temp. máx. de operación	122 degree Fahrenheit
Min Focal Length	5 millimetre
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0.03 lux - B&W - F1.7 - 50 IRE, 0.1 lux - color - F1.7 - 50 IRE
Humedad de operación	10 - 100% RH (condensing)
Protection	Vandal / weatherproof
Sensor Size (metric)	11 mm (1/2.3")
Total Pixels	4 x 12,000,000 pixels
Video Formats	H.264, H.265, MJPEG, MPEG-4, MPEG-H
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	>55 dB SNR, 20 video streams, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), Adaptive Bitrate (ABR), Aluminum housing, Auto gain control, Barrel distortion correction, Brightness control, Compression, Contrast control, Control queue, Corridor mode, Day/night shift level, Day/night threshold, Deep learning processing unit (DLPU), Defogging, Digital PTZ function, Dynamic text overlay, Exposure mode, Exposure zone, Forensic WDR, Full duplex audio, Half duplex audio, Human Detection, Image mirror, Image overlay, Infrared-cut filter, Lightfinder 2.0 technology, Line Crossing Detection, Lossless digital zoom, Low latency mode, Multi-Bitrate (MBR), Network speaker pairing, Object stops in area detection, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Polycarbonate bubble, Polygon privacy mask, Saturation control, Sharpness control, Target aperture, Tone mapping, TPM 2.0 module, Variable Bit Rate (VBR), Vehicle Detection, Video streaming indicator, White balance, Wide Dynamic Range (WDR), Zipstream technology
Cantidad por empaque	1
Accesorios incluidos	Cable gaskets, Conduit adapter, Connector guard, Drill hole template, I/O connector, Owner authentication key, Weathershield
Alto	7.7 inch
Weight	7.32 lbs
Ancho	9 inch
Profundidad	9 inch
Color	NCS S 1002-B, White
Color	White
Estándares	AS/NZS CISPR 32 Class A, BFR-free, CAN/CSA C22.2 No. 62368-1 Third Edition, CFR free, CISPR 32 Class A, CISPR 35, Common Criteria EAL4+, CSA, cUL, EAL 6+, ECA, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN 63000:2018, ETSI EN 303 645, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62236-4, IEC/EN 60529 IP66, IEC/EN 62262 IK10, IEC/EN/UL 62368-1, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3at, IP6K9K, IS 13252, ISO 20653, ISO 21207 method B, JEDEC, KC, KS C 9832 Class A, KS C 9835, NEMA TS-2 (2.2.7-2.2.9), NEMA250 Type 4X, NIST SP500-267, PVC-free, RCM, REACH 1907/2006/CE, RoHS 2011/65/EU, UKCA, UL, VCCI Class A, X.509
TAA Compliant	Yes
