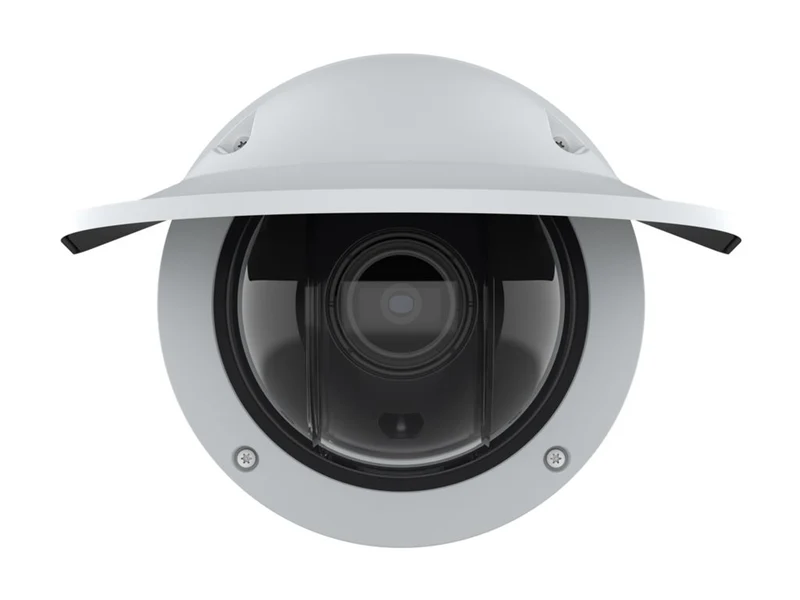

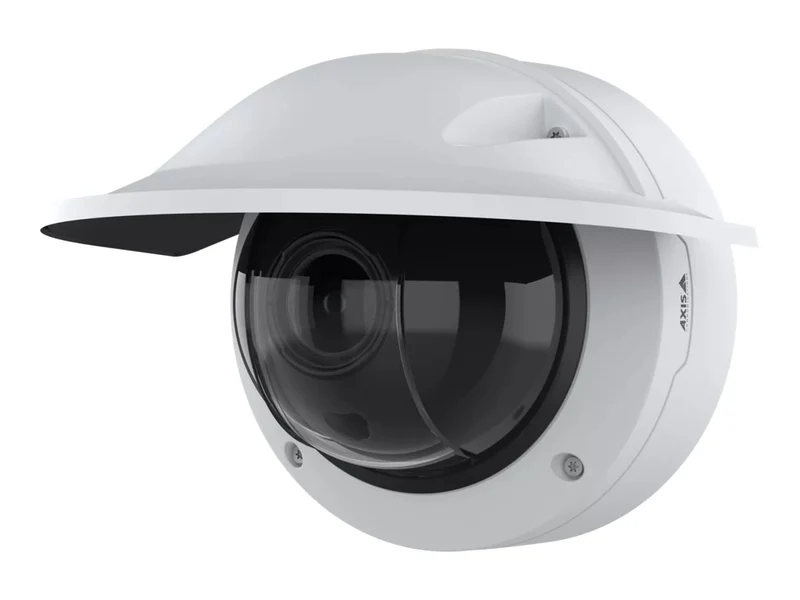

Cámara de Seguridad AXIS Q35 Series Q3546-LVE

Sobre este producto

• 🎥 Cámara de red tipo domo para exterior, 4 MP
• 🖼️ Resolución hasta 2688 x 1512 a 120 fps
• 🛡️ Resistente a vandalismo, impacto y clima (vandal/impact/weather resistant)
• 🌡️ Opera de -50 °C a 55 °C
• 🔎 Lente vari-focal con Digital PTZ y Video Motion Detection
• 🔌 GbE; compresión H.265/AVC; TAA Compliant

Característica	Detalle
Marca	Axis
Línea de producto	AXIS Q35 Series
Modelo	Q3546-LVE
Fabricante	Axis Communications
Flash Memory Installed	8 GB
Memory Cards Supported	SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM instalada	4 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DiffServ, DNS, DNSv6, EAP, FTP, HTTP, HTTPS, ICMP, ICMPv4, ICMPv6, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP, TLS, UDP, UPnP, USGv6, Zeroconf
Connectivity Technology	Wired
Ports	LAN/power - RJ-45
Image Sensor Size	1/1.8"
Image Sensor Type	PS RGB CMOS
Tilt	-42 to +80
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, LPCM, OPUS, PCM
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 800, 2016 x 1512, 2688 x 1512
Max Frame Rate	120 frames per second
Max Video Resolution	2688 x 1512
Motion Detection	Yes
Panning Range (degree)	-180 to +180
Shutter Speed (Max)	1/49500 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 8 - 28 V / PoE Class 4
Angular Field of View (H, Max, Degree)	101.8
Angular Field of View (H, Min, Degree)	44
Angular Field of View (V, Max, Degree)	54
Angular Field of View (V, Min, Degree)	24.6
Auto Iris Control	P-Iris
Encryption	EAP-TLS, FIPS 140-2 Level 1, FIPS 140-3 Level 3, PEAP, PKI
Focal Length Control	Vari-focal
Focus Modes	Remote
Factor de forma	Dome
Indoor/Outdoor	Outdoor
Infrared Distance	197 ft
Infrared LEDs	Yes
Lens Aperture	F/1.1-1.2
Max Focal Length	10 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	4.7 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-58 degree Fahrenheit
Minimum Illumination	0 lux - B&W - F1.1 - 50 IRE - infrared LEDs on, 0.01 lux - color - F1.1 - 50 IRE
Humedad de operación	10 - 100% RH (non-condensing)
Optical Zoom	2.2
Protection	Vandal resistant / impact resistant / weather resistant
Sensor Size (metric)	14.1 mm (1/1.8")
Total Pixels	4,000,000 pixels
Video Formats	AV1, AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input	Color
País	Argentina, Australia, Brazil, China, Europe, Japan, Korea, United Kingdom, United States
Características	>55 dB SNR, 120 dB wide dynamic range, 13m recognize distance (wide), 141m detect distance (tele), 14m identify distance (tele), 16:10 aspect ratio, 16:9 aspect ratio, 180° image rotation, 26m observe distance (wide), 270° image rotation, 28m recognize distance (tele), 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 4:3 aspect ratio, 56m observe distance (tele), 6.4m identify distance (wide), 65m detect distance (wide), 850nm illuminator, 90° image rotation, Adaptive Bitrate (ABR), AI-powered, Alarm event, Area occupancy, ARTPEC-9 chipset, Automatic Gain Control (AGC), Automatic IR-cut filter, Axis Edge Vault, AXIS Object Analytics, Brightness control, Compression, Contrast control, Control queue, Deep learning processing unit (DLPU), Defog, Digital PTZ function, DORI coverage, Electronic Image Stabilizer (EIS), Exposure control, Forensic WDR, Heater, Level grid, Leveling assistant, License Plate Recognition, Lightfinder 2.0 technology, Line-crossing detection, Low latency mode, Multi-Bitrate (MBR), Network Time Security (NTS), Object in area, Object line crossing counting, On-screen directional indicator, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF support, OptimizedIR, Perspective configuration, Pixel Counter Support, Privacy Mask Function, Remote zoom, Repaintable, Scene metadata, Secure Boot, Sharpness control, Signed OS, Time in area, Tone mapping, Tour recording, Vehicle analytics, Video Motion Detection Technology, Video streaming indicator, White balance, Zipstream technology
Cantidad por empaque	1
Accesorios incluidos	Cable gaskets, Connector guard, Owner authentication key, Terminal block connectors, Weathershield
Alto	8.3 inch
Weight	5.2 lbs
Ancho	9.4 inch
Color	NCS S 1002-B, White
Color	Black, White
Estándares	AS/NZS CISPR 32 Class A, BFR-free, BSI, CAN/CSA-C22.2 No. 62368-1 Third Edition, CFR free, CISPR 32 Class A, CISPR 35, EMC, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN/IEC 63000:2018, ETSI EN 303 645, FCC, FCC Part 15 B Class A, ICES, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62236-4, IEC/EN 60529, IEC/EN 62262 IK10, IEC/EN 62471, IEC/EN/UL 62368-1 Third Edition, IEEE 802.1ae, IEEE 802.1x, IK10, IP66, IP69, IP6K9K, ISO 20653, ISO 21207 method B, JEDEC, JS709, KC, KS C 9832 Class A, KS C 9835, NEMA 250 Type 4X, NIST SP500-267, PVC-free, RCM, REACH, RoHS 2011/65/EU Amendment 2015/863, SCIP, UL, VCCI, VCCI Class A, WEEE, X.509
TAA Compliant	Yes
