Cámara de Seguridad AXIS Q18 Series Q1809-LE

Sobre este producto

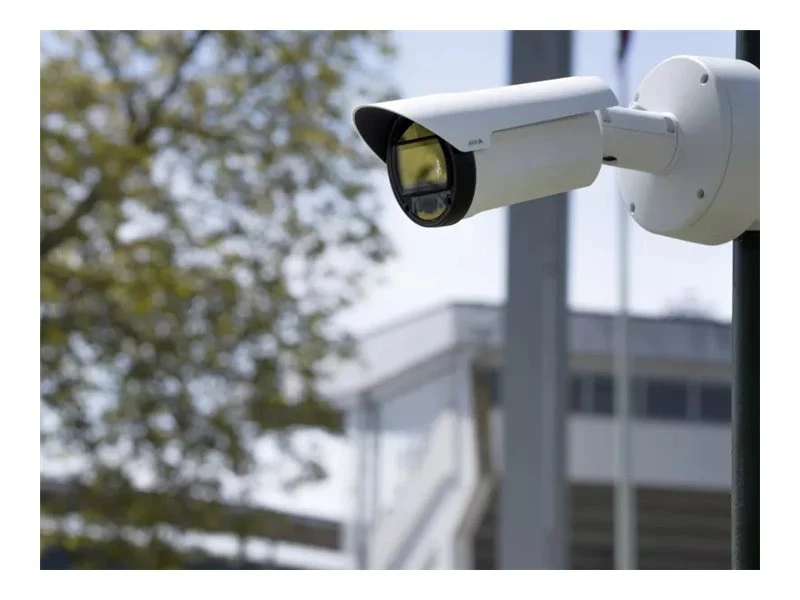

• 🎥 Cámara bullet AXIS Q1809-LE de 41 MP con resolución 8K para vigilancia en exteriores
• 🌡️ Operación de -40°C a 55°C y humedad de 10 a 100% RH para condiciones extremas
• 🔐 Protocolos cifrados TLS 1.2 y FIPS 140-3 Level 3 contra accesos no autorizados
• 🌗 Wide Dynamic Range (WDR) y estabilización electrónica de imagen para mejor calidad
• 🔊 Audio y múltiples entradas/salidas de alarma que amplían las capacidades de monitoreo
• 🇺🇸 TAA Compliant con enfoque automático y control P-Iris

Característica	Detalle
Marca	Axis
Línea de producto	AXIS Q18 Series
Modelo	Q1809-LE
Fabricante	Axis Communications
Flash Memory Installed	8 GB
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	8 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, CDP, CIFS, DDNS, DHCPv4, DHCPv6, DNS, DNSv6, FTP, HTTP, HTTPS, ICMPv4, ICMPv6, IGMP, IPv4, IPv6, LLDP, MDNS, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Connectivity Technology	Wired
Ports	Audio line-in/microphone - 3.5 mm jack, LAN/power - RJ-45
Image Sensor Size	4/3"
Image Sensor Type	PS RGB CMOS
Tilt	0 to -90
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support	Yes
Audio Support Features	10-band graphic equalizer, Microphone pairing, Speaker pairing
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	7424 x 5568, 7680 x 3240, 7680 x 4320
Max Frame Rate	30 frames per second
Max Video Resolution	7424 x 5568
Motion Detection	Yes
Panning Range (degree)	-180 to +180
Shutter Speed (Max)	1/45500 second (time unit)
Shutter Speed (Min)	2 second (time unit)
Video Modes	8K
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 10 - 28 V / AC 20 - 24 V / PoE class 6
Power Consumption Operational	17.6 watt
Angular Field of View (H, Max, Degree)	21
Angular Field of View (H, Min, Degree)	6.6
Angular Field of View (V, Max, Degree)	15
Angular Field of View (V, Min, Degree)	4
Auto Iris Control	P-Iris
Encryption	EAP-TLS, FIPS 140-3 Level 3, MSCHAPv2, PEAP, TLS 1.2, TLS 1.3
Focal Length Control	Vari-focal
Focus Modes	Automatic
Factor de forma	Bullet
Indoor/Outdoor	Outdoor
Infrared Distance	328 ft
Infrared LEDs	Yes
Lens Aperture	F/4.0
Max Focal Length	150 millimetre
Temp. máx. de operación	131 degree Fahrenheit
Min Focal Length	50 millimetre
Min Focus Distance	16.4 ft
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - IR, 0.04 lux - B&W - F4.0 - 50 IRE, 0.2 lux - color - F4.0 - 50 IRE
Humedad de operación	10 - 100% RH (condensing)
Optical Zoom	3
Protection	Weather resistant / impact resistant
Sensor Size (metric)	33.9 mm (4/3")
Total Pixels	41,000,000 pixels
Video Formats	AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
País	Argentina, Australia, Brazil, China, European Union, Japan, United Kingdom, United States
Características	16:9 aspect ratio, 20 video streams, 21:9 aspect ratio, 2D digital noise reduction (DNR), 3D digital noise reduction (DNR), 4:3 aspect ratio, 850nm illuminator, Active tampering alarm, Adaptive Bitrate (ABR), Automatic Gain Control (AGC), Barrel distortion correction, Brightness control, Brute force delay protection, Compression, Contrast control, Day/night threshold, Deep learning processing unit (DLPU), Defog, Digest authentication, Digital PTZ function, DORI coverage, Dynamic text overlay, Electronic Image Stabilizer (EIS), Exposure mode, Exposure zone, Image mirror, Image overlay, Infrared-cut filter, Lightfinder 2.0 technology, Low latency mode, Multi-Bitrate (MBR), Network Time Security (NTS), ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Password protection, Pixel Counter Support, Polygon privacy mask, Privacy Mask Function, Remote focus, Remote zoom, Saturation control, Secure Boot, Sharpness control, Spectrum visualizer, Text overlay, Tone mapping, Variable Bit Rate (VBR), Video streaming indicator, White balance, Wide Dynamic Range (WDR), Zipstream technology
Cantidad por empaque	1
Accesorios incluidos	Cable gaskets, Connector guard, Owner authentication key, Terminal block connectors
Alto	7.2 inch
Weight	7.05 lbs
Ancho	7.2 inch
Profundidad	16.2 inch
Color	Black, NCS S 1002-B, NCS S 9000-N, White
Color	Black, White
Estándares	AS/NZS CISPR 32 Class A, BFR-free, CAN/CSA C22.2 No. 62368-1 Third Edition, CFR free, CISPR 32 Class A, CISPR 35, cUL, EAC, EAL 6+, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-6-1, EN 61000-6-2, EN 63000:2018, ETSI EN 303 645, FCC Part 15 B Class A, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62236-4, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, IEC/EN 62471, IEC/EN/UL 62368-1 Third Edition, IEEE 802.1ae, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3at, IEEE 802.3bt, IK08, NEMA 250 Type 4X, NIST SP500-267, PVC-free, RCM, REACH 2006/1907, RoHS 2011/65/EU, UL, VCCI, VCCI Class A, X.509
Certificado ENERGY STAR	No
Cumple EPEAT	No
TAA Compliant	Yes
TCO Certified	No
