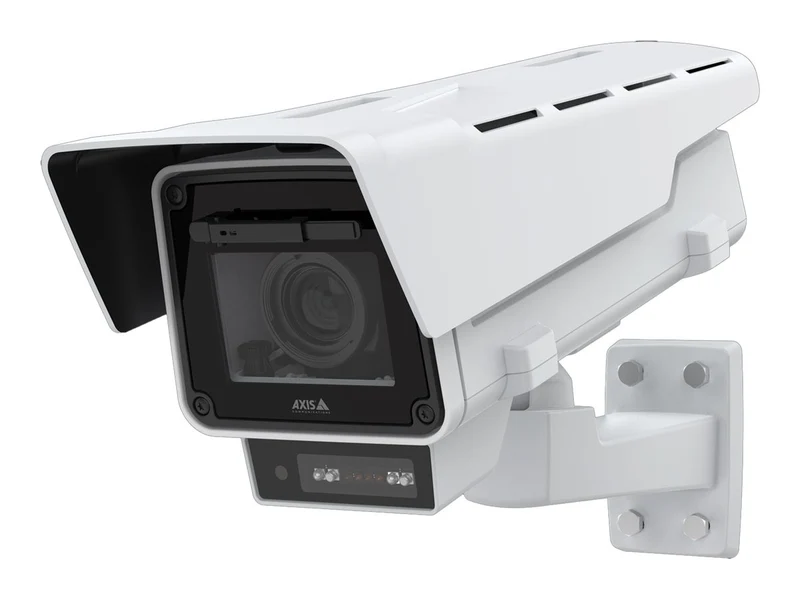

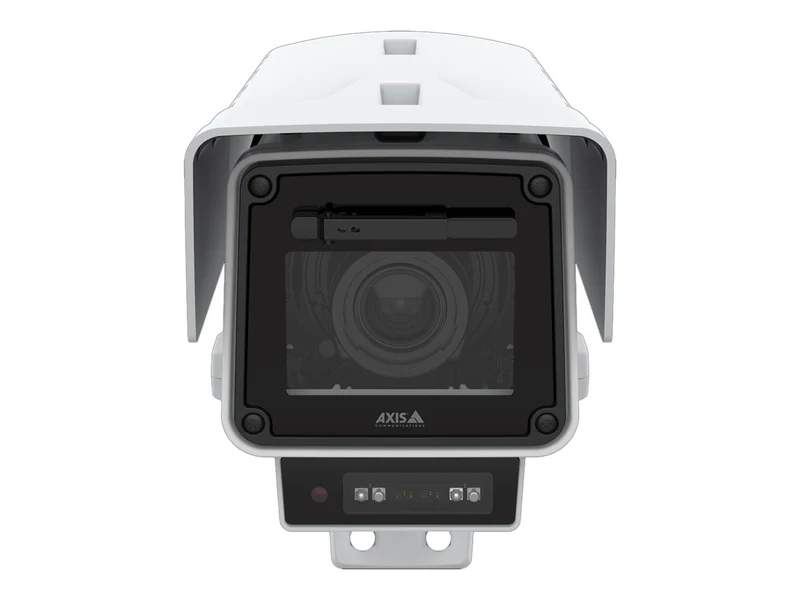

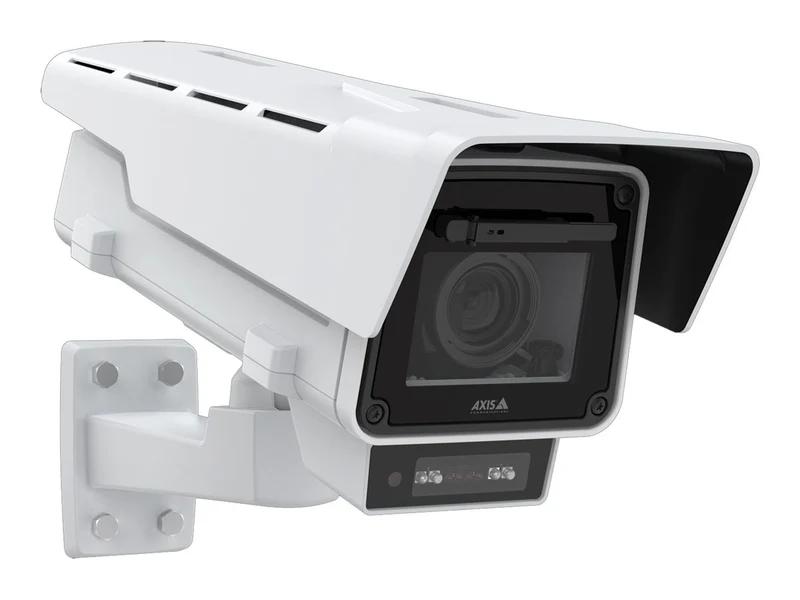

Cámara de Seguridad AXIS Q1656-LE

Sobre este producto

• 📹 Cámara tipo box de 4MP para exteriores con excelente calidad de imagen incluso en baja luz
• 🧠 Analíticas potentes basadas en deep learning ejecutadas en el borde (SoC Axis)
• 🔍 Montura CS para lente intercambiable según la necesidad de instalación
• 🗜️ Amplia compresión H.264 / H.265 / MJPEG y audio integrado
• 🔌 Alimentación 28V / PoE Plus Class 4
• 🌡️ Diseño resistente al clima para exteriores

Característica	Detalle
Marca	Axis
Línea de producto	AXIS
Modelo	Q1656-LE
Fabricante	Axis Communications
Flash Memory Installed	8 GB
Memory Cards Supported	SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM instalada	2 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, CIFS, DDNS, DHCP, DNS, EAP, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, QOS, RTCP, RTP, RTSP, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SRTP, SSH, TCP/IP, TLS, UDP/IP, UPnP, USGv6
Connectivity Technology	Wired
Ports	Audio line out - 3.5 mm jack, Audio line-in/microphone - 3.5 mm jack, LAN/power - RJ-45, Serial RS-485/RS-422 - terminal block
Image Sensor Size	1/1.8"
Image Sensor Type	PS CMOS
Audio Formats	AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Control Interface	RS-422, RS-485
Digital Video Capture Resolution	160 x 120, 160 x 90, 2016 x 1512, 2688 x 1512
Max Frame Rate	60 frames per second
Max Video Resolution	2688 x 1512
Motion Detection	Yes
Shutter Speed (Max)	1/47500 second (time unit)
Shutter Speed (Min)	1 second (time unit)
Video Capture	2688 x 1512 @ 60 fps
Camera Mount Type	Wall mount
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 10 - 28 V / PoE Plus Class 4
Angular Field of View (H, Max, Degree)	113
Angular Field of View (H, Min, Degree)	47
Angular Field of View (V, Max, Degree)	60
Angular Field of View (V, Min, Degree)	27
Auto Iris Control	P-Iris
Focal Length Control	Motorized zoom
Focus Modes	Automatic
Factor de forma	Box
Indoor/Outdoor	Outdoor
Infrared Distance	164 ft
Infrared LEDs	Yes
Lens Mount	CS-mount
Max Focal Length	10 millimetre
Temp. máx. de operación	140 degree Fahrenheit
Min Focal Length	3.9 millimetre
Min Focus Distance	19.7 inch
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - IR, 0.01 lux - B&W - F1.5 - 50 IRE, 0.05 lux - color - F1.5 - 50 IRE
Humedad de operación	10 - 100% RH (condensing)
Optical Zoom	2.5
Protection	Weatherproof
Sensor Size (metric)	14.1 mm (1/1.8")
Total Pixels	4,000,000 pixels
Video Formats	H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 AVC, MPEG-4 Part 10, MPEG-H Part 2
Video Input	Color
Características	180° image rotation, 270° image rotation, 90° image rotation, Adaptive Bitrate (ABR), Audio Detection, Audio Noise Reduction, Brightness control, Brute force delay protection, Constant Bit Rate (CBR), Contrast control, Corridor mode, Defog, Digital PTZ function, Distortion correction function, Electronic image stabilization, Exposure control, Exposure zone, Forensic WDR, Heater, Human Detection, Image mirror, Image overlay, Infrared-cut filter, IP address filtering, Lightfinder 2.0 technology, Line Crossing Detection, Multi-streaming, Notification picture to E-mail, Notification picture to FTP, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Pelco Protocol, Pixel Counter Support, Polygon privacy mask, Remote Back Focus, Remote focus, Saturation control, Secure Boot, Signed firmware, Text overlay, TPM 2.0 module, Variable Bit Rate (VBR), Vehicle Detection, White balance, Window wiper, Zipstream technology
Cantidad por empaque	1
Accesorios incluidos	Connector kit, Resistorx T20 tool, Sunshield, Wall mount kit
Alto	7.2 inch
Weight	9.7 lbs
Ancho	6.3 inch
Profundidad	15.9 inch
Color	White
Color	White
Estándares	AS/NZS CISPR 32 Class A, BFR-free, CAN ICES-3(B)/NMB3(B), CISPR 24, CISPR 35, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 B Class A, IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62236-4, IEC 62471, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262 IK10, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEEE 802.1x, IEEE 802.3af, IEEE 802.3at, IK08, IK10, ISO 21207 method B, KS C 9547, KS C 9815, KS C 9832 Class A, KS C 9835, NEMA TS-2, NEMA250 Type 4X, NIST SP500-267, PVC-free, RCM, VCCI Class A
