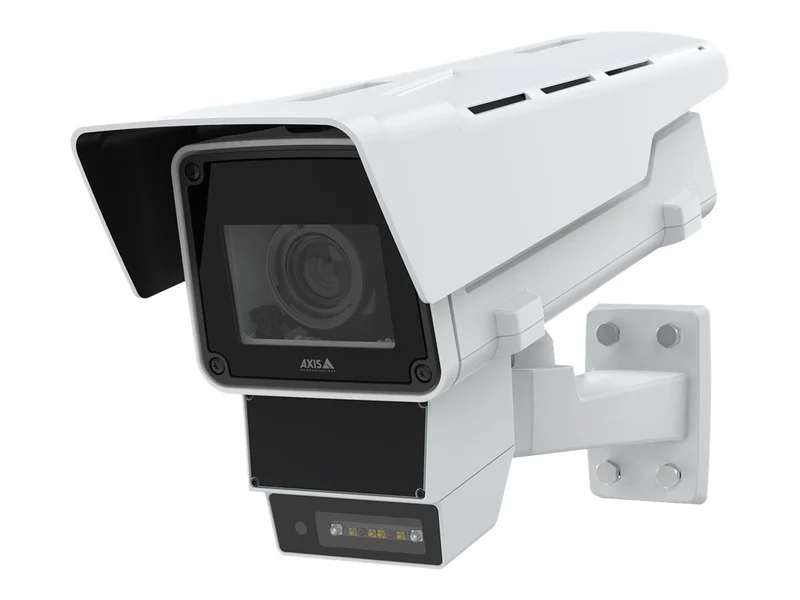

Cámara de Seguridad AXIS Q1656-DLE

Sobre este producto

• 🌐 Cámara de Seguridad AXIS Q1656-DLE: para videovigilancia y seguridad.
• ✅ weather resistant / impact resistant
• ✅ MPEG-4 Part 10, AVC, H.265, MPEG-H Part 2, HEVC, MJPEG, H.264B, H.264M, H.264H
• ✅ 28 V / PoE Plus Class 4
• ✅ Network surveillance camera

Característica	Detalle
Marca	Axis
Línea de producto	AXIS
Modelo	Q1656-DLE
Fabricante	Axis Communications
Flash Memory Installed	8 GB
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
RAM instalada	2 GB
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	ARP, Bonjour, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SOCKS, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6
Connectivity Technology	Wired
Ports	Audio line out - 3.5 mm jack, Audio line-in/microphone - 3.5 mm jack, LAN/power - RJ-45, Serial RS-485/RS-422 - terminal block
Image Sensor Size	1/1.8"
Image Sensor Type	PS RGB CMOS
Touchscreen	No
Audio Formats	AAC-LC, ADPCM, G.711, G.726, LPCM, OPUS, PCM
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Control Interface	RS-422, RS-485
Digital Video Capture Resolution	160 x 120, 160 x 90, 2016 x 1512, 2688 x 1512
Max Frame Rate	60 frames per second
Max Video Resolution	2688 x 1512
Motion Detection	Yes
Shutter Speed (Max)	1/47500 second (time unit)
Shutter Speed (Min)	1 second (time unit)
Video Capture	2688 x 1512 @ 30 fps, 2688 x 1512, WDR off @ 60 fps
Camera Mount Type	Wall mount
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 10 - 28 V / PoE Plus Class 4
Angular Field of View (H, Max, Degree)	96
Angular Field of View (H, Min, Degree)	44
Angular Field of View (V, Max, Degree)	63
Angular Field of View (V, Min, Degree)	26
Auto Iris Control	P-Iris
Focal Length Control	Vari-focal
Focus Modes	Automatic
Factor de forma	Box
Indoor/Outdoor	Outdoor
Infrared Distance	125 ft
Infrared LEDs	Yes
Lens Aperture	F/1.5
Lens Mount	I-CS-mount
Max Focal Length	10 millimetre
Temp. máx. de operación	140 degree Fahrenheit
Min Focal Length	3.9 millimetre
Min Focus Distance	1.6 ft
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0 lux - IR, 0.01 lux - B&W, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE, 0.02 lux - B&W, Lightfinder 2.0 - F1.5 - 50 IRE, 0.05 lux - color, Forensic WDR and Lightfinder 2.0 - F1.5 - 50 IRE, 0.1 lux - color, Lightfinder 2.0 - F1.5 - 50 IRE
Humedad de operación	10 - 100% RH (condensing)
Optical Zoom	2.5
Protection	Weather resistant / impact resistant
Sensor Size (metric)	14.1 mm (1/1.8")
Total Pixels	4,000,000 pixels
Video Formats	AVC, H.264B, H.264H, H.264M, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input	Color
País	Australia, European Union, United Kingdom, United States
Características	Access Control, Adaptive Bitrate (ABR), Audio Noise Reduction, Auto gain control, Axis device ID, Axis Edge Vault, AXIS Object Analytics, Brightness control, Brute force delay protection, Built-in LED illuminator, Centralized certificate management, Compression, Contrast control, Cross Line Detection, Day/night threshold, Deep learning processing unit (DLPU), Defogging, Digest authentication, Dynamic text, Electronic image stabilization, Exposure mode, Exposure zone, Forensic WDR, Frequency Modulated Continuous Wave (FMCW) radar sensor, Full duplex audio, Heater, HTTPs encryption, Image overlay, Infrared-cut filter, IP address filtering, IR Corrected lens, Lightfinder 2.0 technology, Low latency mode, Memory card encryption, Multi-Bitrate (MBR), Object classification, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Password protection, Person Detection, Pixel Counter Support, Polygon privacy mask, Remote Back Focus, Remote focus, Remote zoom, Saturation control, Secure Boot, Secure keystore, Signed firmware, Signed video, Speed detection, Tone mapping, User access log, VAPIX support, Variable Bit Rate (VBR), Vehicle Detection, Video streaming indicator, White balance, Zipstream technology
Cantidad por empaque	1
Accesorios incluidos	AXIS T94Q01A Wall Mount, Connector kit, Resistorx T20 tool, Sunshield
Alto	9.2 inch
Weight	11.02 lbs
Ancho	6.3 inch
Profundidad	15.9 inch
Color	NCS S 1002-B, White
Color	White
Estándares	AS/NZS CISPR 32 Class A, BFR-free, CFR free, CISPR 24, CISPR 35, EAL 4+, EN 301 489-3, EN 301489-1, EN 305 550, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, EN 62311, FCC Part 15 B Class A, FCC Part 15 Subpart C, FIPS 140-2 Level 2, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 62236-4, IEC 62471, IEC/EN 60529 IP66, IEC/EN 62262 IK08, IEC/EN/UL 60950-22, IEC/EN/UL 62368-1, IEEE 802.1ar, IEEE 802.1x, IEEE 802.3at, IK08, IP66, ISO 21207 method B, KS C 9547, KS C 9815, KS C 9832 Class A, KS C 9835, NEMA TS-2 (2.2.7-2.2.9), NEMA250 Type 4X, NIST SP500-267, PVC-free, TLS v1.2, TLS v1.3, VCCI Class A, X.509
