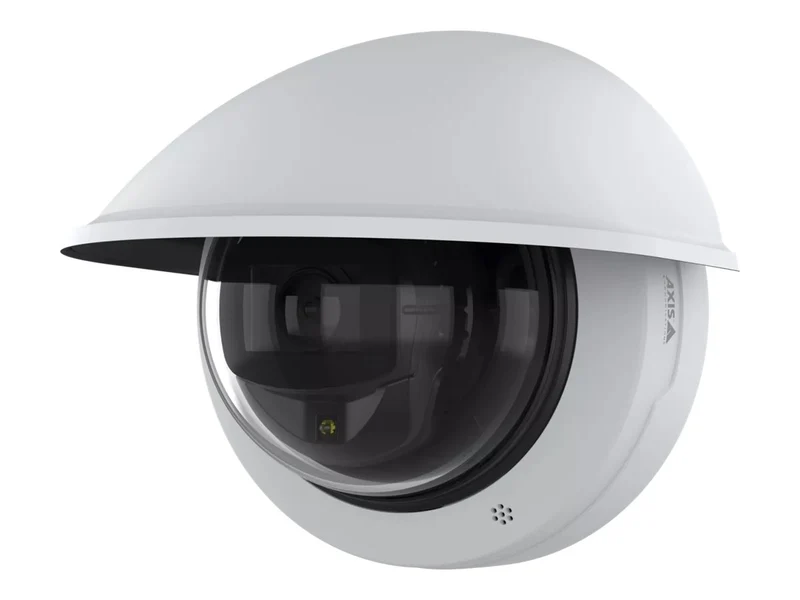

Cámara de Seguridad AXIS M42 Series M4228-LVE

Sobre este producto

• 📹 Cámara de red tipo domo AXIS M4228-LVE para videovigilancia en exterior.
• 🎥 Resolución hasta 3840 x 2160 (4K / 8 MP) con imágenes claras y detalladas.
• 🌙 LED infrarrojo dual y Lightfinder 2.0 para visibilidad día y noche.
• 🔍 Lente varifocal con campo de visión ajustable de 38° a 100° horizontal y 20° a 52° vertical.
• 🛡️ Protección IP66 (clima) e IK10 (vandalismo) con audio, analítica de video y cumplimiento TAA.
• 🌡️ Rango operativo de -30 °C a 50 °C; codecs H.264, H.265 (HEVC) y MJPEG.

Característica	Detalle
Marca	Axis
Línea de producto	AXIS M42 Series
Modelo	M4228-LVE
Fabricante	Axis Communications
Flash Memory Installed	8 GB
Memory Cards Supported	SD Memory Card, SDHC Memory Card, SDXC Memory Card
RAM instalada	2 GB
Network Interface	Ethernet 10Base-T/100Base-TX
Protocols	ARP, Bonjour, CDP, CIFS, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, ICMP, IGMP, IGMPv2, IGMPv3, IPv4, IPv6, LLDP, MQTT, NTCIP, NTP, NTS, QOS, RTCP, RTP, RTSP, RTSPS, SFTP, SMB, SMTP, SNMP 1, SNMP 2c, SNMP 3, SRTP, SSH, Syslog, TCP/IP, TLS, UDP/IP, UPnP, USGv6, Zeroconf
Connectivity Technology	Wired
Ports	LAN/power - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	PS RGB CMOS
Tilt	-10 to 65
Touchscreen	No
Audio Support	Yes
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	2592 x 1944, 320 x 240, 3840 x 2160, 640 x 360
Max Frame Rate	30 frames per second
Max Video Resolution	3840 x 2160
Motion Detection	Yes
Panning Range (degree)	180
Shutter Speed (Max)	2 second (time unit)
Shutter Speed (Min)	1/16000 second (time unit)
Video Modes	4K
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	PoE Class 3
Power Consumption Operational	12.9 watt
Tipo de fuente	Power injector
Angular Field of View (H, Max, Degree)	100
Angular Field of View (H, Min, Degree)	38
Angular Field of View (V, Max, Degree)	52
Angular Field of View (V, Min, Degree)	20
Power Device Form Factor	External
Focal Length Control	Vari-focal
Focus Modes	Automatic
Factor de forma	Dome
Indoor/Outdoor	Outdoor
Infrared LEDs	Yes
Lens Aperture	F/1.6-2.7
Max Focal Length	7.2 millimetre
Temp. máx. de operación	122 degree Fahrenheit
Min Focal Length	3.2 millimetre
Min Focus Distance	3.3 ft
Temp. mín. de operación	-22 degree Fahrenheit
Minimum Illumination	0 lux - infrared LEDs on, 0.03 lux - color - F1.6 - 50 IRE, 0.14 lux - color - F1.6 - 50 IRE
Protection	Vandal resistant / weather resistant
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	8,000,000 pixels
Video Formats	AVC, H.264, H.265, HEVC, MJPEG, MPEG-4 Part 10, MPEG-H Part 2
Video Input	Color
País	Argentina, Australia, Brazil, Europe, Japan, Korea, United Kingdom, United States
Características	>55 dB SNR, 180° Rotation, Acoustic sensor, Adaptive Bitrate (ABR), AI-powered, Audio analytics, Automatic IR-cut filter, AXIS Audio Analytics, Axis Edge Vault, AXIS Object Analytics, Brightness control, Compression, Contrast control, Deep learning processing unit (DLPU), Digital PTZ function, Exposure control, Forensic WDR, Human analytics, Image overlay, Infrared-cut filter, IR Corrected lens, Lightfinder 2.0 technology, Line-crossing detection, Low latency mode, Multi-Bitrate (MBR), Object in area, ONVIF (Profile G) support, ONVIF (Profile M) support, ONVIF (Profile S) support, ONVIF (Profile T) support, OptimizedIR, Plastic housing, Polycarbonate bubble, Privacy Mask Function, PVC Free, Remote focus, Remote zoom, Saturation control, Secure Boot, Sharpness control, Signed OS, Time in area, Variable Bit Rate (VBR), Vehicle analytics, Video streaming indicator, White balance, Zipstream technology
Cantidad por empaque	1
System Requirements Details	ARTPEC-8
Accesorios incluidos	Cable gasket, Connector guard, Owner authentication key, Weathershield
Alto	3.1 inch
Weight	19.05 ounce
Ancho	4.7 inch
Profundidad	4.7 inch
Color	NCS S 1002-B, White
Color	Black, White
Estándares	AS/NZS CISPR 32 Class A, BSI, CAN/CSA C22.2 No. 62368-1-1, CC EAL6+, CFR free, CISPR 32 Class A, CISPR 35, CSA, Directive 2011/65/EU, EAC, EN 303 645, EN 50121-4, EN 55032 Class A, EN 55035, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, ETSI EN 303 645, FCC Part 15 B Class A, FIPS 140-2 Level 2, FIPS 140-3 Level 3, ICES, ICES-3(A)/NMB-3(A), IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-27, IEC 60068-2-6, IEC 60068-2-78, IEC 60825-1 Class 1, IEC 62236-4, IEC 63000:2018, IEC/EN 60529 IP66, IEC/EN 60529 IP67, IEC/EN 62262, IEC/EN 62471, IEC/EN/UL 62368-1, IEEE 802.1x, IK10, IP66, ISO 12944-6, ISO 21207, KS C 9832 Class A, KS C 9835, NEMA 250 Type 4X, NEMA TS-2, NIST SP500-267, RCM, REACH, RoHS, UKCA, UL/cUL, VCCI, VCCI Class A
TAA Compliant	Yes
