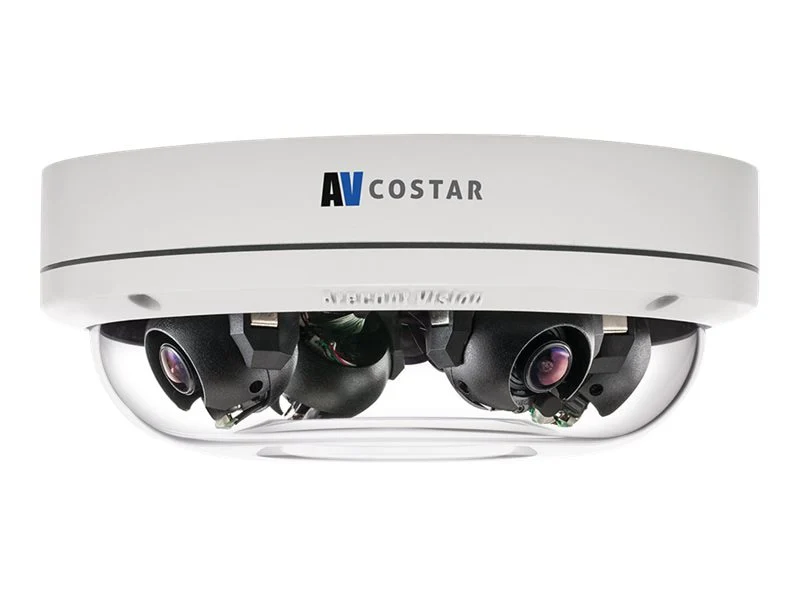

Cámara de Seguridad Arecont ConteraIP Omni LX AV20576DN-28

Sobre este producto

• 📹 Cámara multi-sensor: 4 x 5 MP (megapíxeles)
• 🔧 Plataforma flexible y a prueba de futuro: sensores movibles en riel magnético de 70+ puntos
• 🎛️ Gimbals de 3 ejes y lentes modulares intercambiables de enfoque remoto
• 🌦️ Domo antivandálico / a prueba de intemperie (vandal / weatherproof) para exterior
• 🎥 Compresión MJPEG, H.264, H.265, MPEG-4 Part 10 con audio
• 🔌 Alimentación 48 V / AC 24 V / PoE Plus, montaje M12

Característica	Detalle
Marca	Arecont
Línea de producto	Arecont ConteraIP Omni LX
Modelo	AV20576DN-28
Fabricante	ARECONTVISION
Memory Cards Supported	microSD Card, microSDHC Card, microSDXC Card
Network Interface	Ethernet 10Base-T/100Base-TX/1000Base-T
Protocols	DDNS, DHCP, FTP, HTTP, HTTPS, IPv4, IPv6, NTP, QOS, RTCP, RTP, RTSP, SMTP, SNMP, SSL, TCP/IP, UPnP
Connectivity Technology	Wired
Ports	Audio line in, Audio line out, LAN/power - RJ-45
Image Sensor Size	1/2.8"
Image Sensor Type	CMOS
Tilt	90
Touchscreen	No
Audio Formats	G.711, PCM
Audio Support	Yes
Audio Support Features	Two-way audio capability
Camera Mechanical Design	Fixed
Digital Video Capture Resolution	1280 x 720, 1280 x 960, 1296 x 972, 1600 x 1200, 1920 x 1080, 2048 x 153, 2304 x 1296, 2560 x 1440, 2592 x 1944, 640 x 480, 800 x 600
Max Frame Rate	15 frames per second
Max Video Resolution	2592 x 1944
Motion Detection	Yes
Panning Range (degree)	360
Camera Mount Type	Ceiling mount, Wall mount
Camera Type	Network surveillance camera
Night Vision	Yes
Low Voltage Power	DC 12 - 48 V / AC 24 V / PoE Plus
Power Consumption Operational	14 watt
Angular Field of View (H, Max, Degree)	270
Angular Field of View (V, Max, Degree)	98
Focal Length Control	Fixed focal
Factor de forma	Dome
Indoor/Outdoor	Outdoor
Lens Aperture	F/1.6
Lens Mount	M12 mount
Temp. máx. de operación	122 degree Fahrenheit
Min Focal Length	2.8 millimetre
Temp. mín. de operación	-40 degree Fahrenheit
Minimum Illumination	0.15 lux - B&W, 0.15 lux - color
Humedad de operación	0 - 90% (non-condensing)
Protection	Vandal / weatherproof
Sensor Pixels Total (H)	10368
Sensor Pixels Total (V)	1944
Sensor Size (metric)	9.1 mm (1/2.8")
Total Pixels	4 x 5,000,000 pixels
Video Formats	H.264, H.265, MJPEG, MPEG-4 Part 10
Video Input	Color
Alarm Input Quantity	1
Alarm Output Quantity	1
Características	1024 motion detection zones, 3-Axis Adjustment, 4 lens, Aluminum housing, Auto gain control, Auto white balance, Backlight Compensation (BLC), Bandwidth limitation, Bit rate control, Brightness control, Contrast control, Group of Pictures (GOP), Hue control, Infrared cut filter, Interchangable lens mounts, Low profile design, Manual 360° rotation, Manual white balance, Multicast Streaming, NAS-Ready, NightView Technology, Notification picture to E-mail, Notification picture to FTP, On Screen Display, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, Password protection, Privacy Mask Function, Progressive scanning, Remote focus, Saturation control, Sharpness control, Smart Codec, SNAPstream+, Tamper-detection, Wide Dynamic Range (WDR)
Cantidad por empaque	1
Alto	3.1 inch
Weight	3.75 lbs
Ancho	7.7 inch
Profundidad	7.7 inch
Color	AV Costar white, Pantone cool gray 1C
Color	White
Estándares	EN 55032 Class A, EN 55035, EN 60529, EN 61000-3-2, EN 61000-3-3, EN 62262 IK10, FCC CFR47 Part 15 A, IEEE 802.1x, IEEE 802.3at, IP66, NDAA, REACH, RoHS, UL 60950-1, WEEE
