Marca: Ubiquiti
Antena Ubiquiti Device Bridge Pro Sector
Descripción
Sobre este producto
- 📡 Enlace punto-a-multipunto de 5 GHz que conecta más de 50 clientes Device Bridge Pro a más de 5 km de distancia.
- 📶 4 antenas de 5 GHz con 17 dBi de ganancia y tecnología 2x2 MIMO para cobertura de sector amplia y estable.
- 🗺️ Cobertura de hasta 16,404 ft² (1,524 m²) en despliegues de área extensa.
- 🌦️ Uso en interiores y exteriores, montaje en poste (-40 a 60 °C) para instalaciones a la intemperie.
- 🔋 Potencia de transmisión de hasta 25 dBm en 5 GHz para enlaces de largo alcance.
- ✅ Certificado CE, FCC, IC, Anatel y compatible con NDAA.
| Característica | Detalles |
|---|---|
| Tipo de producto | Accesorios |
| Marca | Ubiquiti |
| Modelo | Device Bridge Pro Sector |
| Número de parte | UDB-Pro-Sector |
| UPC | 810177160298 |
| Tipo | WiFi |
| Serie | Bridging |
| ESD/EMP Protection | No |
| Certifications | CE | FCC | IC | Anatel | NDAA Compliant |
| Operating Temperature | -40 to 140° F (-40 to 60° C) |
| Operating Humidity | 5% to 95% noncondensing |
| Indoor/Outdoor | Indoor | Outdoor |
| Factor de forma | Mountable |

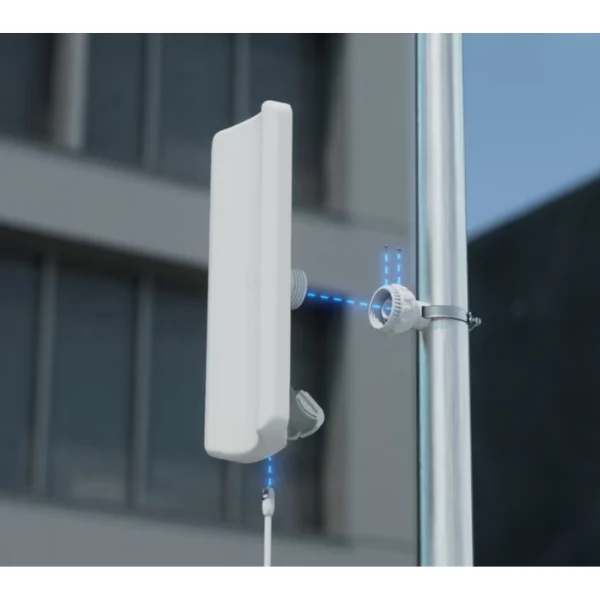

| Mount Location | Pole |
| Antenna | Internal |
| Antenna Gain | 5 GHz 17 dBi |
| Radio Technology | 2 x 2 MIMO |
| MIMO | 2 x 2 MIMO |
| Spatial Streams | 2 |
| Max. TX Power | 5 GHz: 25 dBm |
| Buttons | Reset Button |
| Status Indicators | System/Power/Ethernet |
| Network Ports & Connectors | 1 x RJ-45 Gigabit LAN Port |
| Maximum Range Outdoors | 3.1 mi (5.0 km) |
| Wireless Technology | WiFi 4 (802.11n) | WiFi 5 (802.11ac) | 802.11a |
| Wireless Standard | AC400 |
| WiFi 5 (802.11ac) Data Transfer Rate | 6.5 Mbps to 400 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40) |
| WiFi 4 (802.11n) Data Transfer Rate | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| Wireless A Data Transfer Rate | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Operating Mode | Access Point | Bridge |
| Security | WPA2, AES |
| Consumo de energía | 6 Watts |
| PoE | Yes |
| PoE Standard | IEEE 802.3af (PoE) |
| What's in the Box | 1 x Device Bridge Pro Sector (UDB-PRO-SECTOR), Mounting Hardware, Documentation |
| Enclosure Material | UV-stabilized Polycarbonate |
| Ancho | 5.10 in. (129.60 mm) |
| Profundidad | 2.80 in. (71.40 mm) |
| Alto | 14.20 in. (360.90 mm) |
| Peso | 1.80 lbs. (0.84 kg) |
