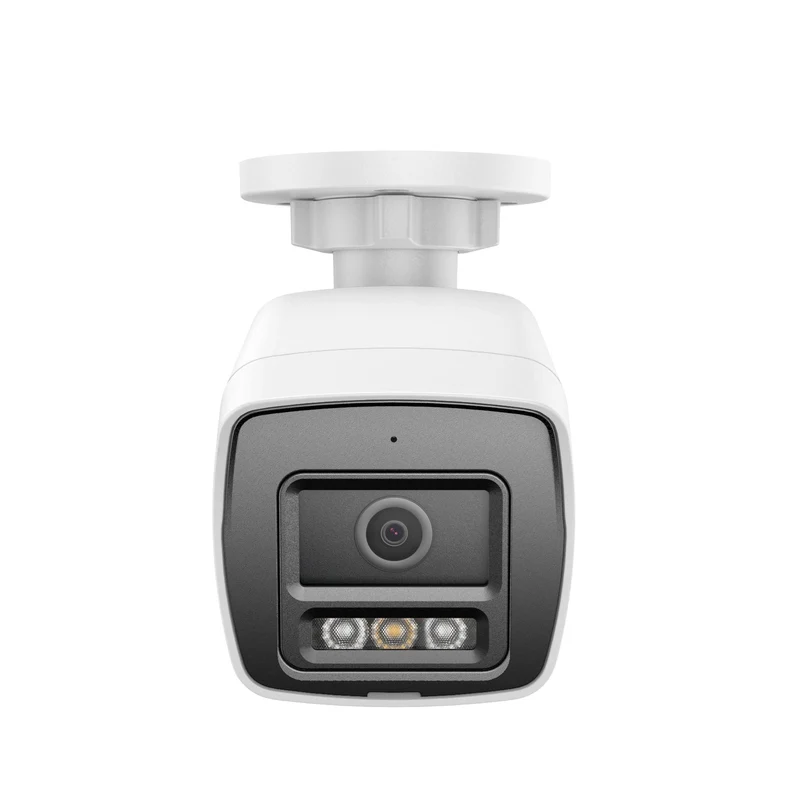

ANNKE C800 – 4K Outdoor PoE IP Security Camera, Human & Vehicle Detection, EXIR 2.0 Night Vision, Built-in Microphone & SD Card Slot, RTSP Supported

ANNKE C800

Once the Better, Now Even Better

Capture Clear Night Detail by Smart Dual Light

By default smart dual light mode at night, the camera can clearly find the target at night by infrared light. If there is a moving target, the white light will start, infrared off, so as to obtain a clear colour image. In addition, you can also choose full infrared or full white light mode.

True 4K Ultra HD, View Every Detail

The 4 MM lens, with the high-end 1/2.4" Progressive Scan CMOS sensor adjusted by professional engineers hundreds of times, covers up to FOV 96°, and delivers the best 4K Ultra HD footage in all environments.

120 dB WDR, 3D DNR, BLC & HLC image enhancement algorithms help the camera capture breathtaking 4K images at any level of brightness.

Newly Upgraded Human & Vehicle Detection – Perfection in Motion

It’s a leap in smart motion detection. The advanced human & vehicle detection will only detect a person or vehicle, which helps reduce unwanted motion alerts triggered by animals, or random inanimate objects, like waving branches, falling leaves, raindrops, etc.

Noise-Cancelling Audio

The built-in noise-cancelling microphone can filter the environmental noise automatically and pick up the voice from up to 20 ft away.

Listen-in Audio: Audio recording enhances the security coverage and the ability to interpret events. Record videos with vivid sound instead of silent footage.

Mute Function: Audio recording might be regulated based on your location. If the audio surveillance is not allowed or you don’t want to record audio, simply mute it.

Advanced H.265+ Video Format

ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budget on buying more HDDs.

A Truly Weatherproof Security Camera

Built with an IP67 weatherproof rating, the IP camera remains perfectly even being immersed in 1 m of water for 30 minutes. The camera has been tested in extremely hot & cold weather (-22 22°F – 140 °F/-30 °C – 60 °C) and continues to record in exceptional 4K Ultra HD, without blur and no image distortion.

-22 °F | -30 °C Cold Rating

Metal & ABS Rugged Housing

140 °F | 60 °C Hot Rating

IP67 Water Rating

Small on Prices, Big on Features

PoE or DC Power

Power on the camera via PoE with an NVR/PoE injector, or plug it into an outlet for a power supply.

Local Storage

Supports up to 512 GB TF card (not included) for local video storage without monthly cloud fees.

Customized Motion Areas

Customize the specific motion zones, like garage, front door, etc., for much more relevant motion alerts.

Motion Alerts & Remote Access

Receive instant app pushes & email alerts when there are motion events. Control the camera remotely with smart devices.

Specification

IP Camera (Model Number: I91DF/I91DL/I91DM)
Camera	Image Sensor	1/2.4" Progressive Scan CMOS
	Max resolution	3840*2160(8MP)
	Main Stream	50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
	Sub-stream	50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360) 60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
	Video Compression	Mainstream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
	Video Bitrate	32 Kbps - 16 Mbps
	Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
	Audio Input	Built-in Microphone, record with audio
	Lens	2.8 mm
	Min. Illumination	Colour: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
	Angle of View	Horizontal FOV 105°, vertical FOV 55°, diagonal FOV 127°
	Supplement Light Type	Smart Dual-Light, IR, White Light
	Supplement Light Range	Up to 30 m
	Motion detection 2.0	Support, including Human & Vehicle detection
	Image Enhancement	BLC, HLC, 3D DNR
	Wide Dynamic Range	120 dB WDR
	Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
	API	Open Network Video Interface Version (Profile S, Profile T, Profile G)
	Region of Interest (ROI)	1 fixed region for mainstream
	Privacy Mask	4 programmable polygon privacy masks
	General Function	Rotate mode, mirror, password protection, and remote access
	Ethernet	1 RJ45 10 M/100 M self-adaptive Ethernet port
General	Housing	Metal & Plastic
	Color	White
	Storage	Built-in microSD/SDHC/SDXC Slot, up to 512 GB
	Hardware Reset	Yes
	Operating Power	DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
	Operating Temperature	-22 °F – 140 °F/-30 °C – 60 °C
	Indoor/Outdoor Use	Indoor/Outdoor
	Interface Protection	IP67 & IK08
	Dimension (L X W X H)	Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
	Weight	1.2 lb./550 g
