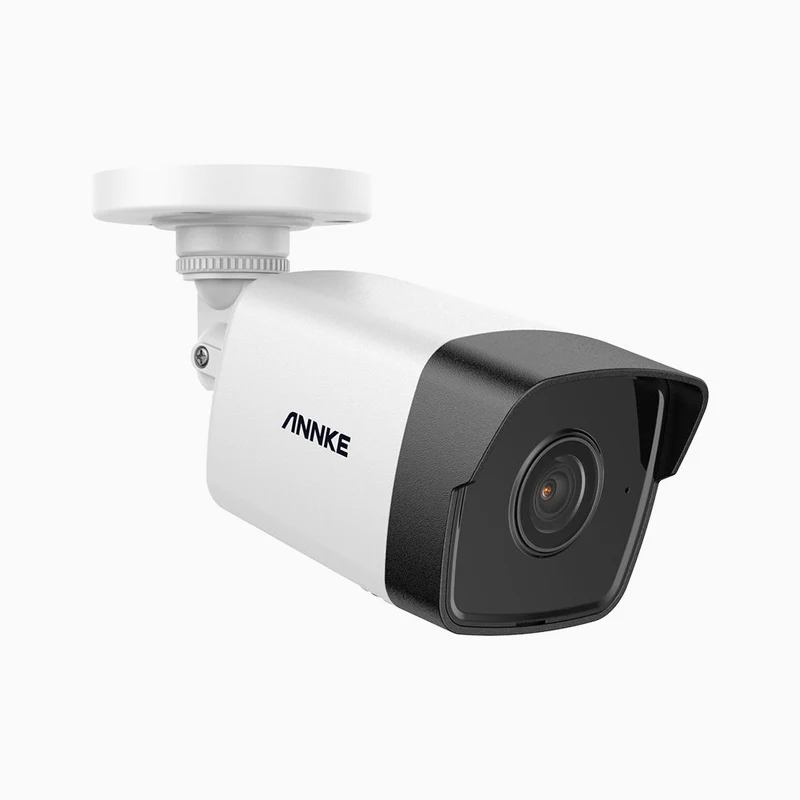

ANNKE C500 - 3K Outdoor PoE Security IP Camera, EXIR 2.0 Night Vision, Built-in Mic & SD Card Slot, IP67 Waterproof, RTSP Supported, Works with Alexa

C500 Series Incredibly Easy PoE Incomparable 3K Super HD

This outstanding 3K Super HD security camera monitors your premises like never before. This top-of-the-line security solution includes every feature you need, providing professional-grade security protection for your properties.

True 3K Super HD at 20 fps

With the advanced OmniVision sensor, 120 dB true WDR & 3D DNR, this IP camera brings industry-leading 3K Super HD at smooth 20 fps (2592 X 1944 pixels). Up to 116° diagonal FoV for 2.8 MM lens, up to 90° diagonal FoV for 4 MM lens, to cover wide-range areas like foyers, front/back doors, or yards, parking lots, warehouses, etc.

Unparalleled 3K in Every Condition

C500 Series has been tested in almost every scenario in your daily life, garages, front doors, stores, etc., both in hot & cold temperatures. The cameras can still shoot authentic 3K Super HD videos without glare in every testing environment.

EXIR 2.0 Night Vision with External Lighting

ANNKE-designed color night vision tech enables the camera to produce colorful videos over 0.028 lux illumination with the external light sources around the camera.

Equipped with the exceptional EXIR tech & smart IR, the camera delivers up to 100 ft long-range black & white night vision in 0 lux illumination conditions, which are too dark to render color images.

Noise-Cancelling Audio

The built-in noise-cancelling microphone can filter the environmental noise automatically and pick up the voice from up to 20 ft away.

Listen-in Audio

Audio recording enhances the security coverage and the ability to interpret events. Record videos with vivid sound instead of silent footage.

Mute Function

Audio recording might be regulated based on your location. If the audio surveillance is not allowed or you don’t want to audio record, simply mute it.

Advanced H.265+ Video Format

ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budget on buying more HDDs.

Small File Sizes

Send smaller file sizes to an NVR/SD card (not included) without losing 3K quality.

Long Recording Time

H.265+ coding allows for longer recording times before overwriting older recordings.

Remote 3K Live View

View high-quality 3K Super HD live stream on your smart devices without all the data.

IP67 Weatherproof – Extreme Weather Capabilities

IP67 rated, the camera is fully weatherproof & can be immersed in 1 m of water for 30 mins. It continues to operate in extreme temperatures as low as -22°F (-30 °C). Torrential downpours, heavy winds, freezing snowstorms, the camera braves them all.

Check IP67 Weatherproof Real Performance

X

Metal & ABS Rugged Housing

-22 °F | -30 °C Cold Rating

140 °F | 60 °C Heat Rating

IP67 Water Rating

RTSP Compatibility

The camera is open to third-party NVRs & software. You may connect the camera to ANNKE NVRs or third-party NVRs for 24/7 recording. Besides free ANNKE software, you are able to control the camera via Blue Iris, Synology, Milestone, etc.

Small on Prices, Big on Features

PoE or DC Power

Power on the camera via PoE with an NVR/PoE injector, or plug it into an outlet for a power supply.

Local Storage

Supports up to 256 GB TF card (not included) for local video storage without monthly cloud fees.

Customized Motion Areas

Customize the specific motion zones, like garage, front door, etc., for much more relevant motion alerts.

Motion Alerts & Remote Access

Receive instant app pushes & email alerts when there are motion events. Control the camera remotely with smart devices.

Specification

Download C500 Specification

• Bullet Camera (I51DE)

• Bullet Camera (I51DL)

What's in the Box
➀ 1X/4X Security Camera(s)➁ 1X/4X Mounting Screw Bag(s)➂ 1X User Manual➃1X Screw Driver (For dome camera only) Camera

Image Sensor1/3" OmniVision Progressive Scan CMOS	Video Resolution5MP (2560 X 1920@15 fps)
Signal SystemPAL/NTSC	Video CompressionH.265+/H.265/H.264+/H.264
Video Bitrate32 Kbps - 8 Mbps	Lens2.8 mm
Min. IlluminationColor: 0.01 Lux @(F2.0, AGC On)	Angle of ViewHorizontal FoV 71.5°, Vertical FoV 53°, Diagonal FoV 91°
Number of Infrared LEDs2 pcs	Night Vision DistanceUp to 100 ft/30 m
DNR3D DNR	Wide Dynamic RangeDigital WDR
Weight0.7 lb./300 g	IR-Cut FilterYes
EthernetRJ45 X1 (10 M/100 M)	HousingMetal & Plastic
ColorWhite	Operating PowerDC 12 V; PoE (802.3af)
Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C	Indoor/OutdoorIndoor/Outdoor
Weatherproof RatingIP67	Dimension (L X W X H)6.8" X 2.6" X 2.72"/172.7 X 66 X 69.1 mm
ONVIFSupport

Image Sensor1/3" OmniVision Progressive Scan CMOS

Signal SystemPAL/NTSC

Video Bitrate32 Kbps - 8 Mbps

Min. IlluminationColor: 0.01 Lux @(F2.0, AGC On)

Number of Infrared LEDs2 pcs

DNR3D DNR

EthernetRJ45 X1 (10 M/100 M)

ColorWhite

Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C

Weatherproof RatingIP67

Weight0.7 lb./300 g

Video Resolution 5MP (2560 X 1920@15 fps)

Video Compression H.265+/H.265/H.264+/H.264

Lens 2.8 mm

Angle of View Horizontal FoV 71.5°, Vertical FoV 53°, Diagonal FoV 91°

Night Vision Distance Up to 100 ft/30 m

Wide Dynamic Range Digital WDR

ONVIFSupport

IR-Cut Filter Yes

Housing Metal & Plastic

Operating Power DC 12 V; PoE (802.3af)

Indoor/Outdoor Indoor/Outdoor

Dimension (L X W X H) 6.8" X 2.6" X 2.72"/172.7 X 66 X 69.1 mm

General

HousingMetal & Plastic	ColorWhite
Operating PowerDC 12 V; PoE (802.3af)	Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
Indoor/OutdoorIndoor/Outdoor	Weatherproof RatingIP67
Dimension (L X W X H)6.8" X 2.6" X 2.72"/172.7 X 66 X 69.1 mm	Weight0.7 lb./300 g

HousingMetal & Plastic

Operating PowerDC 12 V; PoE (802.3af)

Indoor/OutdoorIndoor/Outdoor

Dimension (L X W X H)6.8" X 2.6" X 2.72"/172.7 X 66 X 69.1 mm

Color White

Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C

Weatherproof Rating IP67

Weight 0.7 lb./300 g

What's in the Box
➀ 1X/4X Security Camera(s)➁ 1X/4X Mounting Screw Bag(s)➂ 1X User Manual➃1X Screw Driver (For dome camera only) Camera

Image Sensor1/3" Progressive Scan CMOS	Video CompressionH.265+/H.265/H.264+/H.264
Main Stream Max. Frame Rate50 Hz: 20 fps (2592 X 1944), 25 fps (2560 X 1440, 2304 X 1296, 1920 X 1080, 1280 X 720) 60 Hz: 20 fps (2592 X 1944), 30 fps (2560 X 1440, 2304 X 1296, 1920 X 1080, 1280 X 720)	Substream Max. Frame Rate50 Hz: 25 fps (640 X 480, 640 X 360, 320 X 240) 60 Hz: 30 fps (640 X 480, 640 X 360, 320 X 240)
Video Bitrate32 Kbps - 8 Mbps	Audio CompressionG.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio InputBuilt-in Microphone	Min. IlluminationColor: 0.028 Lux @(F2.0, AGC On)
Angle of ViewHorizontal FoV 71.5°, Vertical FoV 53°, Diagonal FoV 91°	Number of Infrared LEDs2 pcs
Night Vision DistanceUp to 100 ft/30 m	DNR3D DNR
Wide Dynamic Range120 dB WDR	ONVIFSupport
IR-Cut FilterYes	EthernetRJ45 X1 (10 M/100 M)

Image Sensor1/3" Progressive Scan CMOS

Main Stream Max. Frame Rate50 Hz: 20 fps (2592 X 1944), 25 fps (2560 X 1440, 2304 X 1296, 1920 X 1080, 1280 X 720) 60 Hz: 20 fps (2592 X 1944), 30 fps (2560 X 1440, 2304 X 1296, 1920 X 1080, 1280 X 720)

Video Bitrate32 Kbps - 8 Mbps

Audio InputBuilt-in Microphone

Angle of ViewHorizontal FoV 71.5°, Vertical FoV 53°, Diagonal FoV 91°

Night Vision DistanceUp to 100 ft/30 m

Wide Dynamic Range120 dB WDR

IR-Cut FilterYes

Video Compression H.265+/H.265/H.264+/H.264

Substream Max. Frame Rate 50 Hz: 25 fps (640 X 480, 640 X 360, 320 X 240) 60 Hz: 30 fps (640 X 480, 640 X 360, 320 X 240)

Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

Min. Illumination Color: 0.028 Lux @(F2.0, AGC On)

Number of Infrared LEDs 2 pcs

DNR 3D DNR

ONVIF Support

Ethernet RJ45 X1 (10 M/100 M)

General

HousingMetal & Plastic	ColorWhite
StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB	Hardware ResetYes
Operating PowerDC 12 V; PoE (802.3af)	Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
Indoor/Outdoor UseIndoor/Outdoor	Interface ProtectionIP67, TVS 2000 V Lightning Protection, Surge Protection, and Voltage Transient Protection
Dimension (L X W X H)7.0" X 2.6" X 2.7"/177.6 X 66.2 X 67.8 mm	Weight0.6 lb./270 g Metal

tal & Plastic

StorageBuilt-in microSD/SDHC/SDXC Slot, up to 256 GB

Operating PowerDC 12 V; PoE (802.3af)

Indoor/Outdoor UseIndoor/Outdoor

Dimension (L X W X H)7.0" X 2.6" X 2.7"/177.6 X 66.2 X 67.8 mm

Color White

Hardware Reset Yes

HOperating Temperature -22 °F – 140 °F/-30 °C – 60 °C

Interface Protection IP67, TVS 2000 V Lightning Protection, Surge Protection, and Voltage Transient Protection

Weight 0.6 lb./270 g
