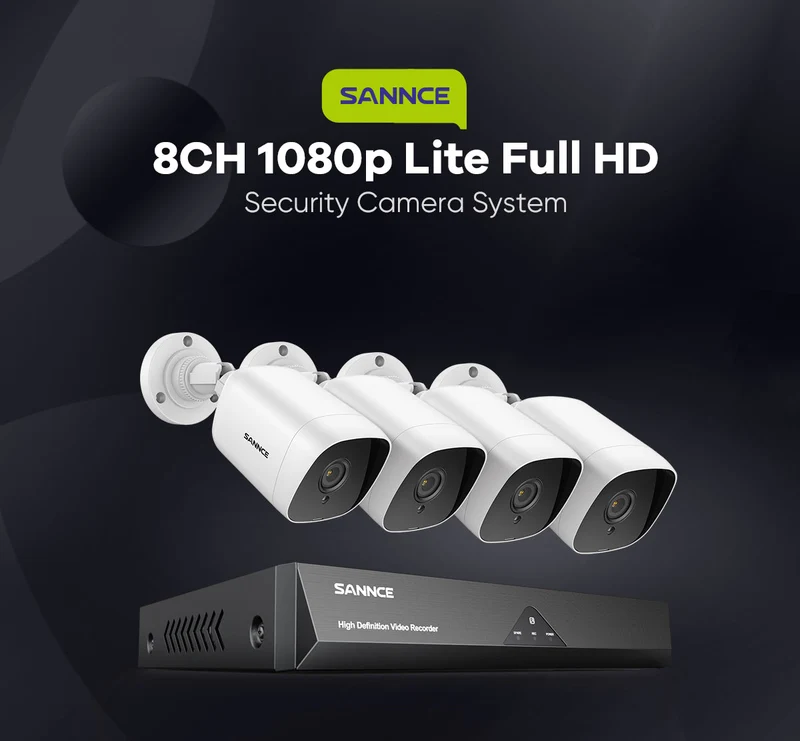

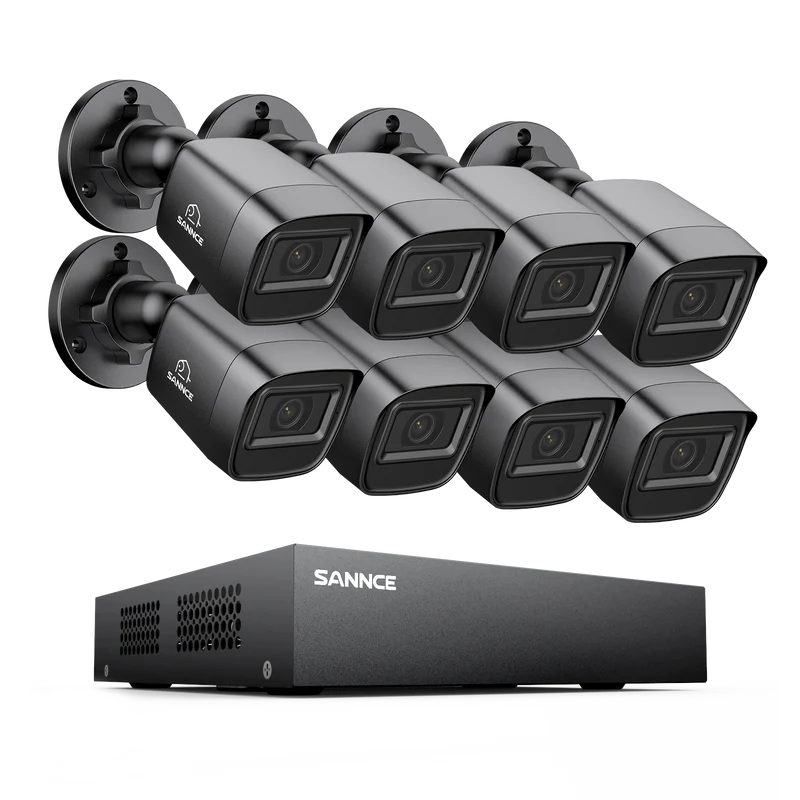

8 Channel 1080P Wired Security Camera System - Hybrid DVR, 8pcs 2MP Bullet Cameras, Outdoor & Indoor, Smart Motion Detection, Remote Access

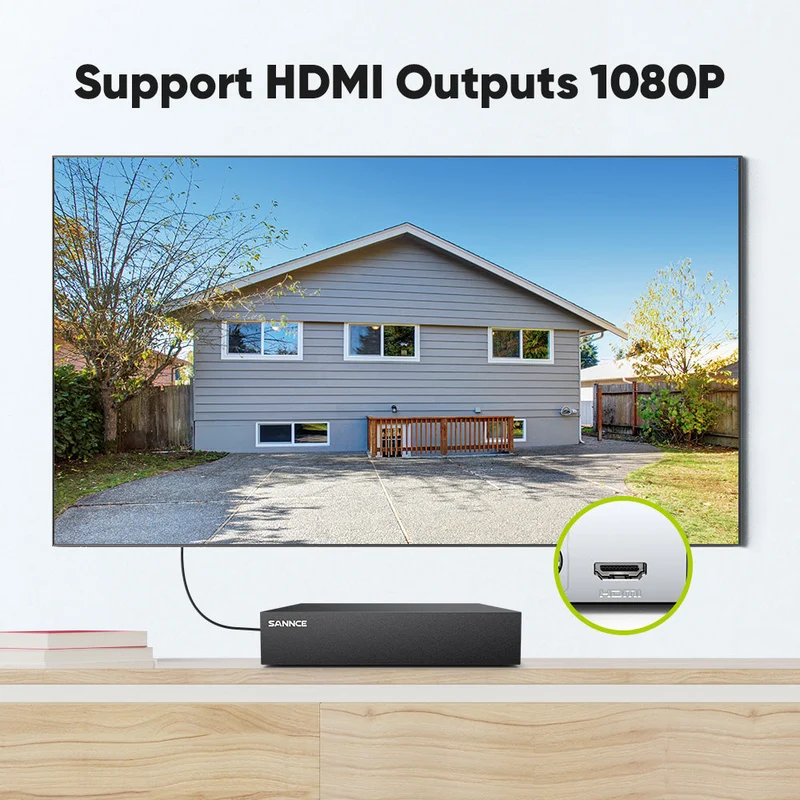

Support 1080P HDMI Output.

This DVR supports HDMI outputs with up to 1080p clarity, ensuring a good vision experience and never missing details.

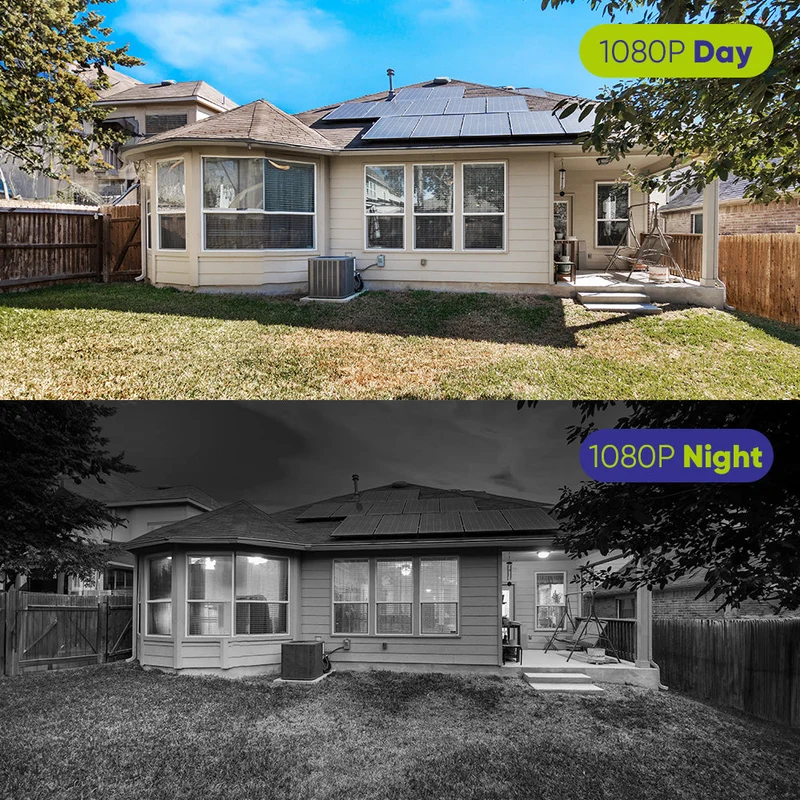

Visible Day & Night

This 1080P security camera provides clear and detailed videos for you, it's an ideal choice for you to apply in your home and guard your property security.

Smart Human & Vehicle Detection

This DVR supports smart motion detection. Once a human or vehicle is detected, instant alerts will be pushed to your App and email, allowing you to know real-time conditions anytime, anywhere.

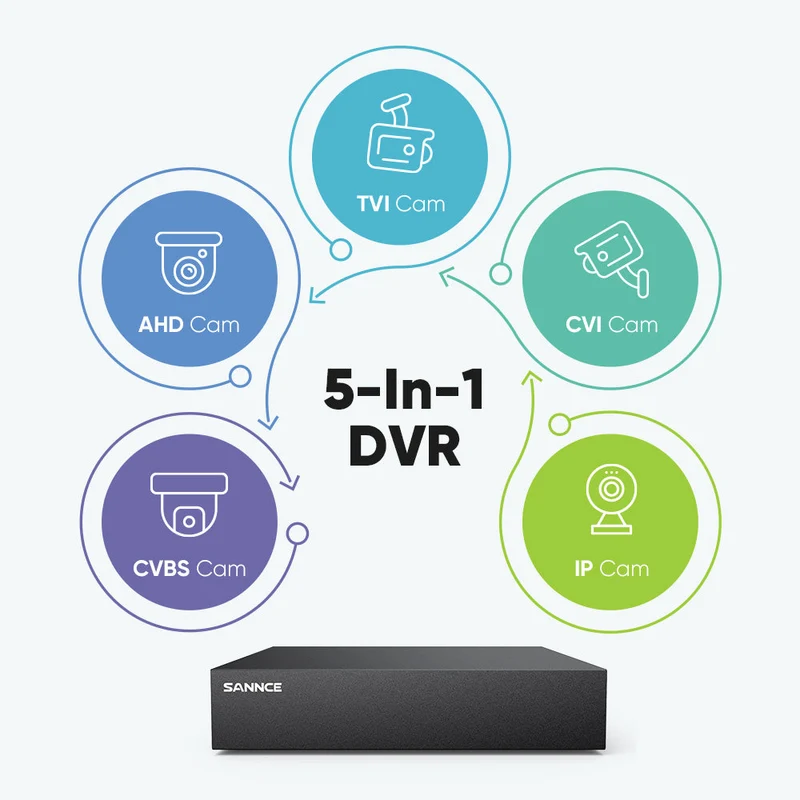

High Compatibility 5-In-1 DVR

This 8+2CH DVR supports TVI, AHD, CVI, CVBS, and IP cameras in multiple resolutions. 2 extra IP channels are available to maximize 5MP IP video access.

Various Recording Options & Playback

24/7 continuous recording, scheduled recording, and motion detection recording are fully customizable to meet your needs. Smart playback helps you quickly locate key footage from massive videos in seconds.

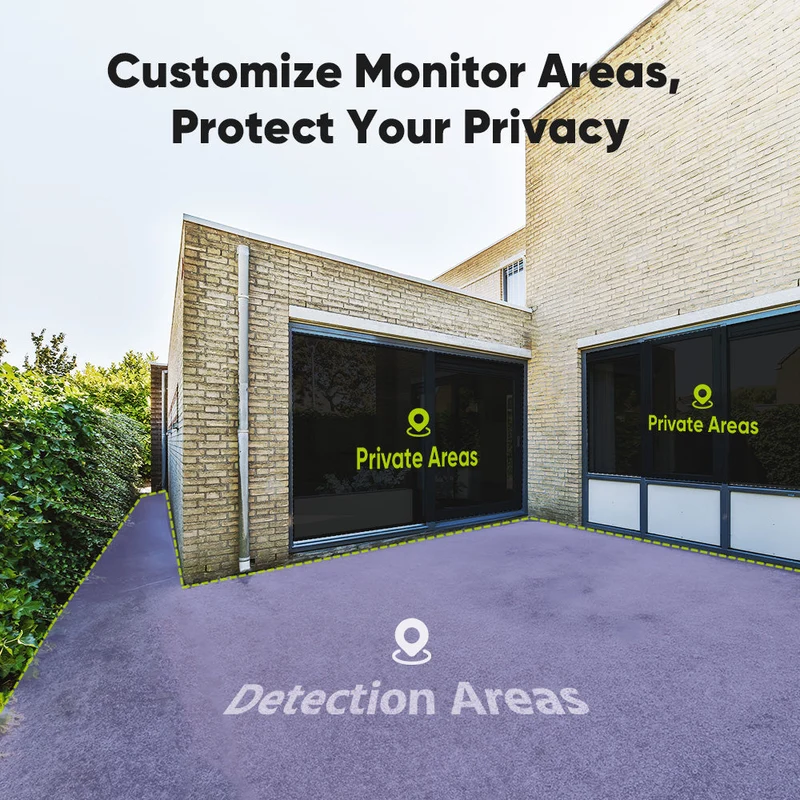

Customize Monitor Area & Privacy Mask

Freely customize up to 4 monitoring areas to focus on key locations only. Digital privacy masking covers sensitive areas to protect personal privacy and avoid information leakage.

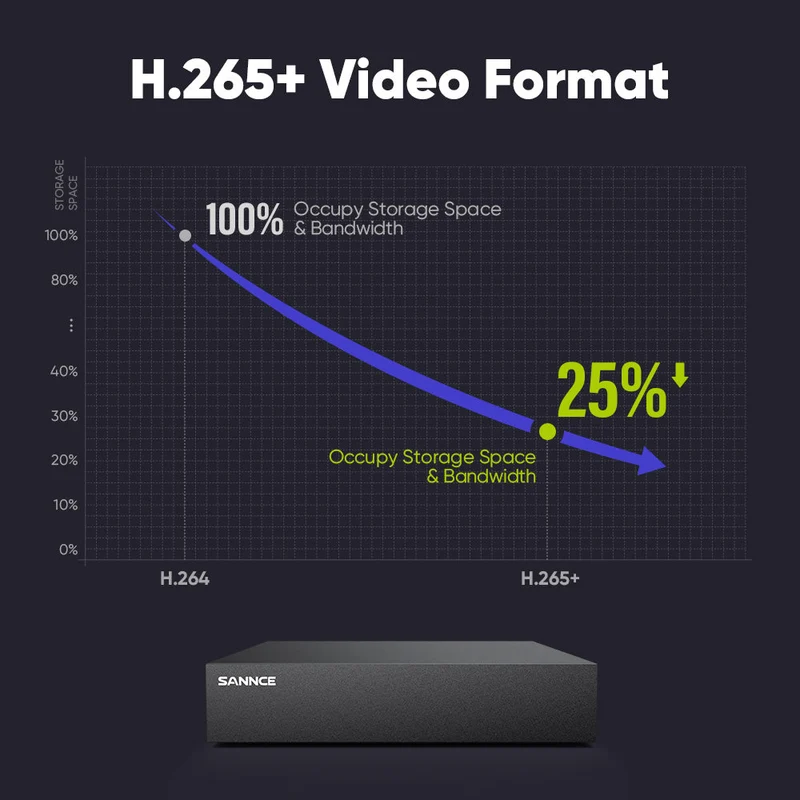

Advanced H.265 Pro+ Video Format

H.265 Pro+ coding extends recording retention time and saves up to 80% storage space compared with traditional H.264 encoding. It delivers smooth, low-latency remote video streaming.

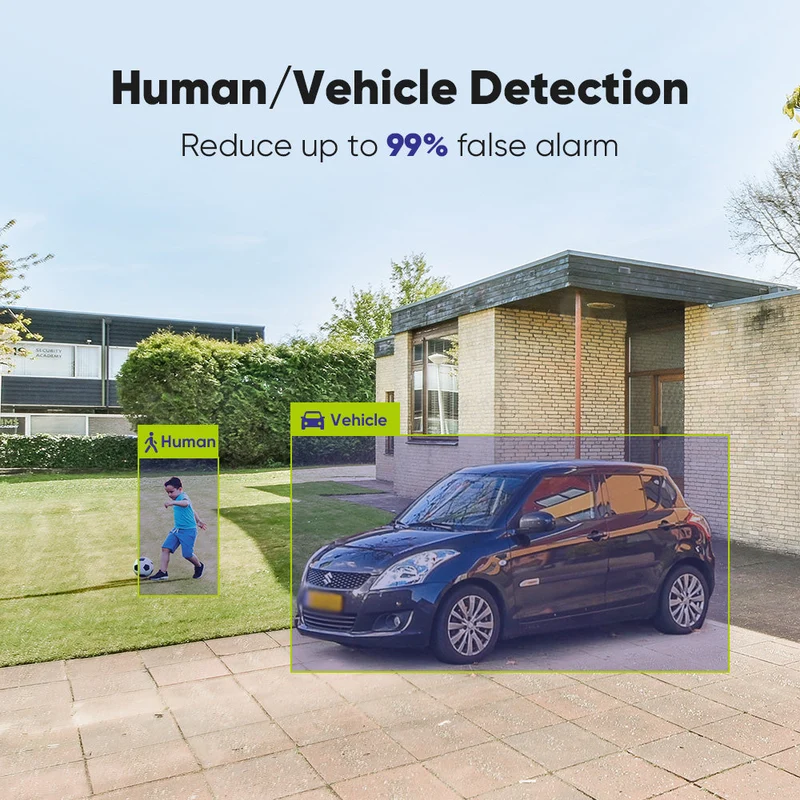

Smart Human & Vehicle Detection

Precise human and vehicle filtering filters out false alarms triggered by insects, pets, fallen leaves and other interference, making alert notification more accurate.

Remote Access

Multi-terminal remote real-time monitoring is available, and you can share access permissions with family members easily.

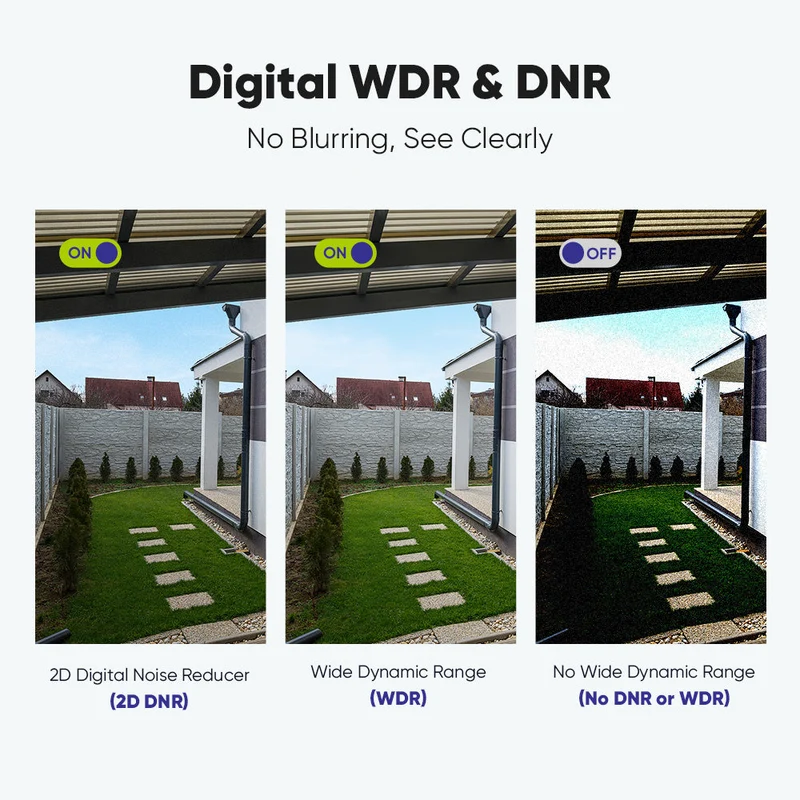

Digital WDR & DNR

Digital WDR balances overexposed and shadow areas for balanced, recognizable images. DNR noise reduction optimizes image performance to ensure clear footage in complex lighting environments.

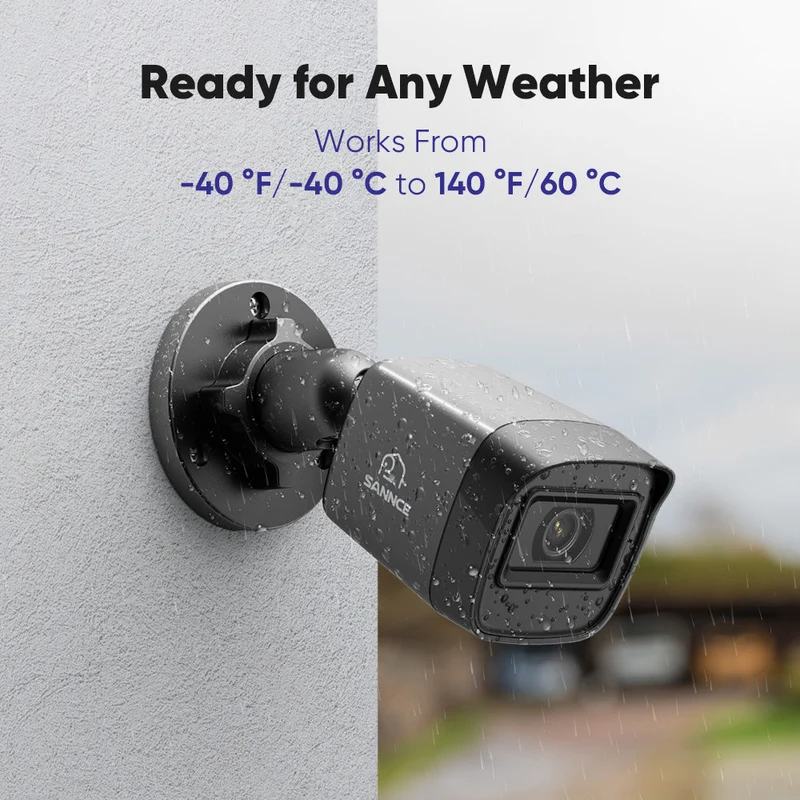

All-Weather Adaptation

IP67 weatherproof rating enables stable operation in harsh climates. Working temperature: -40°C ~ 60°C (-40°F ~ 140°F), resistant to snow, hail, high temperature and other extreme weather for reliable 24/7 home protection.

What's in the Box

• 1 x DVR
• 8 x Cameras
• 8 x 60 ft/18 m BNC Cables
• 4 x Power Adapters
• 1 x 1-to-2 Power Splitter
• 1 x USB Mouse
• 8 x Mounting Screw Bags
• 1 x User Manual

Specifications

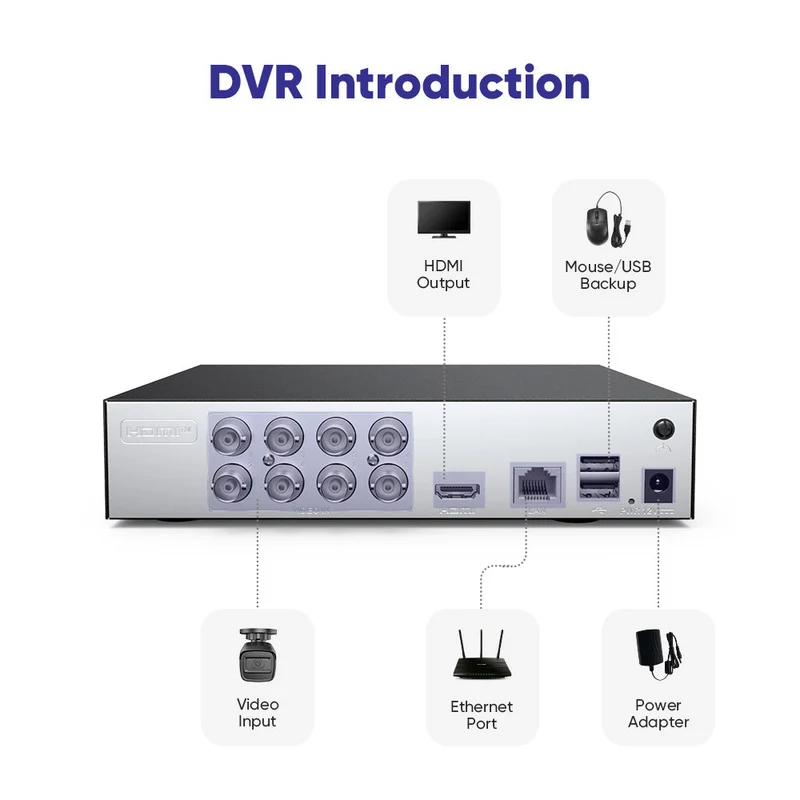

DVR (Model Number: DT81BC)
Video & Audio	Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
	Video Input	8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)
	Video Output	HDMI up to 1080p/60 Hz
	Audio Input/Output	0/8-ch via coaxial cable
	Supported Camera Types	1080p@15 fps, 720p@15 fps
	Analog HD Playback Resolution	1080P Lite(960×1080)/720p(1280×720)@15fps
	IP Camera Input	2-CH
	IPC Recording Resolution	Up to 5MP
	Max Playback Channel	8CH (1080 Lite)
	Human Detection	Support
	Vehicle Detection	Support
	ONVIF	Support
Hard Drive	HDD	1 SATA interface
	HDD Capacity	Up to 4TB capacity (3.5 inch)
External Interface	Network Interface	RJ45×1(10/100)
	USB	USB 2.0×2
General	Working Temperature	-10°C ~ 45°C / 14°F ~ 113°F
	Dimensions (W X H X D)	193×195×43mm
	Weight	≤1Kg
	Operating Power	DC12V, ≤ 18W

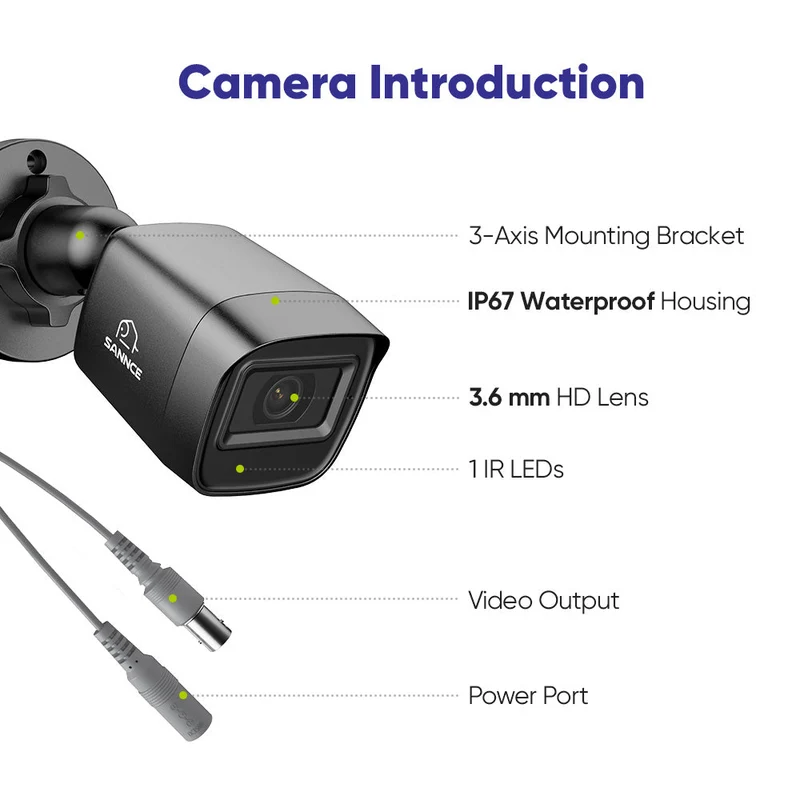

HD Camera (Model Number: C51EE)
Camera	Image Sensor	2MP CMOS Image Sensor
	Video Resolution	1920 (H) × 1080 (V)
	Signal System	PAL/NTSC
	Frame Rate	PAL: 1080p@25 fps / NTSC: 1080p@30 fps
	Lens	3.6 mm
	Min. Illumination	Color: 0.02 Lux @(F1.2,AGC on); 0 Lux with IR on
	Angle of View	Horizontal FOV: 73°, Vertical FOV: 39°
	Number of Infrared LEDs	1 pcs
	Night Vision Distance	Up to 66ft/20 m
	DNR	2D DNR
	Wide Dynamic Range	DWDR
	IR-Cut Filter	Yes
	Video Output	HD BNC ×1
General	Housing	Plastic
	Color	Black
	Operating Power	DC 12 V
	Operating Temperature	-40°C ~ 60°C / -40°F ~ 140°F
	Indoor/Outdoor	Indoor & Outdoor
	Weatherproof Rating	IP67
	Dimension (L X W X H)	—
	Weight	—
