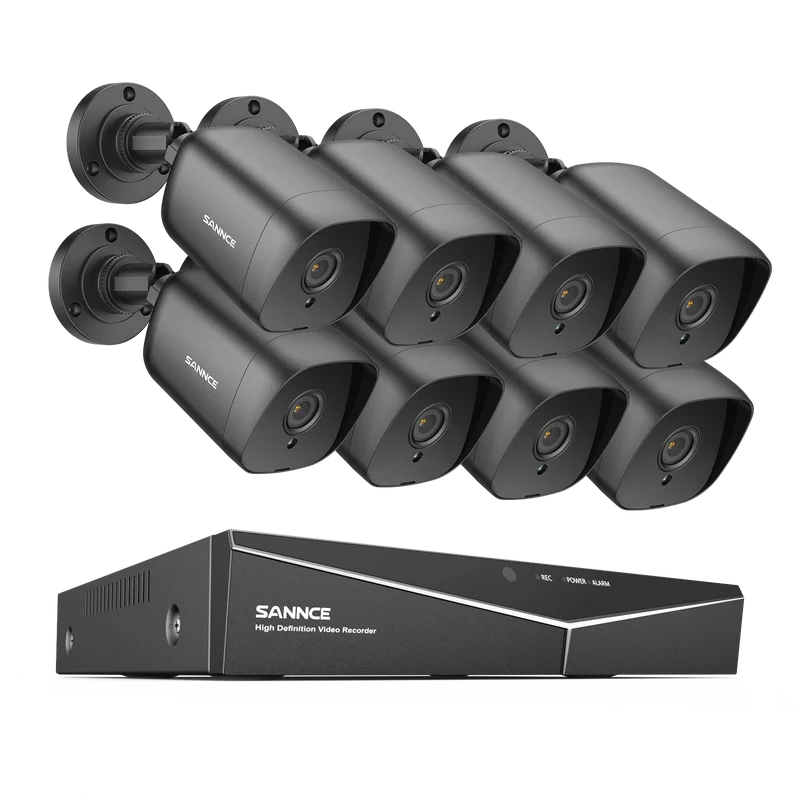

5MP 8 Channel Security Cameras System - Hybrid 5-in-1 CCTV DVR, Motion Detection, IP66 Weatherproof

Capture All Details in5MPFull HD
5MP HD resolution and a 3.6 mm professional lens enable the home & business security camera to deliver clear, high-quality images. Watch and record crisp HD videos with more details than ever before.

EXIR 2.0 Night Vision
The enhanced EXIR 2.0 technology enables the security camera to shoot sharp night vision footage up to 100 ft away, even in complete darkness. It brings you peace of mind from dusk to dawn.

Digital WDR & DNR
The dynamic range capability enables the outdoor wired camera to cope with complex scenes containing bright and dark objects.With DNR, the camera can shoot sharp images without image noise in darker conditions.

Powerful 5-in-1 DVR
SANNCEversatile 8-channel hybrid DVR supports up to 12CH with 8CH 5MP TVI, AHD, CVI, CVBS analog cameras, and 4CH 2MP IP cameras simultaneously,regardless of bullet, turret, dome, and PTZ camera types.You may integrate any kind of security camera you want for 24/7 non-stop recording.

24/7 Security in Your Hand
You are allowed to access the DVR system via the app on your phone to watch high-quality live streams anytime you like. Always stay connected to your home and family, whether at work or on the journey.

Smart Motion Alerts & Remote Access
With the advanced motion detection algorithm, the DVR detects any difference and sends you real-time app push notifications and email alerts. Control the DVR remotely via 3G/4G/5G or WiFi through your smartphones, tablets, computers, laptops, and IE browser.

Compatible H.264+ Video Format
H.264+ coding saves more videos and consumes less bandwidth than H.264 systems. It is the most compatible video compression technology that provides you with ultra-smooth 5MP Lite streaming without all the data.

IP66 Waterproof & Dustproof Design
Built with a high-quality IP66 waterproof rating, the weather & weather-corrosion-resistant camera is durable enough to use outside & inside. Place the camera at your home, office, factory, warehouse, garage, or other indoor & outdoor places to get 24/7/365 monitoring.

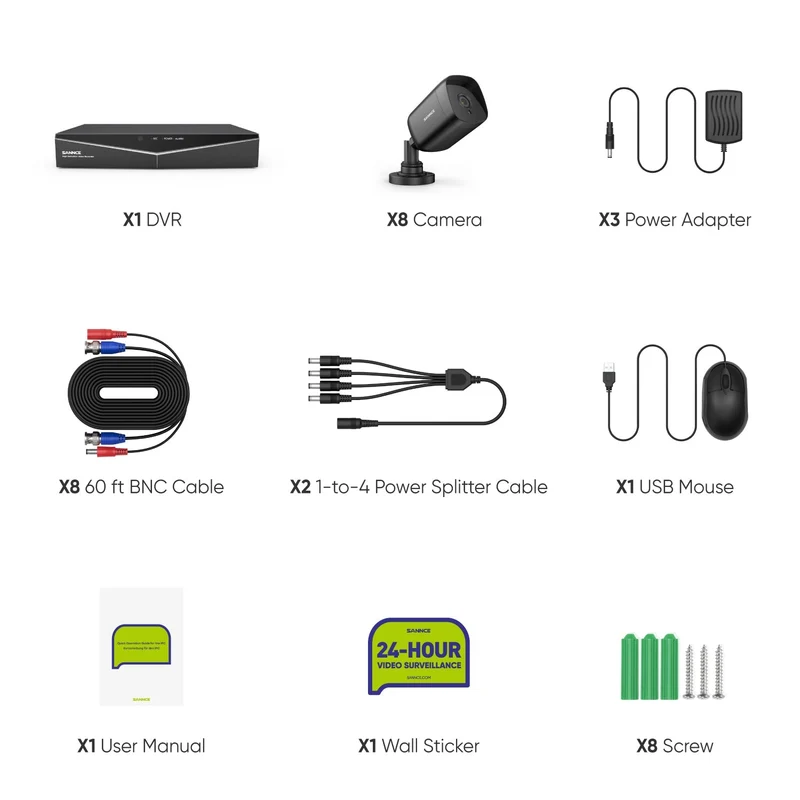

What¡¯s in the Box

• 1XDVR
• 8X Cameras
• 8X 60 ft/18 m BNC Cables
• 3X Power Adapters
• 2X1-to-4 Power Splitter
• 1X USB Mouse
• 8X Mounting Screw Bags
• 1X User Manual

Specifications

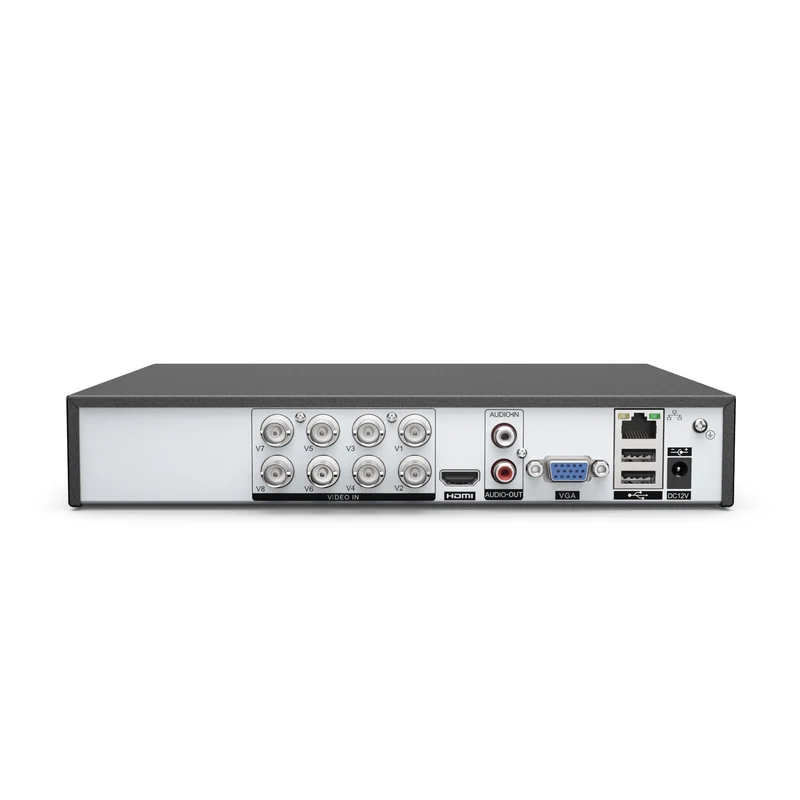

DVR (Model Number: DT81BF)
Video & Audio	Video Compression	H.264+
	Video Input	8CH HD Analog
	Video Output	HDMI and VGA up to 1080p
	Audio Input	2CH
	Audio Output	1CH
	Analog HD Recording Resolution	5M-N@15fps
	IPC Recording Resolution	16CH*5MP
	Hybrid Mode	8*5M-N@15fps (analog)+4*1080P
	Max. Playback Channel	4CH (Analog mode)
	Compression	G.711a
	Intercom	Support
	Protocols	Support
Hard Drive	HDD	1 SATA Interface
	HDD Capacity	Up to8 TB Capacity
	Backup	Network, USB storage
General	Network Interface	RJ45 X1 (10/100 M)
	PTZ control	Support for multiple PTZ protocols
	Alarm I/O	0/0
	USB	USB 2.0 X2
	Operating Power	DC 12V/2A
	Working Temperature	14 °F ~ 131 °F/-10 °C ~ 55 °C
	Dimensions (W X H X D)	10.04" X 9.29" X 1.73"/255 X 236 X 44 mm
	Weight (Without Hard Disk)	2.2 lbs./1 kg (Without HDD)

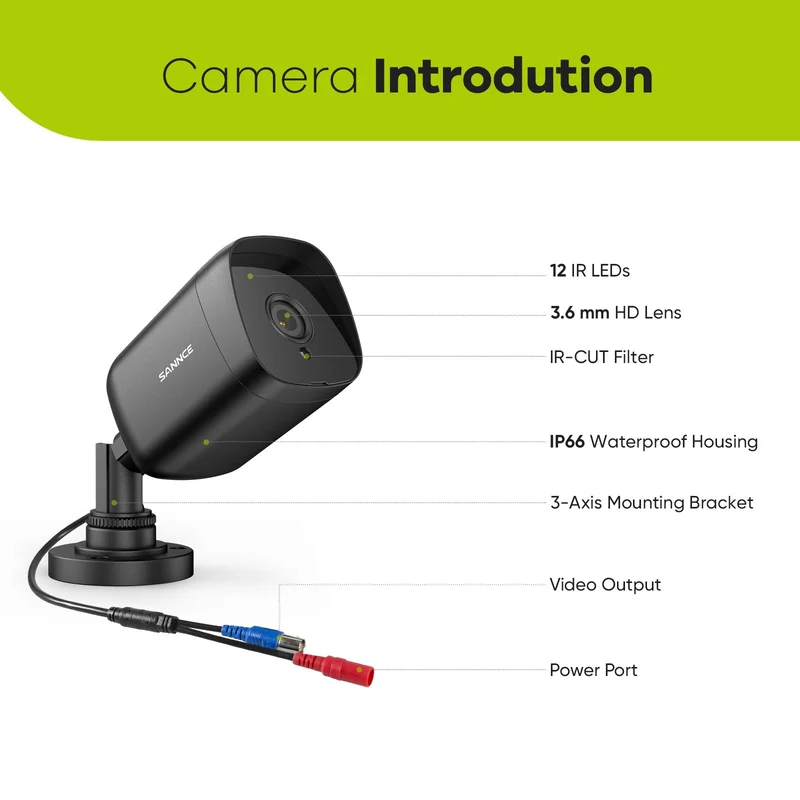

HD Camera (Model Number: CR1CP)
Camera	Video Resolution	HD 5MP
	Signal System	PAL/NTSC
	Image Sensor	Progressive Scan CMOS
	Lens	3.6 mm
	Min. Illumination	0.02 Lux@(F1.2 AGC ON); 0 Lux with IR on
	Angle of View	70°
	Number of Infrared LEDs	12
	Night Vision Distance	Up to 100 ft/30 m
	DNR	DNR
	Wide Dynamic Range	Digital WDR
	IR-Cut Filter	Yes
	Video Output	HD BNC X1
General	Housing	Plastic
	Color	Black
	Operating Power	DC 12 V
	Operating Temperature	-40 °F ~ 140 °F/-40 °C ~ 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP66
	Dimensions (L X W X H)	6.49" X 2.36" X 2.36"/165 X 60 X 60 mm
	Weight	0.33 lb./150 g
