5MP 8 Channel Hybrid 5-in-1 CCTV Digital Video Recorder, Motion Detection, Support IP & Analog Cameras

Up to 5MP Ultra HD Live View
The hybrid digital video recorder supports 5MP cameras to provide you with 5MP streaming and 5MP lite recording, bringing everything to life with stunning and clear details, even the license plate can be recognized easily.

Powerful 5-in-1 DVR
SANNCE versatile 8-channel hybrid DVR supports up to 12CH with 8CH 5MP TVI, AHD, CVI, CVBS analog cameras and 4CH 2MP IP cameras simultaneously, regardless of bullet, turret, dome, PTZ camera types. You may integrate any type of security camera you want for 24/7 non-stop recording.

24/7 Security in Your Hand
You are allowed to access the DVR system via the app on your phone to watch a high-quality live stream anytime you like. Always stay connected to your home and family, no matter whether you are at work or on the journey.

Smart Motion Alerts & Remote Access
With the advanced motion detection algorithm, the DVR detects any difference and sends real-time app push notifications and email alerts to you. Control the DVR remotely via 3G/4G/5G or WiFi through your smartphones, tablets, computers, laptops, and IE browser.

Compatible H.264+ Video Format
H.264+ coding saves more videos and consumes less bandwidth than H.264 systems. It is the most compatible video compression technology that provides you with ultra-smooth 5MP Lite streaming without all the data.

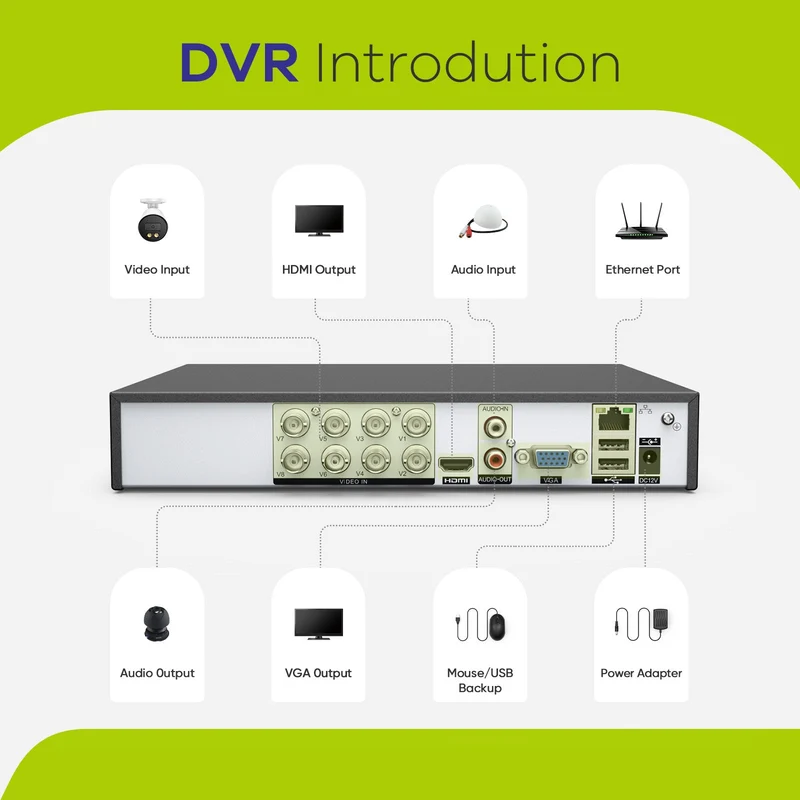

1080P Full HD HDMI & VGA Output
The DVR supports HDMI and VGA 1080P full-HD outputs, so you can connect an HD monitor to it for live viewing and video playback. The default HDMI/VGA output resolution is 1024*768; please adjust it manually for a higher resolution.

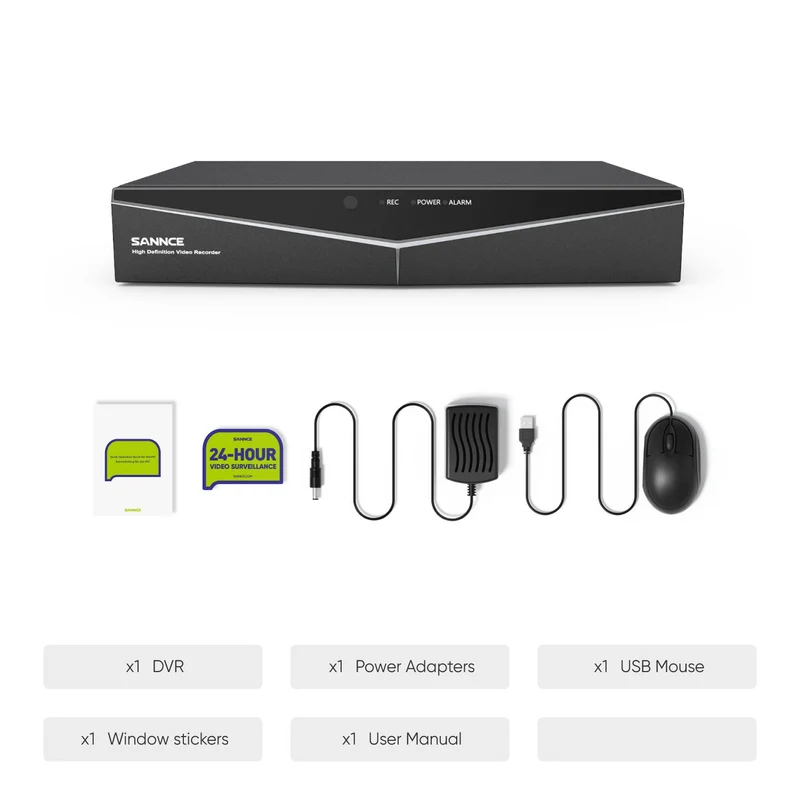

What’s in the Box
1X DVR
1X Power Adapter
1X USB Mouse
1X User Manual
1X Mounting Screws Bag

Specifications

DVR (Model Number: DT81BF)
Video & Audio	Video Compression	H.264+
	Video Input	8CH HD Analog
	Video Output	HDMI and VGA up to 1080p
	Audio Input	2CH
	Audio Output	1CH
	Analog HD Recording Resolution	5M-N@15fps
	IPC Recording Resolution	16CH*5MP
	Hybrid Mode	8*5M-N@15fps (analog)+4*1080P
	Max. Playback Channel	4CH (Analog mode)
	Compression	G.711a
	Intercom	Support
	Protocols	Support
Hard Drive	HDD	1 SATA Interface
	HDD Capacity	Up to 8 TB Capacity
	Backup	Network, USB storage
General	Network Interface	RJ45 X1 (10/100 M)
	PTZ control	Support for multiple PTZ protocols
	Alarm I/O	0/0
	USB	USB 2.0 X2
	Operating Power	DC 12V/2A
	Working Temperature	14 °F – 131 °F/-10 °C – 55 °C
	Dimensions (W X H X D)	10.04” X 9.29” X 1.73”/255 X 236 X 44 mm
	Weight (Without Hard Disk)	2.2 lbs./1 kg (Without HDD)
