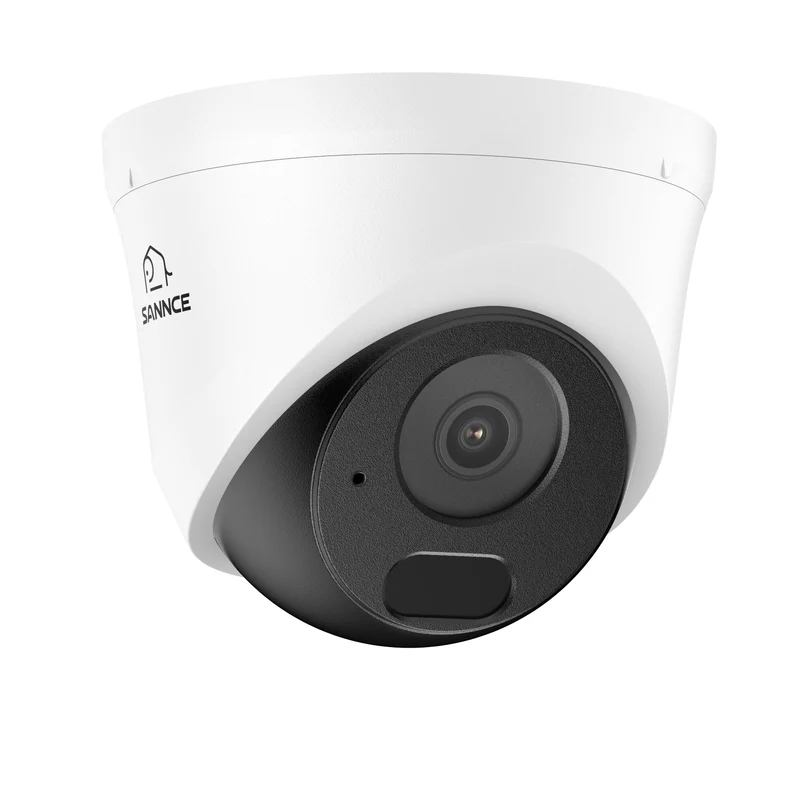

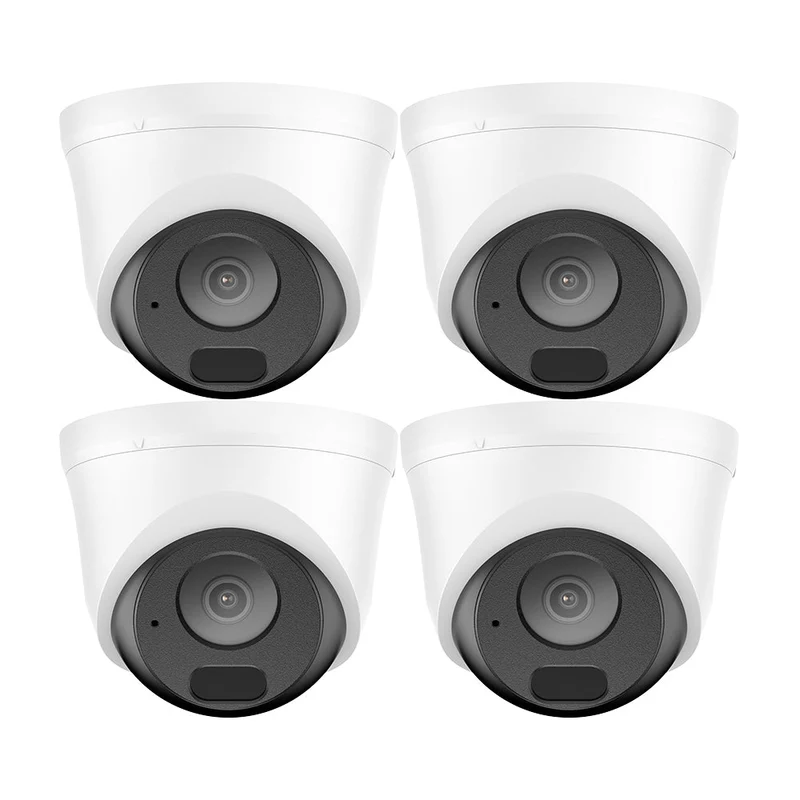

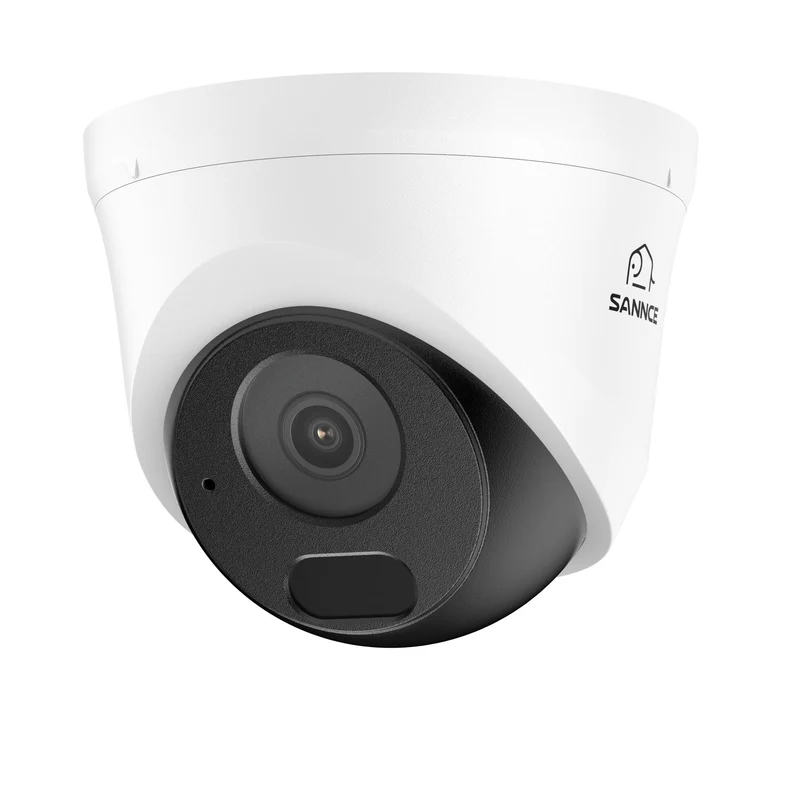

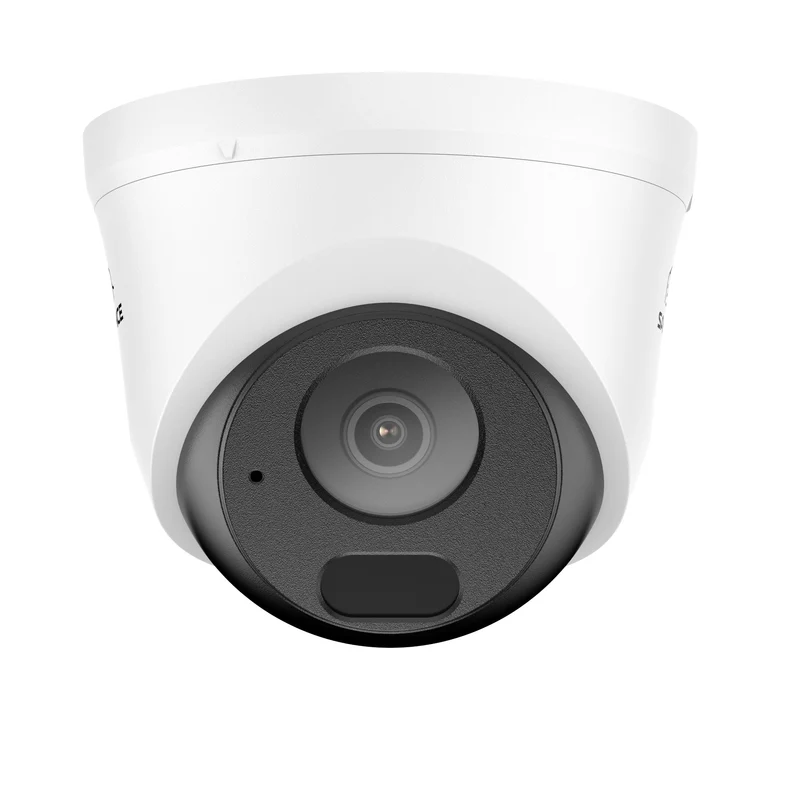

4PCS 3MP Full HD PoE IP Security Camera w/ Audio Recording for SANNCE NVR N98PBM

S+265/H.265 Compression Technology

Utilizes S+265 compression algorithm to reduce storage space by up to 75%. This allows the same-capacity hard drive to store longer recordings, reduces the frequency of hard drive replacements, and minimizes storage costs. It also decreases network transmission buffering, improving recording efficiency.

Full HD 2K Crystal Resolution

Experience crystal-clear visuals with our 2K/3MP high-definition camera, boasting a resolution of 2304¡Á1296. It offers 1.5 times the clarity of 1080P and triples the sharpness of 720P. Equipped with a 1/2.7" Progressive Scan CMOS sensor, it ensures crisp images both day and night.

In-Built Microphone

Our device, equipped with a built-in high-sensitivity microphone and advanced environmental noise filtering technology,can capture clear audio while recording video.

Equipped with BLC/DNR/HLC

With BLC (Backlight Compensation), 3D DNR (Digital Noise Reduction), and HLC (High Light Compensation) image enhancement technologies, the images are cleaner, and night vision is significantly clearer.

Smart Security with Custom Alerts & Privacy Protection
Set up key zones for monitoring. Any movement in these areas will trigger an instant alarm. Plus, video masking for private areas keeps your privacy intact. Safety and peace of mind, all in one.

IP67 Rated, Extreme Temperature Resistant

With an IP67 protection rating, it¡¯s fully dustproof and can withstand short-term immersion in water up to 1 meter deep. Plus, it operates reliably in extreme temperatures from -30°C to +60°C (-22°F to +140°F), ensuring consistent performance in harsh conditions.

What's in the Box

4X Camera

1X User Manual

2X 18-meter Ethernet cable

2X 30-meter Ethernet cable

4X Mounting Screw Bag

4X Warning Sticker

Specification

IP Camera (Model Number: I71EQ/I71EE)
Camera	Image Sensor	1/2.7" Progressive Scan CMOS
	Max resolution	Maximum resolution of mainstream: 3MP (2304¡Á1296). Maximum resolution of sub-stream: 4CIF (704¡Á576).
	Main Stream	50 Hz: 25@fps,2304*1296, 1920*1080,1280*720,704*576,640*480 60 Hz: 24@fps,2304*129630@fps,1920*1080,1280*720,704*480,640*480
	Wide Dynamic Range	DWDR
	Electron Shutter	1s~1/100000s
	Image Processing	Support electronic zoom, horizontal flip, vertical flip, video flip, strong light suppression, backlight compensation, fog penetration, day/night mode switching, color-to-black conversion, white balance, wide dynamic range, electronic fog penetration, 3D digital noise reduction, and Smart IR.
	Min. Illumination	Color 0.05 lux (@F2.0,AGC ON)£»B/W 0.01 lux (@F2.0,AGC ON)£»0 lux with IR on
	Color to B/W Conversion	Support internal synchronization, black and white, color, and timing settings.
	Video Parameters	The image brightness, contrast, saturation, chroma, and sharpness are adjustable.
	Video Blocking	4 pieces
Lens	focal length	4mm Fixed Focal Length Lens
	Angle of View	Horizontal FOV 74.7°, vertical FOV 41°, diagonal FOV 86.6°
	Aperture	F2.0
	Lens Mount Types	M12
Interface Performance	Network Port	1 RJ45 10 M/100 M self-adaptive Ethernet port
	Audio Port	Built-in MIC (Pickup Distance of 5m)
	Extended Protocol	Onvif Profile S/T
Coding Mode	Video Compression	H.265,S+265,H.264
	Video Bitrate	32Kbps~4Mbps
	Coding Type	Baseline Profile/Main Profile/High Profile
	Main Stream Default Bitrate	H.265,2Mbps
	Transmission Mode	Main and Sub Streams
	Audio Compression Algorithm	G.711A/G.711U
Light Function	Number of Infrared LEDs	2 pcs
	Night Vision Distance	Up to 100 ft/30 m
Other features	IE Access	Built-in Web 6.0
	IP Address	Support static and dynamic IP addresses and custom network cards
	Network Protocol	HTTP, TCP/IP,ICMP, FTP, DHCP, DNS,RTSP,CGI, NTP,UDP
	System Time Clock	NTP Time Calibration, Time Zone Setting, Daylight Saving Time
	Remote Administration	Network Remote Upgrade, Parameter Settings, and Configuration Import and Export
	General Alarm	Motion Detection
	General Functions	Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat.
General	Housing	Plastic
	Color	White
	Operating Power	PoE (802.3af), Max. 3W(Turn on the infrared
	Operating Temperature	-22 °F ~ 140 °F/-30 °C ~ 60 °C
	Indoor/Outdoor Use	Indoor/Outdoor
	Interface Protection	IP67, Level 4 Lightning Protection, Surge Protection up to 2KV.
	Dimension (L X W X H)	5.51" X 3.23" X 2.36"/ 140 X 82 X 60mm
	Weight	0.55 lb./250g
