Marca: SANNCE

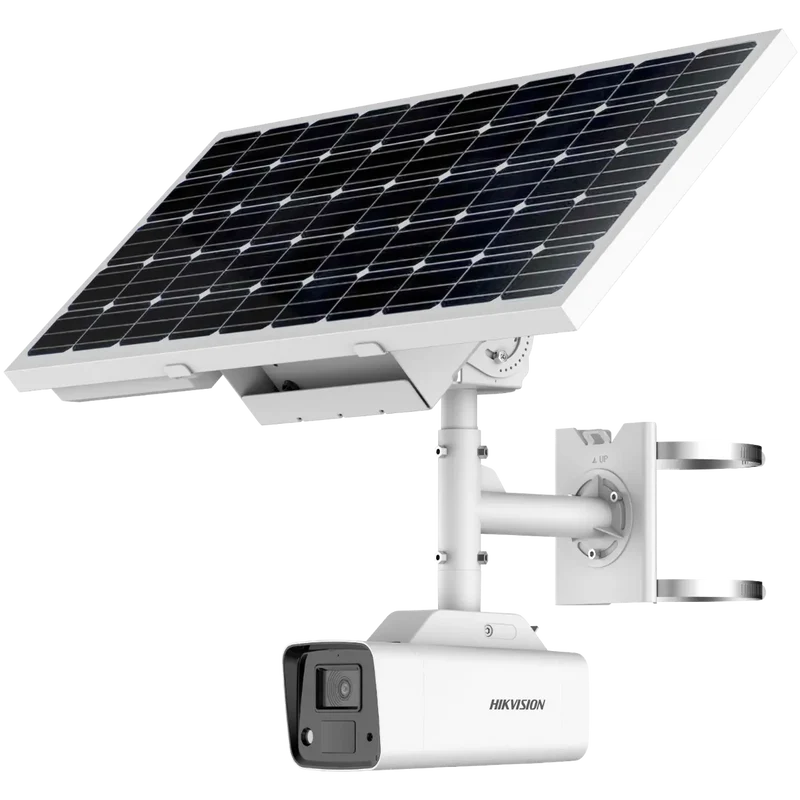

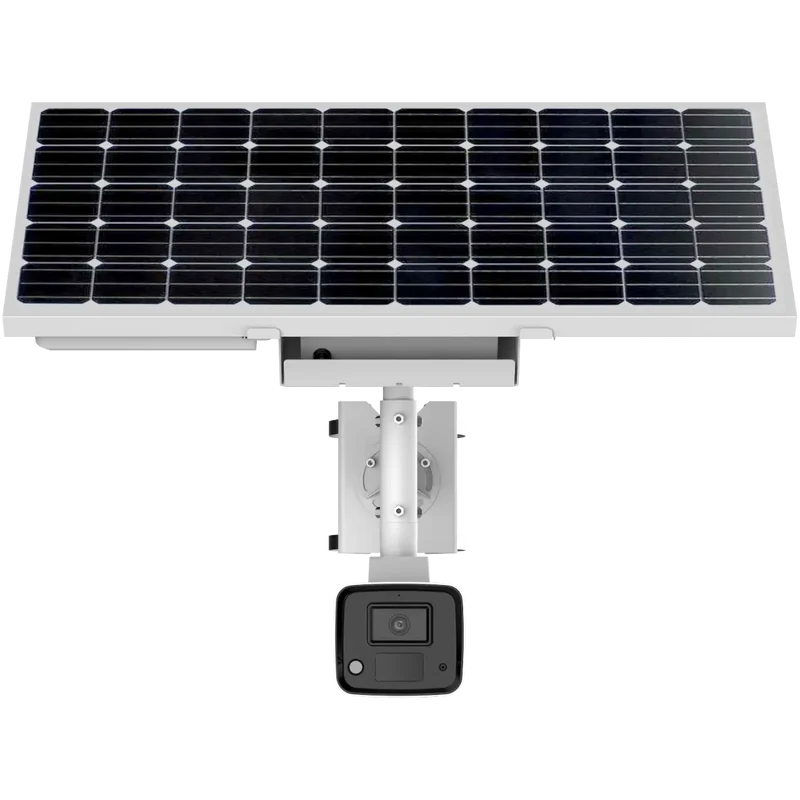

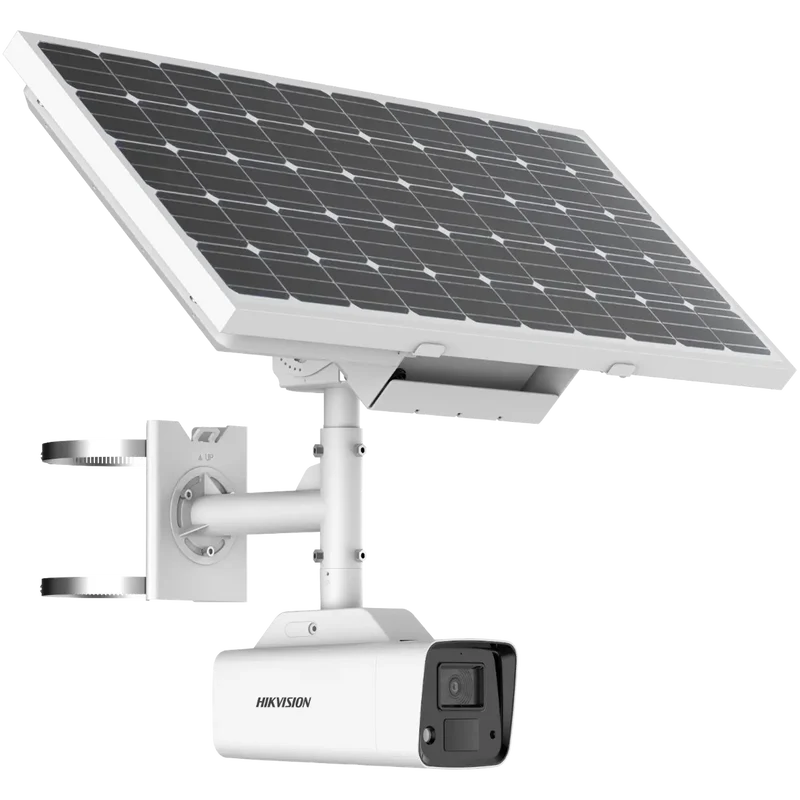

4MP ColorVu Solar-powered Security Camera Setup DS-2XS2T47G1

~~1802,99 €~~1072,09 €Oferta

Descripción

High-quality imaging with 4 MP resolution
Standalone with solar panel and built-in battery
24/7 colorful imaging
Support Human Detection
Efficient H.265+ compression technology
Provide real-time security via built-in two-way audio
Water and dust resistant (IP67)
Stability against category 12 typhoon
Support 4G (LTE-TDD/LTE-FDD/TD-SCDMA) communication

Specification

Camera
Image Sensor	1/3" Progressive Scan CMOS
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.0005 Lux @ (F1.0, AGC ON), B/W: 0 Lux with white light
Shutter Time	1/3 s to 1/100,000 s
Day & Night	24/7 color imaging
Angle Adjustment	Solar Cover: Pan: 0° to 358°, tilt: -40° to 0°
Angle Adjustment	Camera: Pan: 0° to 360°,tilt: -60° to 0°
Lens
Lens Type	Fixed focal lens, 4 and 6 mm optional
Iris Type	Fixed
Depth Of Field	4 mm: 2.7 m to ∞
Depth Of Field	6 mm: 5.9 m to ∞
Focal Length & FOV	4 mm, Horizontal FOV: 75°, Vertical FOV: 40°, Diagonal FOV: 89°
Focal Length & FOV	6 mm, Horizontal FOV: 49°, Vertical FOV: 27°, Diagonal FOV: 57°
Lens Mount	M12
Aperture Range	F1.0
DORI
DORI	4 mm, D: 82 m, O: 32 m, R: 16 m, I: 8 m
DORI	6 mm, D: 120 m, O: 47 m, R: 24 m, I: 12 m
Illuminator
Supplement Light Range	Performance mode: up to 30 m
Supplement Light Range	Proactive mode: up to 10 m
Supplement Light Type	White Light
Smart Supplement Light	Yes
Video
Main Stream	50 Hz: 12.5 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Main Stream	60 Hz: 15 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub-Stream	50 Hz: 12.5 fps (1280 × 720,640 × 480, 640 × 360)
Sub-Stream	60 Hz: 15 fps (1280 × 720, 640 × 480, 640 × 360)
Video Compression	Mainstream: H.265/ H.264
	Sub-stream: H.265/H.264/MJPEG
	H.264+ and H.265+: mainstream supports under performance mode
Video Bit Rate	32 Kbps to 8 Mbps
H.264 Type	Baseline Profile/Main Profile/High Profile
H.265 Type	Main Profile
Bit Rate Control	VBR/CBR
Scalable Video Coding (SVC)	H.265 and H.264 support
Region Of Interest (ROI)	1 fixed region for mainstream
Audio
Audio Compression	G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC-LC
Audio Bit Rate	64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	8 kHz/16 kHz
Environmental Noise Filtering	Yes
Event
Basic Event Detection	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Linkage	Upload to NAS/memory card, notify surveillance centre, trigger recording, trigger capture, and audible warning
Network
Network Storage	Auto network replenishment (ANR)
Protocols	TCP/IP, ICMP, HTTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, IGMP, QoS, UDP
Simultaneous Live View	Up to 6 channels
API	Open Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/Host	Up to 32 user levels: Administrator, Operator, and User
Security	Password protection, complicated password, basic and digest authentication for HTTP, TLS 1.1/1.2/1.3, WSSE, and digest authentication for Open Network Video Interface
Client	iVMS-4200, Hik-Connect, Hik-Central
Web Browser	Plug-in required live view: IE 10+
	Plug-in free live view: Chrome 57.0+, Firefox 52.0+
	Local service: Chrome 57.0+, Firefox 52.0+
Mobile Communication
Frequency	NL668-EU:
	LTE-TDD: B38/B40/B41
	LTE-FDD: B1/B3/B5/B7/B8/B20/B28
	WCDMA: B1/B5/B8
	GSM: B3/B5/B8
	NL668-LA:
	LTE-TDD: B38/B40
	LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/B17/B28/B66
	WCDMA:B1/B2/B3/B4/B5/B8
	GSM: B2/B3/B5/B8
	NL668-US:
	LTE-FDD: B2/B4/B5/B12/B13/B17/B66/B71
	WCDMA: B2/B4/B5
Uplink And Downlink Data Rate	Cat 4, uplink: 50 Mbps, downlink: 150 Mbps
SIM Card Type	Micro SIM
Standard	LTE-TDD,LTE-FDD,WCDMA,GSM
SNR	≥ 52 dB
Image Settings	Saturation, brightness, contrast, sharpness, gain, and white balance, adjustable by client software or web browser
Day/Night Switch	Day, Night, Auto, Schedule
Wide Dynamic Range (WDR)	Digital WDR
Image Enhancement	BLC, HLC, 3D DNR
Interface
Ethernet Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-Board Storage	Built-in memory card slot, supports microSD/ micro SDHC/ micro SDXC card, up to 256 GB. For eMMC storage, 50 GB is available for recording
On-Board Storage	Built-in eMMC storage, up to 64 GB
Built-In Microphone	Yes
Built-In Speaker	Yes
Reset Key	Yes
General
Power Supply	Power Consumption and Current:
	Typical power scenarios: 1.85 W (4 G working)
	Standby scenarios: 40 mW
	Max.. power consumption: 6 W
	Power Supply:
	12 VDC ± 25% (*For debugging only)
	40 W(deviation: ± 2 W) Solar panels
	Power Interface:
	Power supply interface: Φ5.5 mm coaxial power plug
	Extended solar panel: four-core aviation connector
Material	ADC12
Dimensions	679 mm × 443 mm × 760 mm (26.7" × 17.4" × 29.9")
Package Dimension	910 mm × 350 mm × 450 mm (35.8" × 13.8" × 17.7")
Weight	Approx. 11.570 kg (25.5 lb.)
With Package Weight	Approx. 16.21 kg (35.7 lb.)
Storage Conditions	-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
Start-up And Operating Conditions	-20 °C to 50 °C (-4 °F to 122 °F). Humidity 95% or less (non-condensing)
General Function	Heartbeat, mirror, flash log
Web Client Language	33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
Battery
Battery Type	Ternary lithium
Capacity	8.4 Ah × 2 packs
Max. Charging Voltage	12.6 V
Operating Temperature	Charge: -20 °C to 45 °C (-4 °F to 113 °F). Charging Condition: -20 °C to 45 °C (-4 °F to 113 °F) (deviation: ± 5 °C)
	Discharge: -20 °C to 55 °C (-4 °F to 131 °F)
	Discharging Condition: -20 °C to 55 °C (-4 °F to 131 °F) (deviation: ± 5 °C)
Battery Voltage	9 V to 12.6 V
Cycle Lifetime	Performance mode: 3.6 days
	Proactive mode: 6 days
	Standby mode: 30 days
Battery Life	More than 500 cycles
Battery Weight	Approx. 1400 g (3.1 lb.)
Approval
EMC	FCC (47 CFR Part 15, Subpart B);
	CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014
	RCM: AS/NZS CISPR 32: 2015
	IC: ICES-003: Issue 7
	*FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE and RCM certifications are only for the device sold in the European region.
RF	FCC ID (FCC Part 15.247(BT or 2.4G));
	IC ID (RSS-247(BT or 2.4G))
	CE-RED: EN 301489-1 V2.1.1 (BT or 2.4G), EN 301489-17 V3.1.1 (BT or 2.4G), EN 300328 V2.1.1 (BT or 2.4G), EN 62311: 2008 (BT or 2.4G)
	*FCC certification is only for the device sold in the North American region and the Latin American region. IC certification is only for the device sold in the North American region. CE certification is only for the device sold in the European region.
Safety	CB: IEC 62368-1: 2014+A11
	CE-LVD: EN 62368-1: 2014/A11: 2017
	LOA: IEC/EN 60950-1
	*CE and LOA certifications are only for the device sold in the European region.
Environment	CE-RoHS (2011/65/EU);
	WEEE (2012/19/EU);
	Reach (Regulation (EC) No 1907/2006)
	*CE certification is only for the device sold in the European region.
Protection	IP67: IEC 60529-2013
