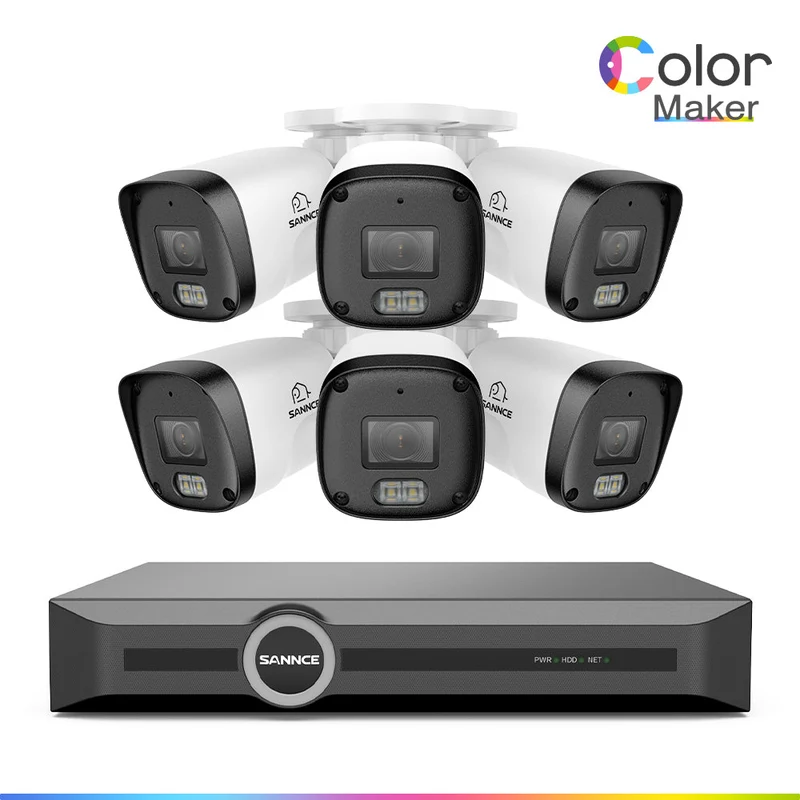

3MP 8-Channel PoE Security Camera System with 6MP NVR, F1.0 Full Color Night Vision, 6Pcs 2K Cameras, AI Human & Vehicle Detection, S+265

What's in the Box

1X NVR

6X Cameras

1X Power Supply

3X18M Network Cable

3X 30M Network Cables

1X User Manual

1X USB Mouse

1X 1M Short Network Cable

1X HDMI cable

6X Screw Package

6X Window Stickers

Specification

NVR (Model Number: N98PBM)
Video & Audio	Decoding Format	S+265; H.265; S+264; H.264
	IP Video Input	8CH PoE
	Video Output	HDMI: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz),independent output
		VGA: 1024×768(60Hz), (720P )1280×720(50Hz/60Hz), 1280×800(60Hz), 1440×900(60Hz), (1080P)1920×1080(50Hz/60Hz)
	Audio	G711A; G711U; ADPCM_DIV4
	Incoming/outgoing Bandwidth	60/40 Mbps
	Max Recording Resolution	Up to 6MP@30fps(Frame rate depends on IP camera)： 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×2, 3MP(30fps)×2, 1080P(30fps)×4, 720P(30fps)×8, 4CIF(30fps)×8
	Max Playback Resolution	Up to 6MP@30fps(Frame rate depends on IP camera)： 6MP(30fps)×1, 5MP(30fps)×1, 4MP(30fps)×1, 3MP(30fps)×2, 1080P(30fps)×3, 720P(30fps)×4
	Third-party Camera Access	ONVIF; RTSP
Record Playback	Multi-channel Playback	4
	Record Mode	Alarm Recording; Schedule Recording
	Storage Method	Local HDD
	Backup	USB storage device
	Playback Function	Play/Pause/Stop/Slow/Speed/Backwards 30s/Forwards 30s/Full Screen/Backup (Video Editing)/Digital Zoom
Alarm	General Alarm	Motion Detection; Mask Alarm; Alarm Input(IPC)
	Exceptions Alarm	Video Loss; IP Conflict; MAC Conflict; Network Disconnected; No Disk; Illegal Access; Disk Full; Disk R/W Error; Recording Abnormal; Abnormal found in smart of disk; Abnormal temperature of the disk; PoE Overload; Voltage Alarm(IPC); RTC Failure
Storage	HDD	1 SATA Interface
	HDD Capacity	Up to 6 TB capacity for each HDD
Network	Network Protoco	ARP; DDNS; DHCP; DNS; Easy DDNS; HTTP; ICMP; IGMP; IPv4; IPv6; NTP; RTCP; RTP; RTSP; SSH; TCP/IP; UDP; Unicast; UPnP
	Mobile Phone Access	Android; iOS; P2P
	System Compatibility	CGI; SDK
	Web	IE10+; Firefox52+; Edge89+; Safari11+; Chrome57+
External Port	USB	2×USB2.0
	HDMI	1×HDMI
	VGA	1×VGA
	Network Interface	1×RJ-45, 10/100 Mbps self-adaptive Ethernet port
PoE	PoE Interface	8×RJ45, 10/100 Mbps self-adaptive Ethernet port
	PoE Budget	45W
	Power per PoE Port	30W
	Standard	IEEE 802.3 af/at
General	UI Language	English;German; French;Italian;  Spanish
	Operating Power	DC48V 1.35A
	Power Consumption	<10W(without HDD&without PoE)
	Working Temperature	10 °C to 55 °C (14 °F to 131 °F)
	Dimensions (W X H X D)	225 mm × 231 mm × 45.1 mm
	Weight (Without Hard Disk)	kg

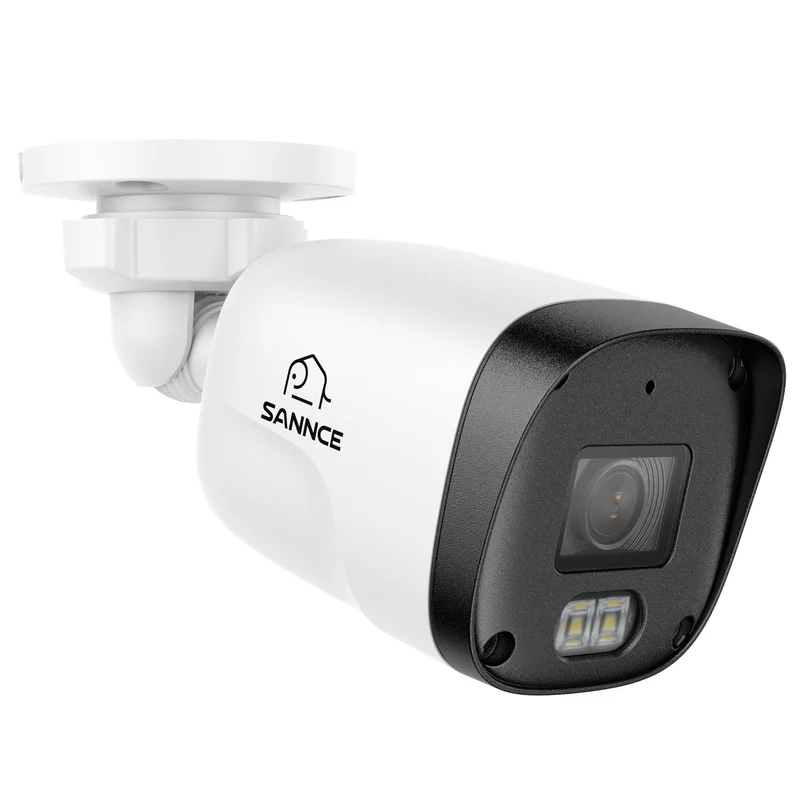

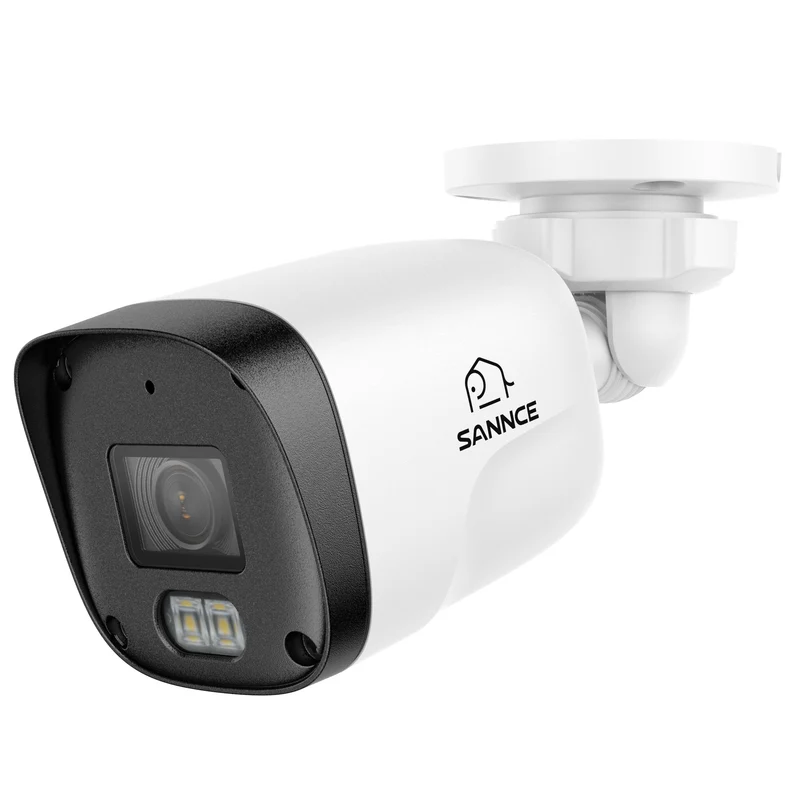

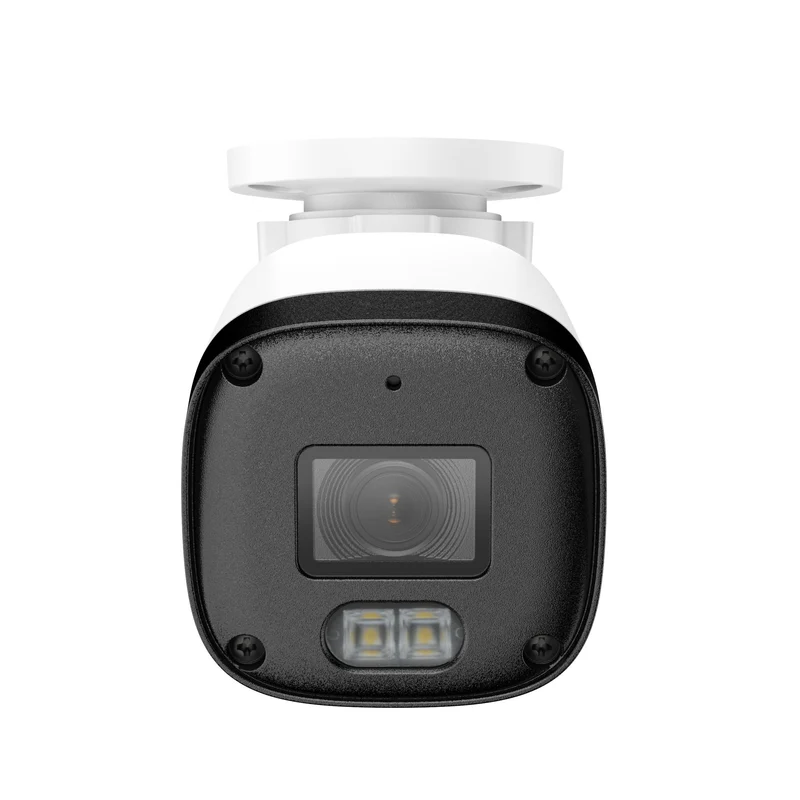

IP Camera (Model Number: I71ER)
Camera	Image Sensor	1/3" Progressive Scan CMOS
	Max resolution	Maximum resolution of main stream: 3MP (2304×1296). Maximum resolution of sub-stream: 4CIF (704×576).
	Main Stream	50 Hz: 25@fps(2304*1296, 1920*1080,1280*720,704*576,640*480) 60 Hz:  25@fps(2304*1296) 30@fps (1920*1080,1280*720,704*480,640*480)
	Wide Dynamic Range	≥110dB
	Electron Shutter	1s～1/100000s
	Image Processing	Support electronic zoom, horizontal flip, vertical flip, video flip, strong light suppression, backlight compensation, fog penetration, day/night mode switching, white balance, wide dynamic range, electronic fog penetration, and 3D digital noise reduction
	Min. Illumination	Color: 0.0005 LUX @ (F1.0, AGC ON)
	Color to B/W Conversion	Support internal synchronization, black and white, color, and timing settings.
	Video Parameters	The image brightness, contrast, saturation, chroma and sharpness are adjustable
	Video Blocking	4 pieces
Lens	focal length	4mm Fixed Focal Length Lens
	Angle of View	Horizontal FOV 77.6°, vertical FOV 42.9°, diagonal FOV 89.9°
	Aperture	F1.0
	Lens Mount Types	M12
Interface Performance	Network Port	1 RJ45 10 M/100 M self-adaptive Ethernet port
	Audio Port	Built-in MIC (Pickup Distance of 5m)
	Extended Protocol	Onvif Profile S/T
Coding Mode	Video Compression	H.265、S+265、H.264
	Video Bitrate	32Kbps~4Mbps
	Main Stream Default Bitrate	H.265：2Mbps
	Transmission Mode	Main and Sub Streams
	Audio Compression Algorithm	G.711A/G.711U
Light Function	Number of White Light LEDs	2 pcs
	White light fill light distance	Up to 66 ft/20 m
Other features	IE Access	Built-in Web 6.0
	IP Address	Support static and dynamic IP addresses, and custom network cards
	Network Protocol	HTTP、TCP/IP、UDP、ICMP、DHCP、DNS、NTP、IPv4、SSH、Unicast、Multicast、RTP、RTSP
	System Time Clock	NTP Time Calibration, Time Zone Setting, Daylight Saving Time
	Remote Administration	Network Remote Upgrade, Parameter Settings, and Configuration Import and Export
	General Alarm	Supports Human & Vehicle Detection
	General Functions	Support snapshot, one-key recovery, password protection, IP blacklist and whitelist filtering, IP auto-adaptation, and heartbeat.
General	Housing	Plastic
	Color	White
	Operating Power	PoE: IEEE 802.3af, Maximum Power
	Operating Temperature	-22 °F – 140 °F/-30 °C – 60 °C
	Indoor/Outdoor Use	Indoor/Outdoor
	Interface Protection	IP67, Level 4 Lightning Protection, Surge Protection up to 2KV.
	Dimension (L X W X H)	5.51" X 3.23" X 2.36"/ 140 X 82 X 60mm
	Weight	0.55 lb./250g
