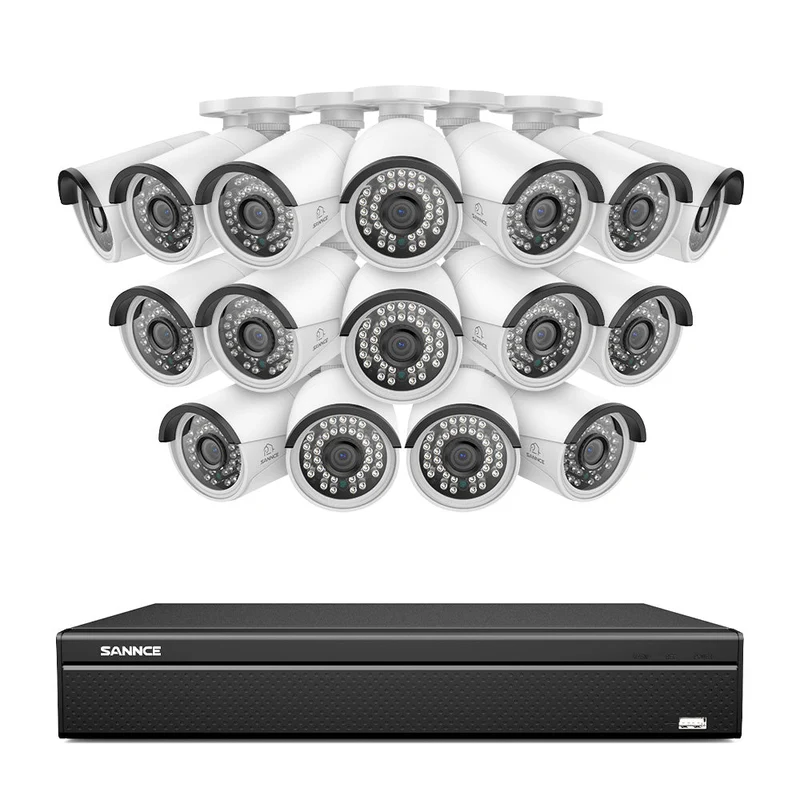

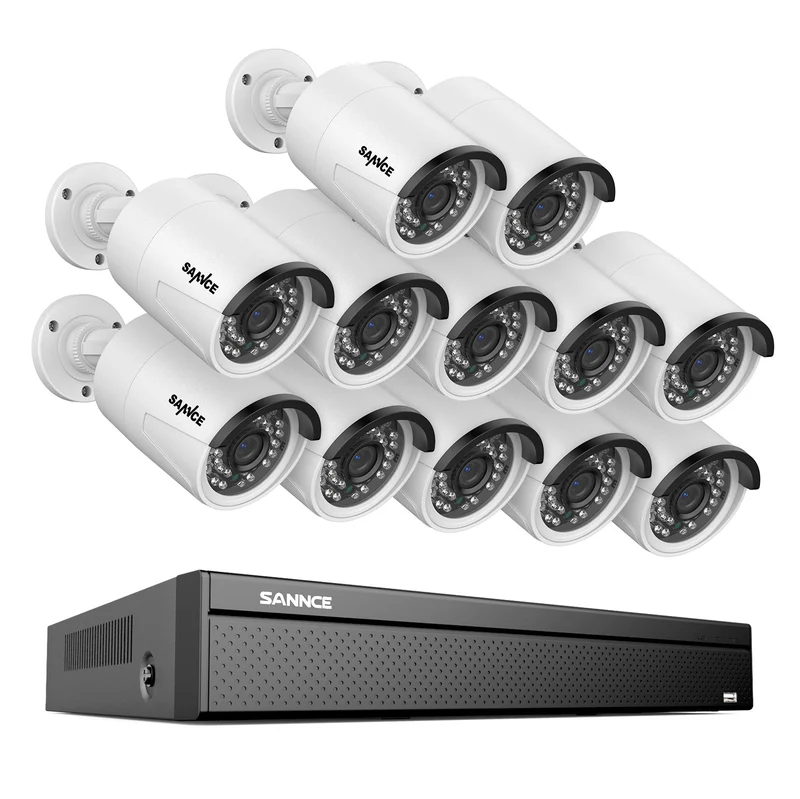

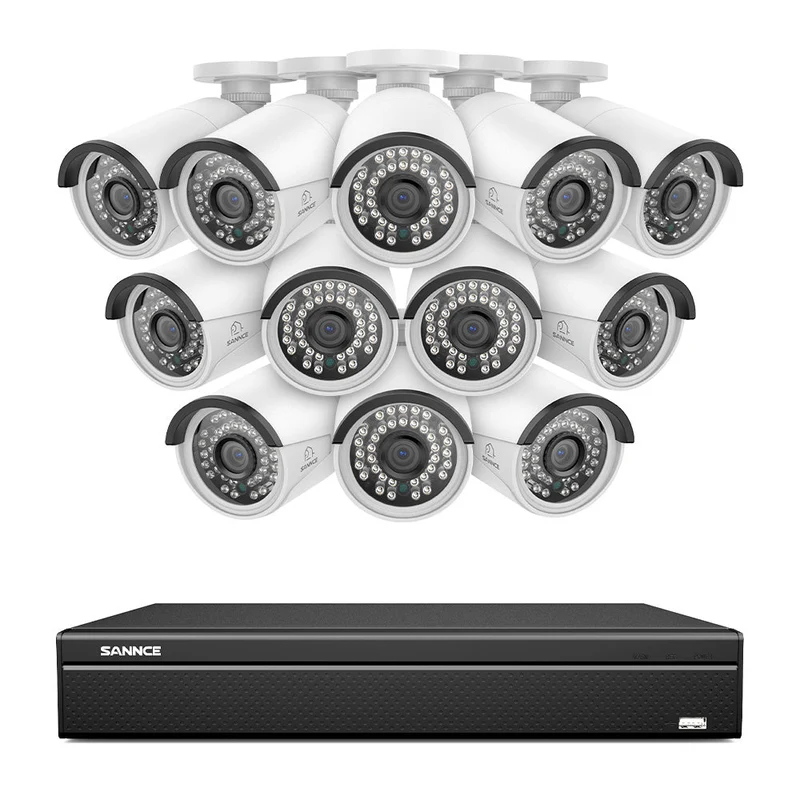

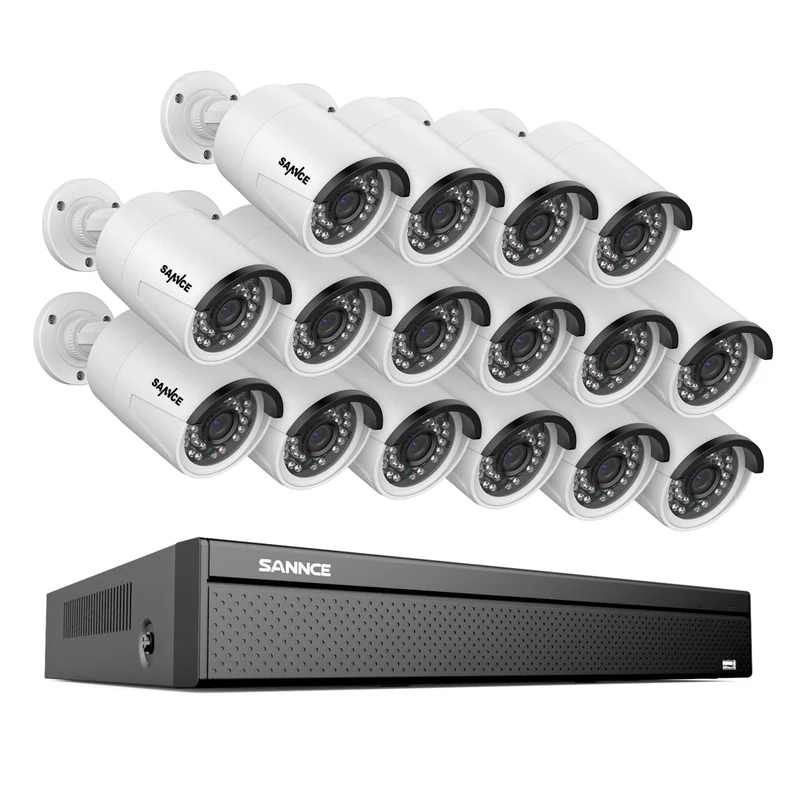

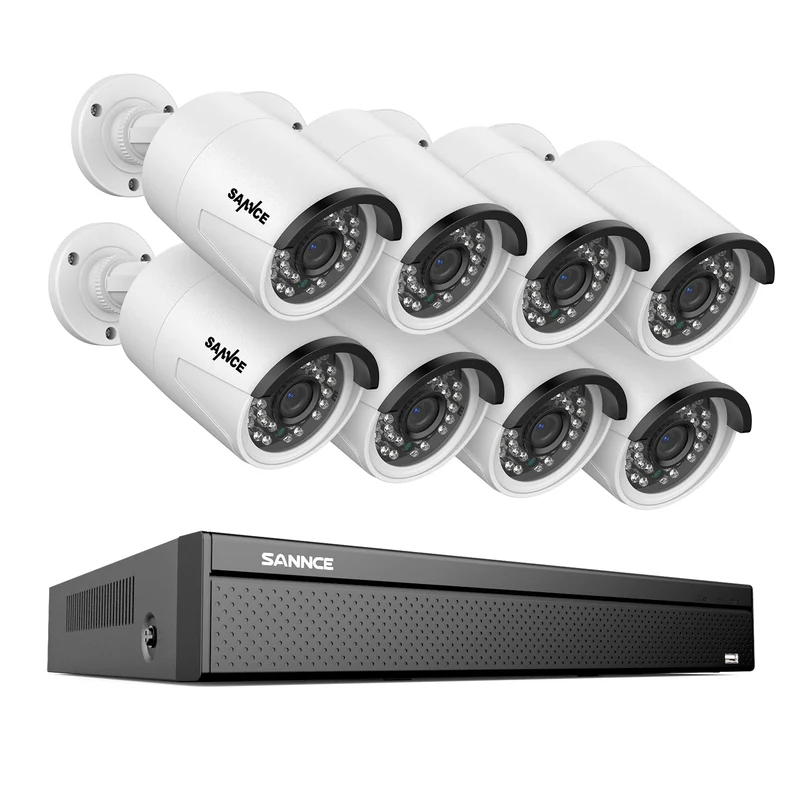

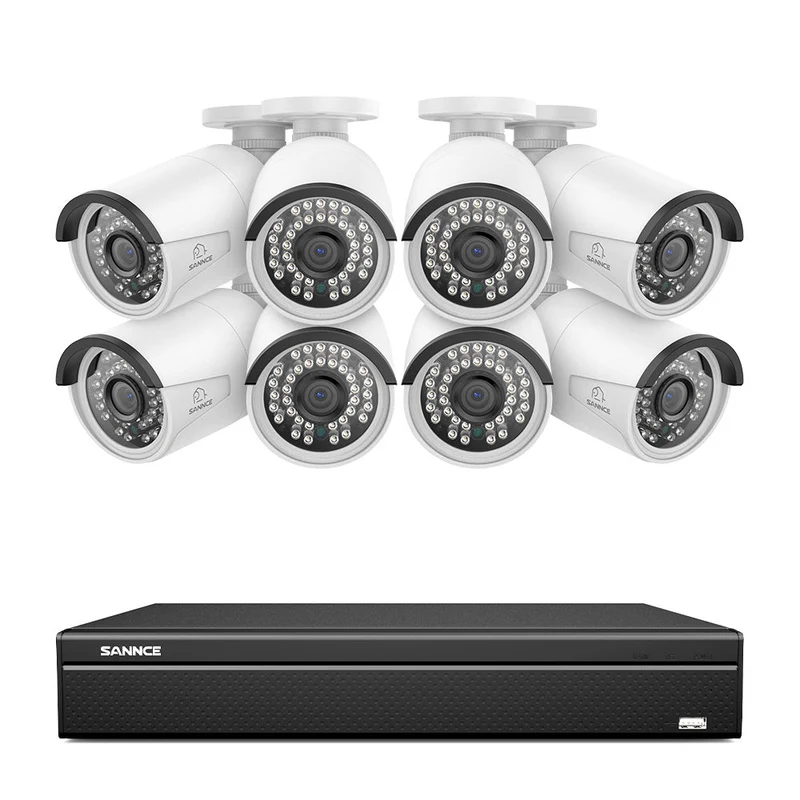

16 Channel 5MP PoE Security Camera System, 4K NVR & 5MP Outdoor PoE IP Cameras, ONVIF Supported, H.265, Audio Recording, Human/Vehicle Detection

Powerful 16-Channel 4K PoE NVR with Strong Compatibility

This NVR can connect up to 16 PoE IP cameras with up to 4K resolution simultaneously. It also works with 5MP/4MP HD SANNCE PoE IP cameras, allowing you to take full advantage of your cameras and have full control over your security system.

5MP Super HD Clarity Day & Night

These PoE cameras come with a powerful 1/2.7" CMOS sensor, digital WDR and DNR. The network security cameras capture every detail in stunning 5MP Super HD resolution, day and night.

Connectable to IP Cameras Supporting H.265

IP cameras supporting H.265/H.264+/H.264 coding formats can be connected to the NVR. After adding a camera that supports H.265, you can enable it to maximize storage space and enjoy ultra-long recording, up to 7 times longer than H.264 under normal conditions.

Customizable Motion Detection

You can mark relevant areas for motion detection to minimize false alerts and save storage space. Besides, if you do not want others to view recordings from certain areas, you can effectively block out these areas on each camera.

Smart Motion-Triggered Alerts

Whenever motion detection is triggered in your customized areas, you will receive instant email alerts with snapshots and app push notifications, even when you are away. This helps you know what is happening around your house and take appropriate precautions promptly.

Quick Remote Monitoring

Managing your security system on your smartphone, tablet, and PC is simple with our free viewing app. Download “SANNCE Vision” on your mobile device, quickly scan the QR code to add the system, and watch live video from anywhere in the world.

4K Video Output for Ultra-Clear Display

This surveillance NVR supports up to 4K video input and output. You can add 4K cameras to this NVR, then connect it to your 4K TV or monitor to display top-level megapixel image quality. It is easier to capture all the tiny details you need, such as license plates, faces, packages, and more.

True Plug & Play PoE Connection

PoE connection enables you to link the camera to the network video recorder via network cables for power, video, and Internet connection. No extra power cables are required for the cameras.

Built-in Mic to Pick Up Audio and Ambient Sound

A built-in microphone allows the camera to live stream and record both video and audio. You can not only see but also hear clearly what is going on or what happened, providing more complete evidence when needed.

IP66 Waterproof & All-Metal Housing

The IP66 waterproof rating ensures this outdoor IP camera can withstand torrential downpours, freezing snowstorms, and hot climates.

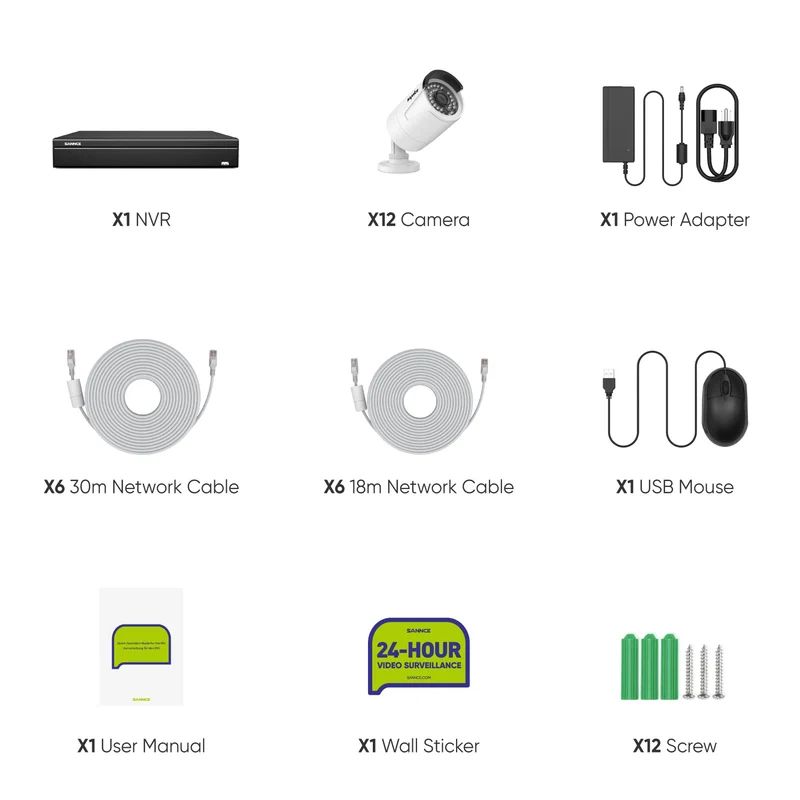

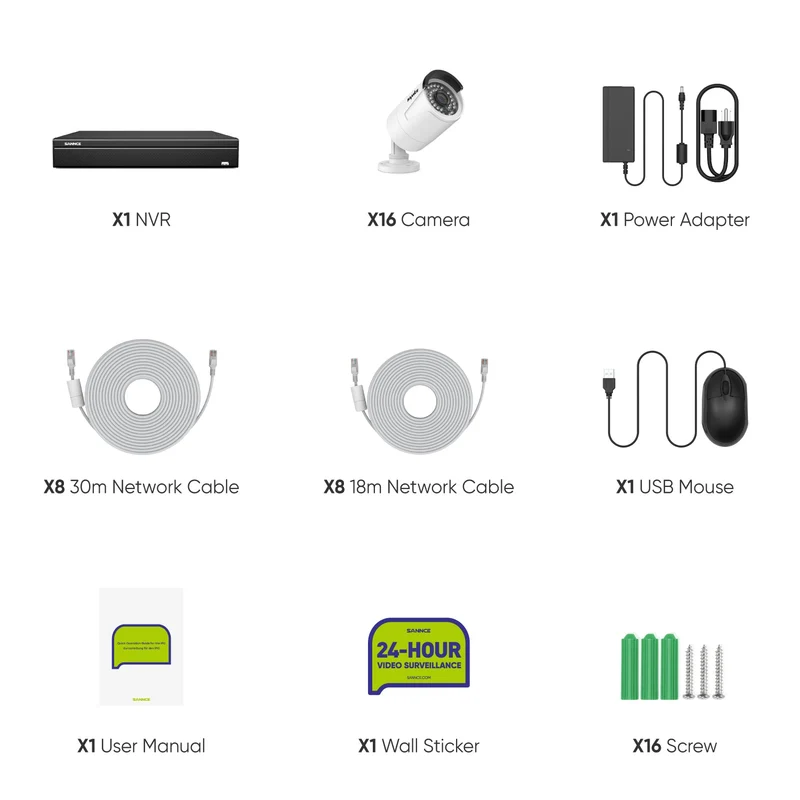

What’s in the Box

1 × NVR
PoE Cameras
60 ft / 18 m Ethernet Cables
100 ft / 30 m Ethernet Cables
1 × USB Mouse
1 × Power Adapter
Mounting Screw Bags
1 × User Manual

Specification

NVR
(Model Number: N96PBK)
Video & Audio	Video Compression	H.265
	IP Video Input	16CH POE
	Video Output	HDMI Up to 4K
	Audio Output	Support
	Max Recording Resolution	Up to 8M(3860x2160)
	Max Playback Resolution	Up to 8M(3860x2160)
	Max Playback Channel	4CH
	Max Playback Capacity	1CH 8MP
Hard Drive	HDD	1 SATA interface
	HDD Capacity	Up to 12TB capacity
External Interface	Network interface	RJ45x1 (10/100/1000M)
	POE	16 Ports (IEEE802.3at/af)
	USB	USB2.0 x3
General	Housing	Metal for the main part
	Operating Power	DC48V
	Power Consumption	10W (without HDD)
		POE: Max 30W for single port
	Working Temperature	32 °F - 131 °F /0 °C - 55 °C
	Dimensions(W x H x D)	10.2" x 9.6" x 1.9" / 260x245x47mm
	Weight (without hard disk)	1.68lbs / 760g(without HDD)
IP Camera
(Model Number: I51FQ)
Camera	Video Resolution	5MP (2880x1616)
	Image sensor	1/2.8" Progressive Scan CMOS
	Video compression	H.265+
	Audio Compression	G.711A
	Lens	3.6mm
	Angle of View	70°
	Number of Infra-Red LEDs	36
	Night Vision Distance	Up to 100ft/30m
	Wide Dynamic Range	Digital WDR
	IR Cut Filter	YES
	Ethernet	RJ45x1(10M/100M)
General	Housing	Metal
	Operating Power	DC12V;PoE (802.3af)
	Operating Temperature	-4 °F - 140 °F /-20 °C - 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP66
	Dimension (L x W x H)	6.7" x 2.6" x 2.6" / 170 x 65 x 65mm
	Weight	0.772 lbs / 350g
