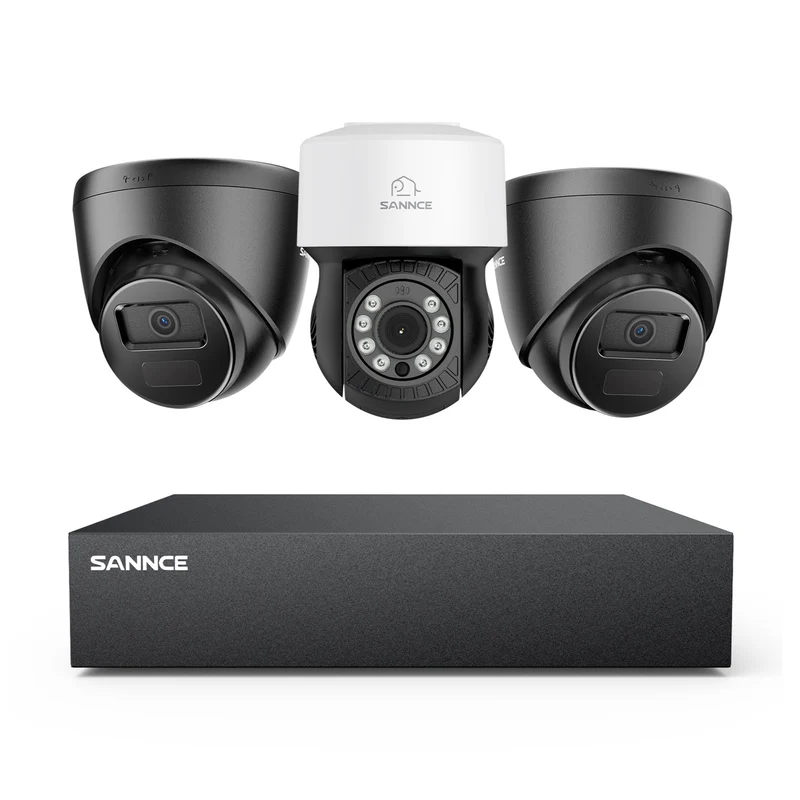

1080P 8 Channel PT Security Camera System - Hybrid 5-in-1 DVR, Pan & Tilt CCTV Camera, 100 ft Night Vision, Motion Detection, Outdoor, Waterproof

Visible Day & Night

This 1080P security camera captures clear and detailed videos, serving as a reliable device to safeguard your home property.

Crisp 1080p Lite Stream

The system adopts 2MP Progressive Scan CMOS sensor to protect your home and office. HDMI & VGA interface supports 2MP Full HD video output, delivering vivid footage without missing any moment.

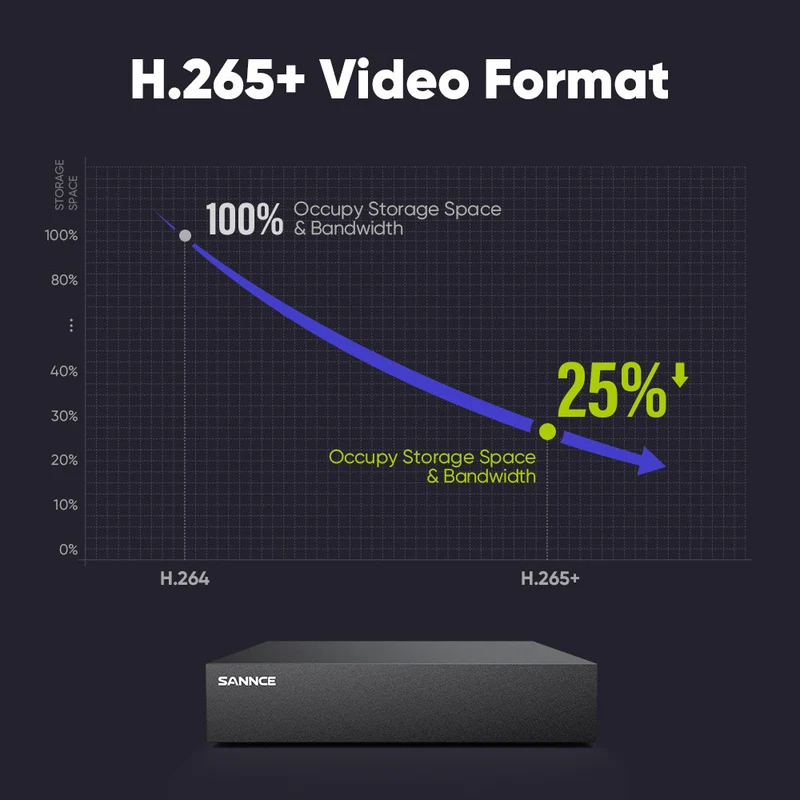

Advanced H.265 Pro+ Video Format

H.265 Pro+ coding extends recording duration before file overwriting, saving up to 80% storage space compared with H.264. Enjoy fast and lag-free live view when accessing DVR remotely.

Up to 100FT Night Vision with 8PCS IR LEDs

8 built-in infrared LEDs capture sharp images up to 100 feet even in complete darkness. True 1080p clear monitoring available round the clock.

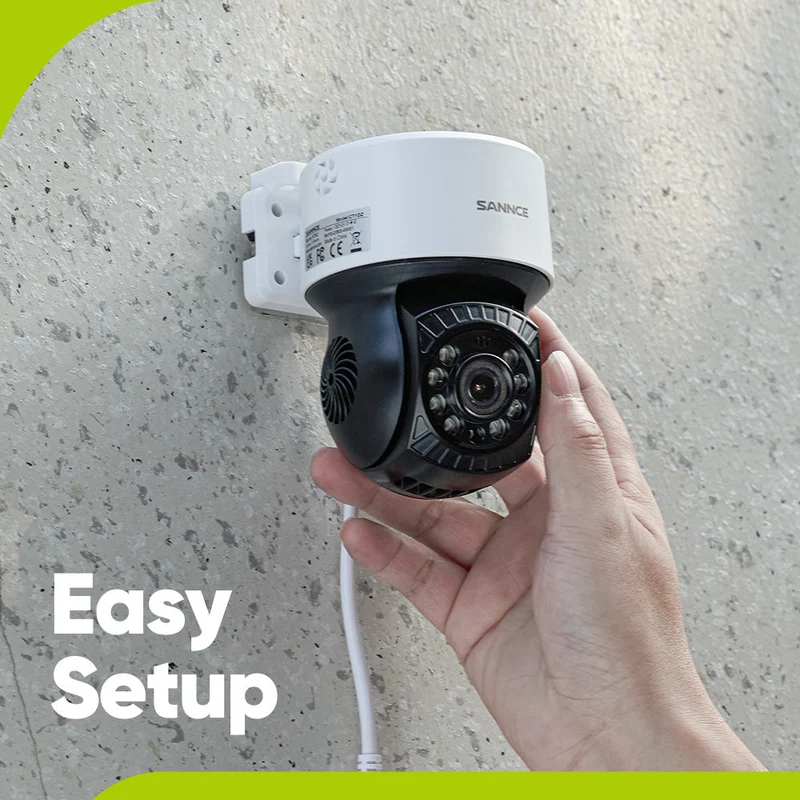

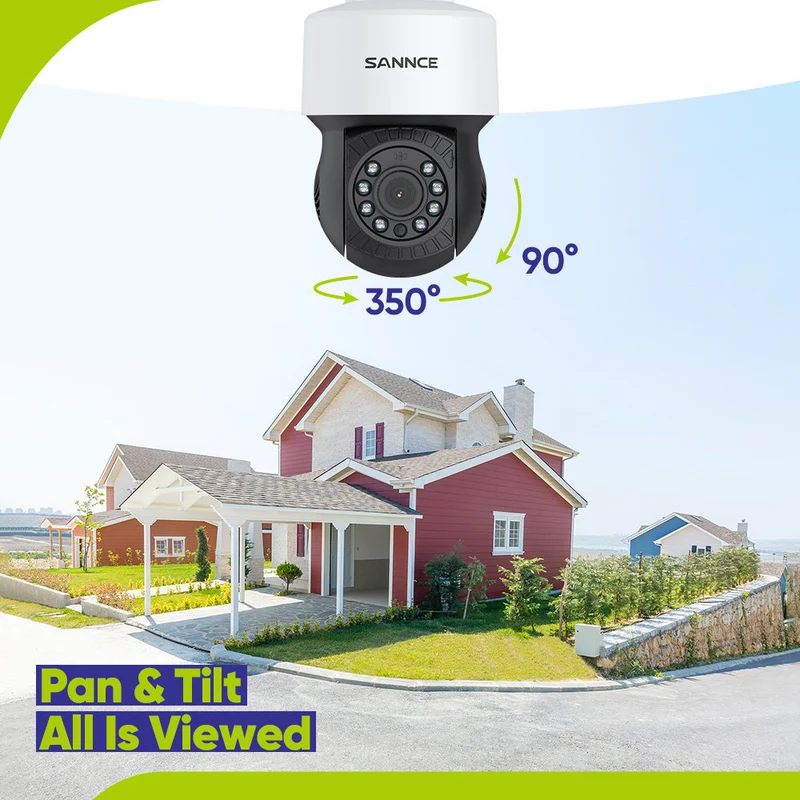

Up & Down for All-around View

Pan-tilt structure provides 360° horizontal and 90° vertical viewing angle. Equipped with 3.6mm lens, offering 92° wide field of view for comprehensive monitoring.

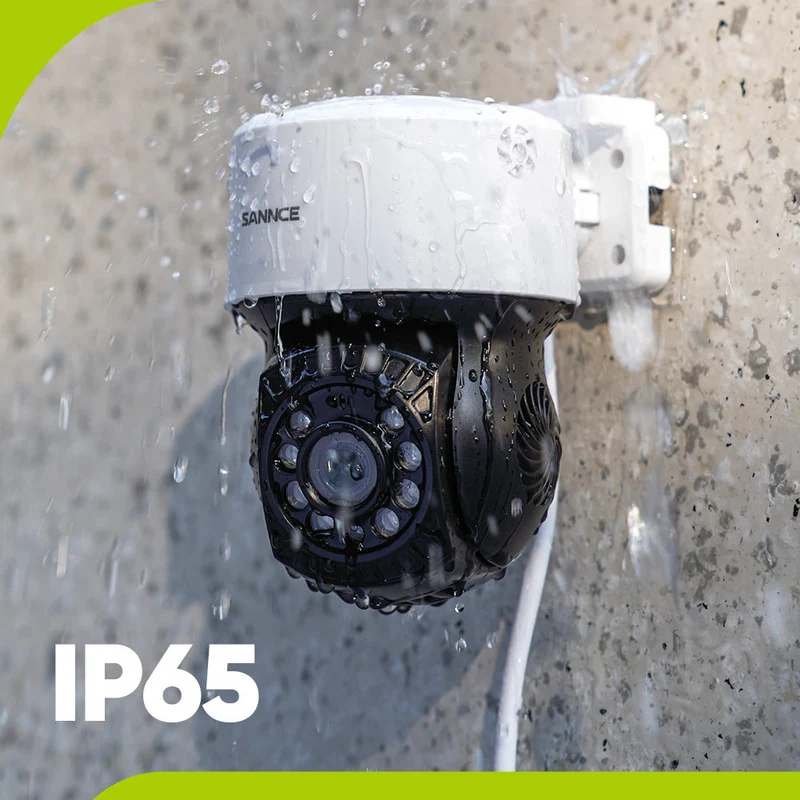

IP65 Dust and Waterproof Rating

IP65 weatherproof design adapts to indoor and outdoor scenarios, working stably at -40°F to 140°F. Ideal matching surveillance device for home and business DVR systems. DC12V power adapter is included.

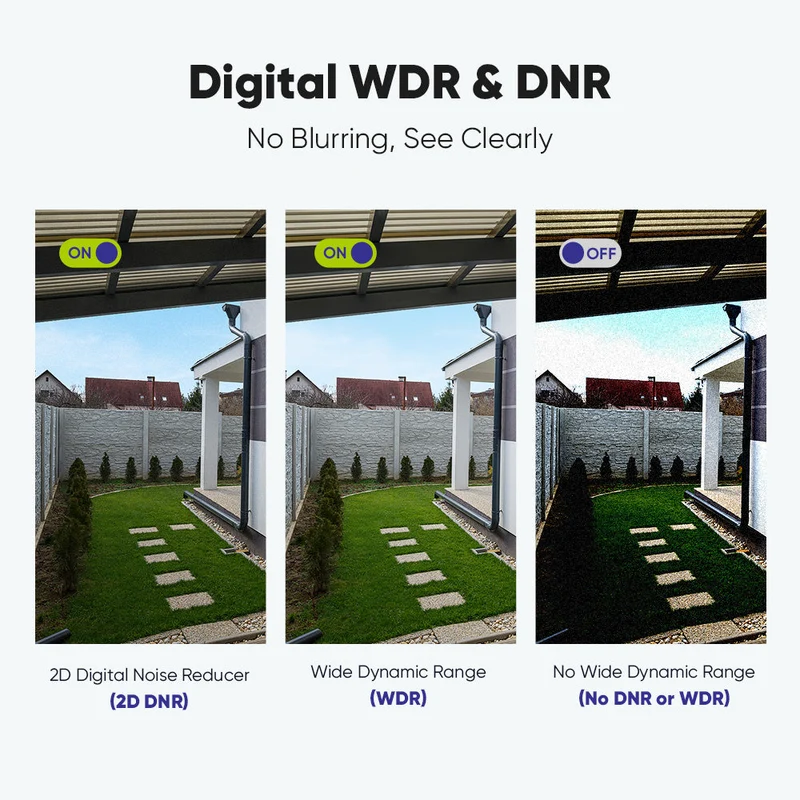

Image Enhancement with DNR & Digital WDR

Digital WDR balances light contrast to present distinct images under complex lighting. DNR technology effectively eliminates noise and optimizes video definition.

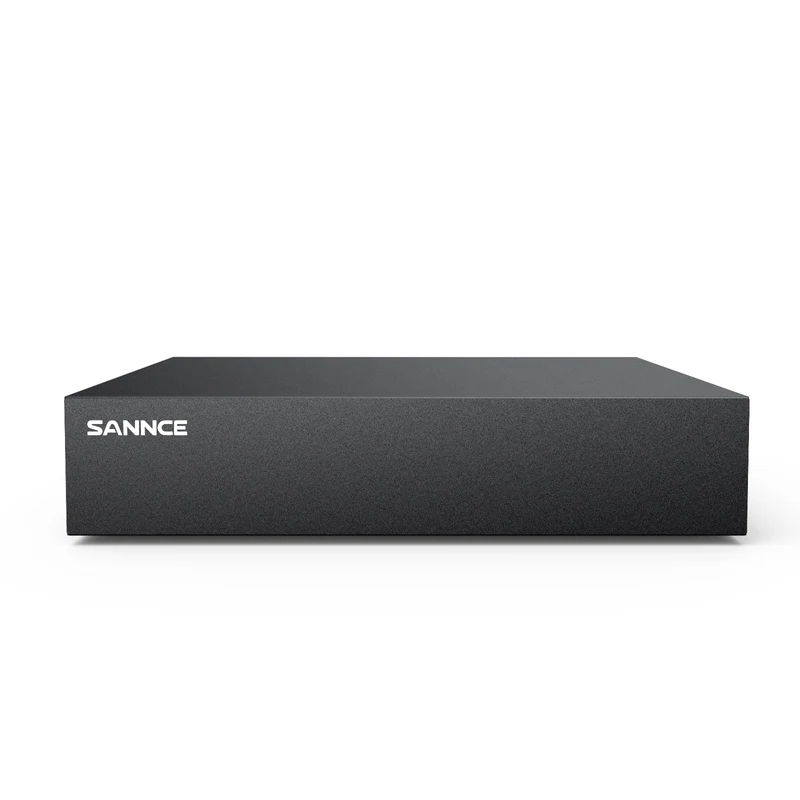

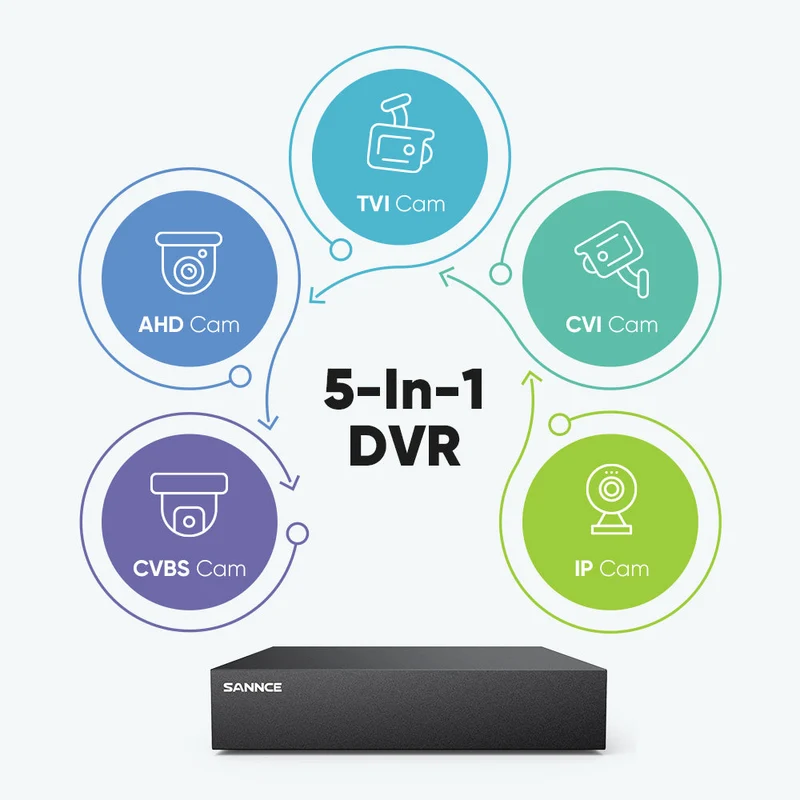

Powerful 5-in-1 DVR

SANNCE 8-channel DVR supports 2MP TVI/AHD/CVI/CVBS analog cameras and 2MP IP cameras. Compatible with various camera types to realize 24-hour continuous recording.

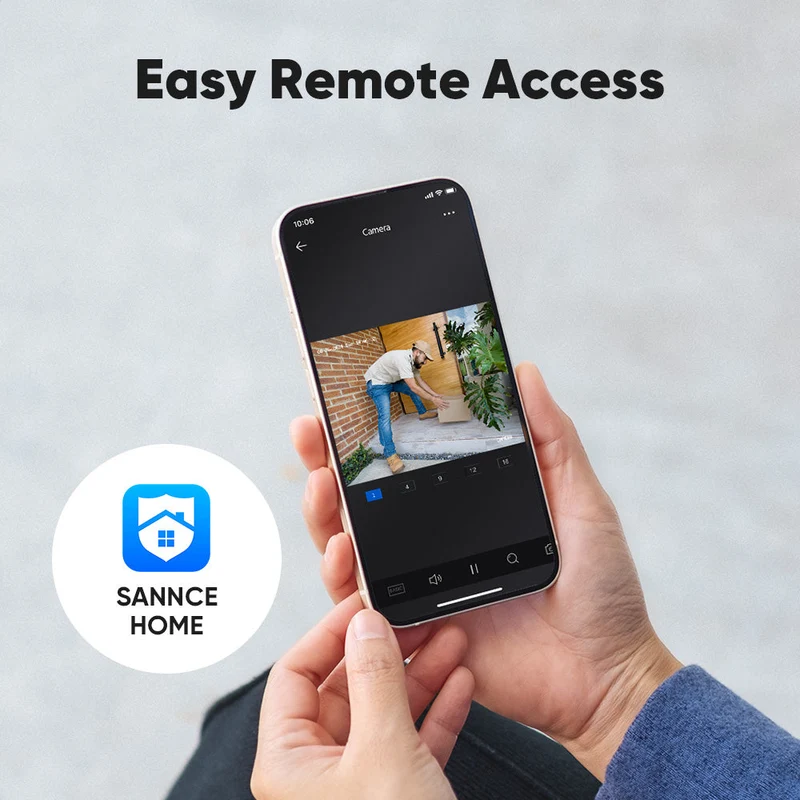

24/7 Security in Your Hand

Access DVR via mobile phone app to watch real-time high-definition footage anytime. Keep track of your house and family no matter you are working or traveling.

Intelligent Motion Alerts

Instant motion detection notifications will be pushed via email and app. Customize monitoring zones such as back door, garage and doorway to obtain accurate alert messages.

Smart Playback & USB Backup

Quickly search and play motion-triggered videos to save viewing time. Support USB flash drive connection for local video backup.

What's in the Box
2X Camera, 1X PT Camera, 1X DVR, 3X BNC Cable, 3X Power Adapter, 1X 1-to-2 Power Splitter, 3X Mounting Screws Bag, 1X Window Warning Sticker, 1X User's Manual Specifications

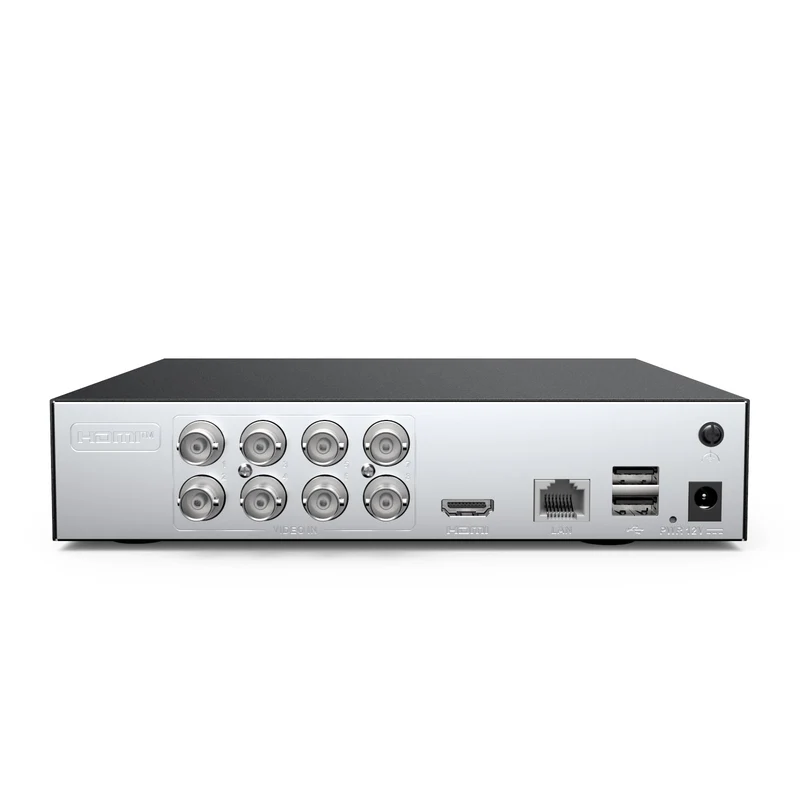

DVR (Model Number: DT81BC)
Video & Audio	Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
	Video Input	8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)
	Video Output	HDMI up to 1080p/60 Hz
	Audio Input/Output	0/8-ch via coaxial cable
	Supported Camera Types	1080p@15 fps, 720p@15 fps
	Analog HD Playback Resolution	1080P Lite(960×1080)/720p(1280×720)@15fps
	IP Camera Input	2-CH
	IPC Recording Resolution	Up to 5MP
	Max Playback Channel	8CH (1080 lite)
	Human Detection	Support
	Vehicle Detection	Support
	ONVIF	Support
Hard Drive	HDD	1 SATA interface
	HDD Capacity	Up to 4TB capacity (3.5 inch)
External Interface	Network Interface	RJ45×1(10/100)
	USB	USB 2.0×2
General	Working Temperature	14°F – 113°F / -10°C – 45°C
	Dimensions (W X H X D)	193×195×43mm
	Weight	≤1Kg
	Operating Power	DC12V, ≤ 18W

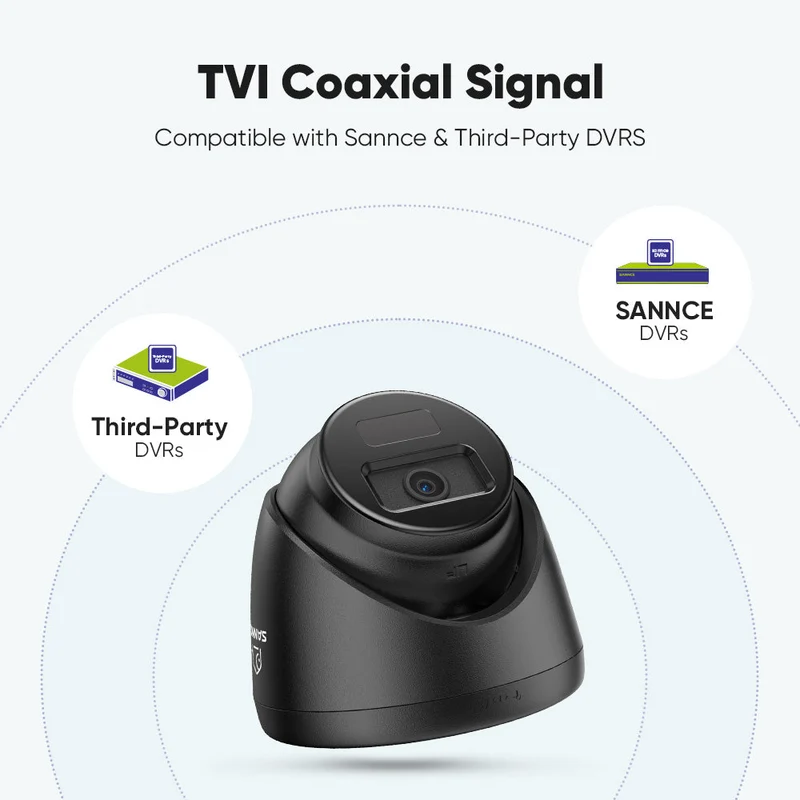

HD Camera (Model Number: CT1GW)
Camera	Image Sensor	2MP CMOS Image Sensor
	Video Resolution	1920 (H) X 1080 (V)
	Signal System	PAL/NTSC
	Frame Rate	PAL: 1080p@25 fps NTSC: 1080p@30 fps
	Lens	3.6 mm
	Min. Illumination	Color: 0.02 Lux @(F1.2,AGC on); 0 Lux with IR on
	Angle of View	horizontal FOV: 73°, vertical FOV: 39°
	Number of Infrared LEDs	1
	Night Vision Distance	Up to 66ft/20 m
	DNR	2D DNR
	Wide Dynamic Range	DWDR
	IR-Cut Filter	Yes
	Video Output	HD BNC X1
General	Housing	Plastic
	Color	Black
	Operating Power	DC 12 V

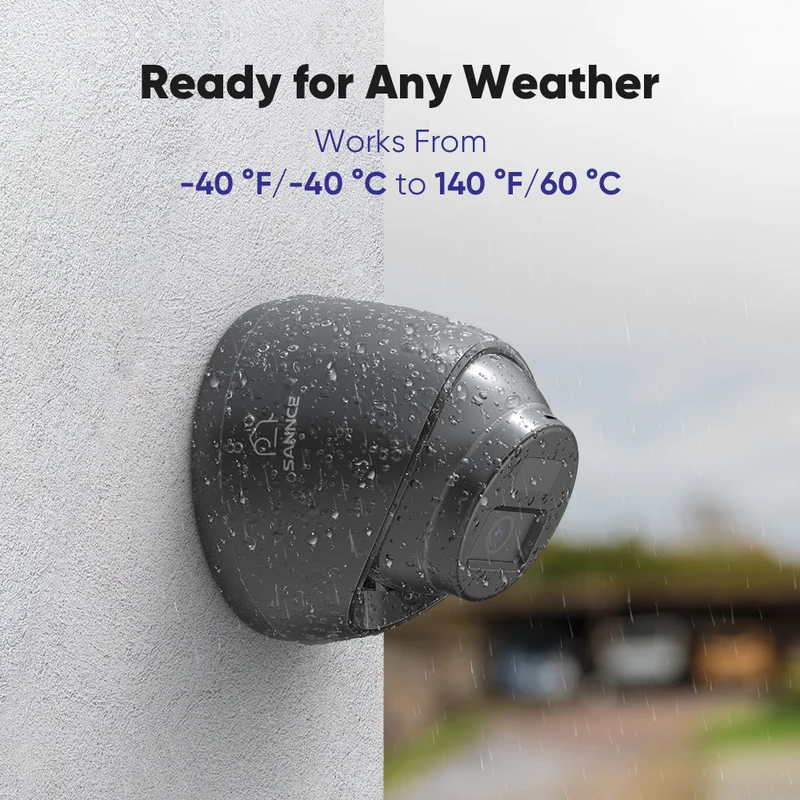

	Operating Temperature	-40°F ~ 140°F / -40°C ~ 60°C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP67
	Dimension (L X W X H)
	Weight

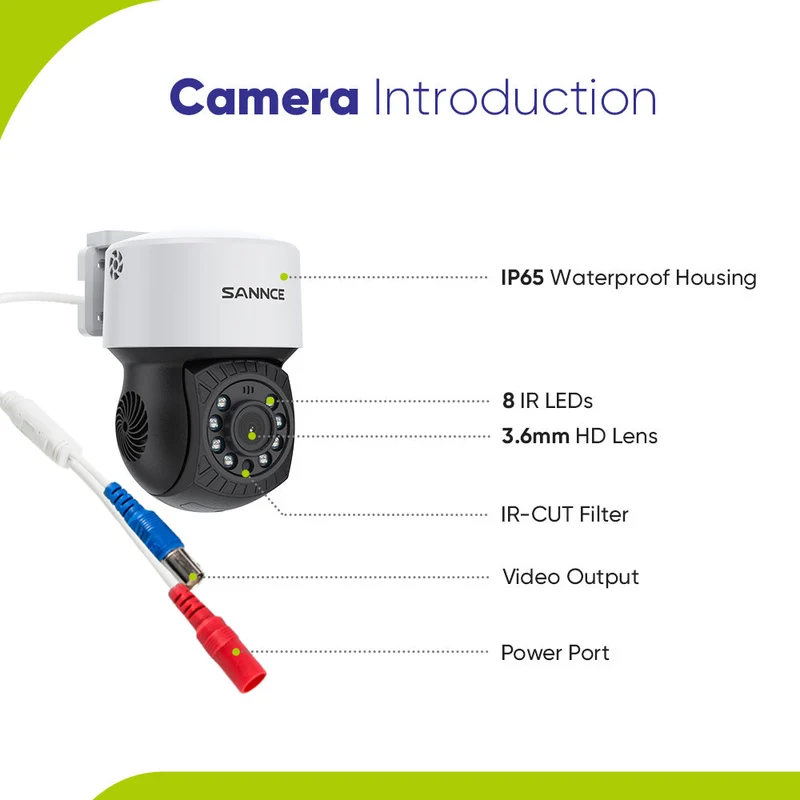

HD Camera (Model Number: CT1DZ)
Camera	Video Resolution	HD 1080P
	Signal system	PAL/NTSC
	Image sensor	Progressive Scan CMOS
	Lens	3.6mm
	Min. Illumination	0.02Lux@(F1.2 AGC ON),0Lux with IR on
	Horizontal rotation angle	350°
	Vertical rotation angle	90°
	Number of Infra-Red LEDs	8
	Night Vision Distance	Up to 100ft/30m
	DNR	DNR
	Wide Dynamic Range	Digital WDR
	IR Cut Filter	Yes
	Video Output	HD BNCx1
General	Housing	Plastic
	Operating Power	DC12V
	Operating Temperature	-4°F – 140°F / -20°C – 60°C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP65
	Weight	0.57 lbs / 260g
