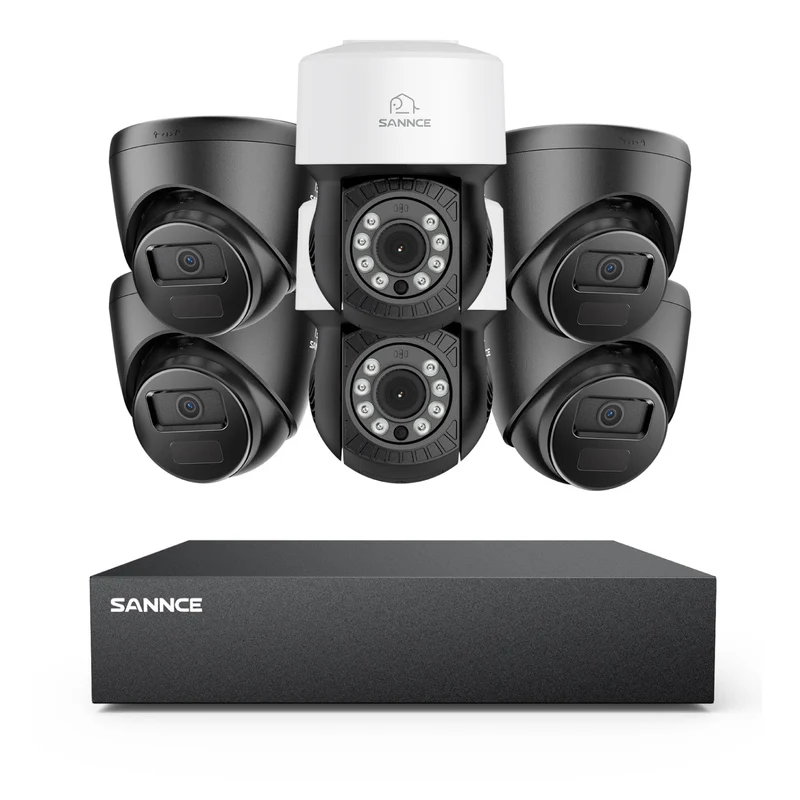

1080P 8 Channel PT Security Camera System - Hybrid 5-in-1 DVR, Pan & Tilt CCTV Camera, 100 ft Night Vision, Motion Detection, Outdoor, Waterproof

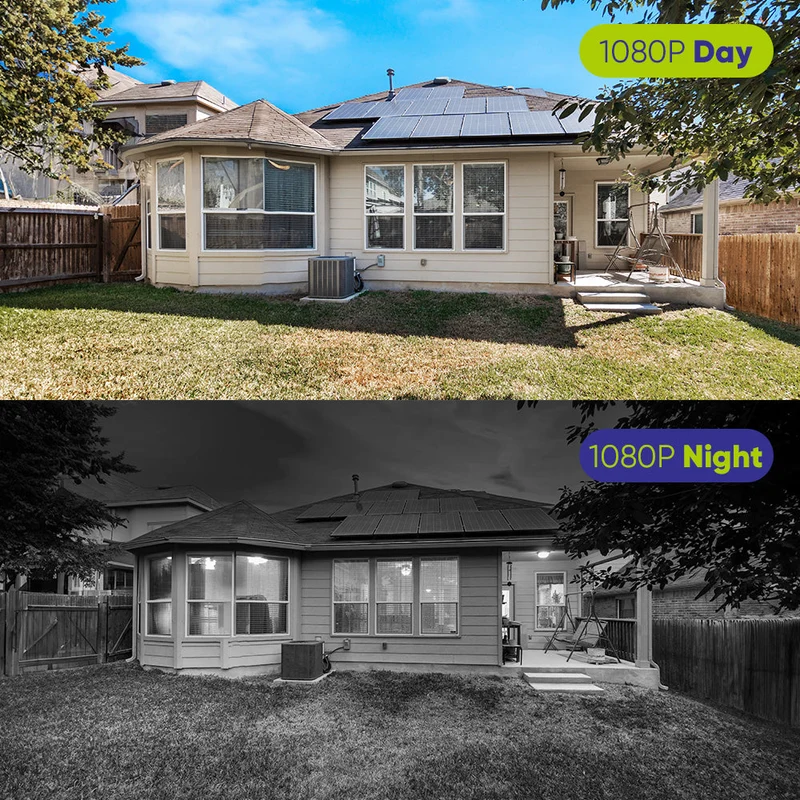

Visible Day & Night

This 1080P security camera delivers clear and detailed footage, serving as an ideal choice to safeguard your home property.

Crisp 1080p Lite Stream

The system adopts 2MP Progressive Scan CMOS sensor to offer reliable visual protection for residences and offices. Equipped with HDMI & VGA ports, it outputs 2MP full high-definition images with vivid details without missing any moments.

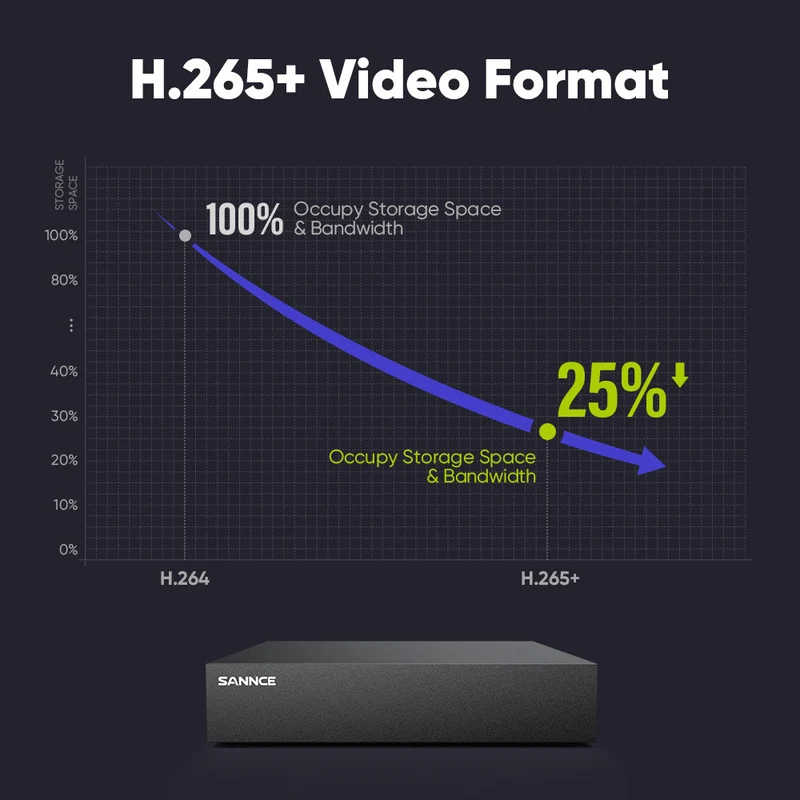

Advanced H.265 Pro+ Video Format

H.265 Pro+ encoding extends recording duration before data overwriting, saving up to 80% storage space compared with H.264 format. It ensures smooth and lag-free video streaming during remote DVR access.

Up to 100FT Night Vision with 8PCS IR LEDs

Built-in 8 infrared LEDs enable the camera to capture sharp 1080P images within 100 feet even in pitch-dark environments, achieving round-the-clock clear monitoring.

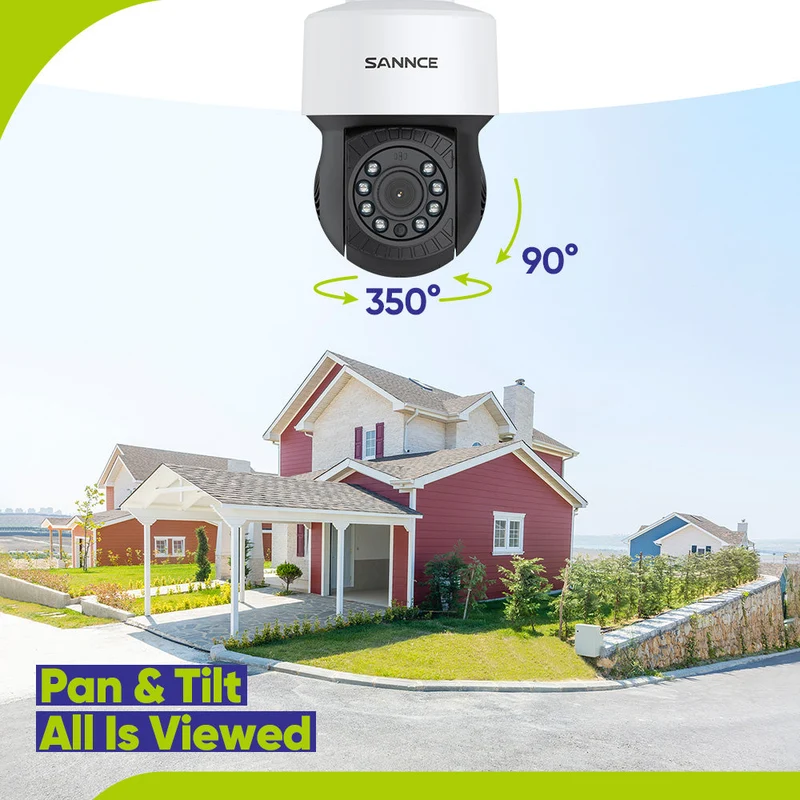

Pan & Tilt for All-around View

The pan-tilt camera features 360° horizontal rotation and 90° vertical rotation for wide coverage. The 3.6mm lens offers 92° viewing angle to keep all areas under surveillance.

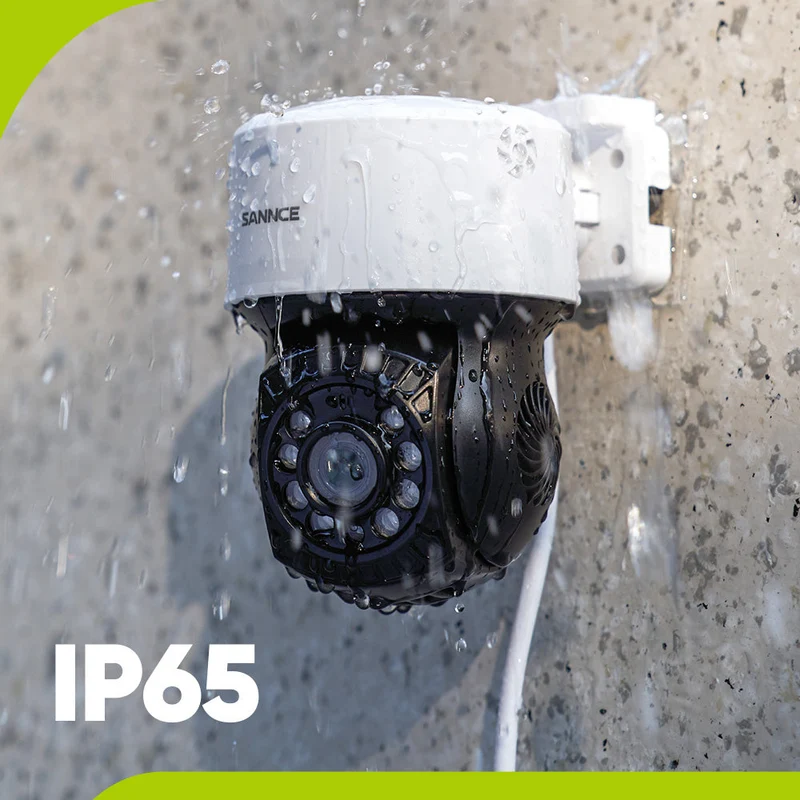

IP65 Dust and Waterproof Rating

With IP65 waterproof and dustproof performance, the camera works steadily indoors and outdoors at temperatures from -40°F to 140°F. It perfectly matches the DVR system for home and business security use, and DC12V power supply is included.

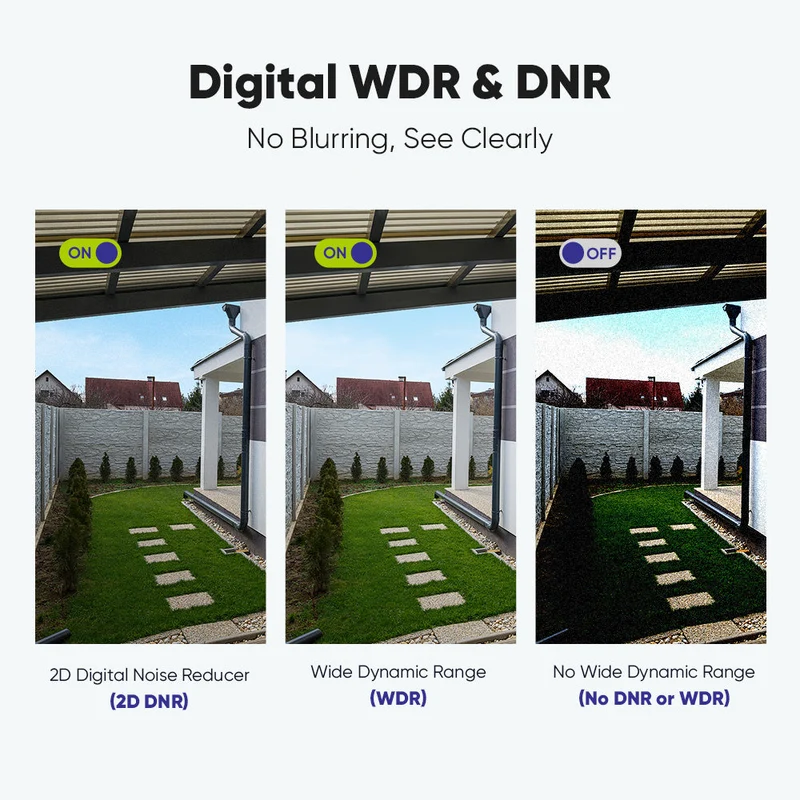

Image Enhancement with DNR & Digital WDR

Digital WDR balances light contrast to present distinct pictures under harsh lighting conditions. DNR technology effectively eliminates image noise for cleaner surveillance footage.

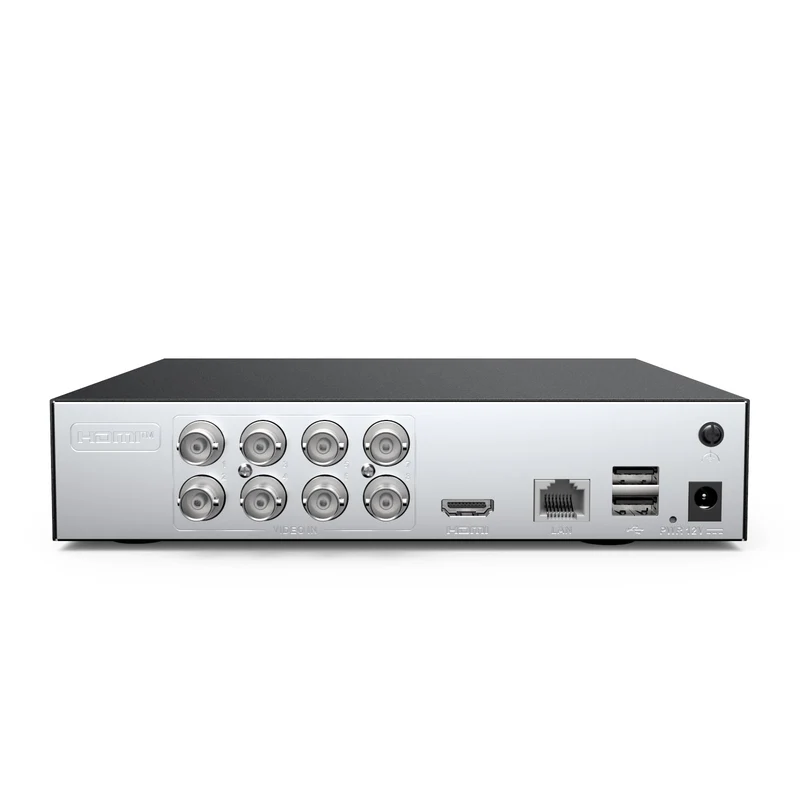

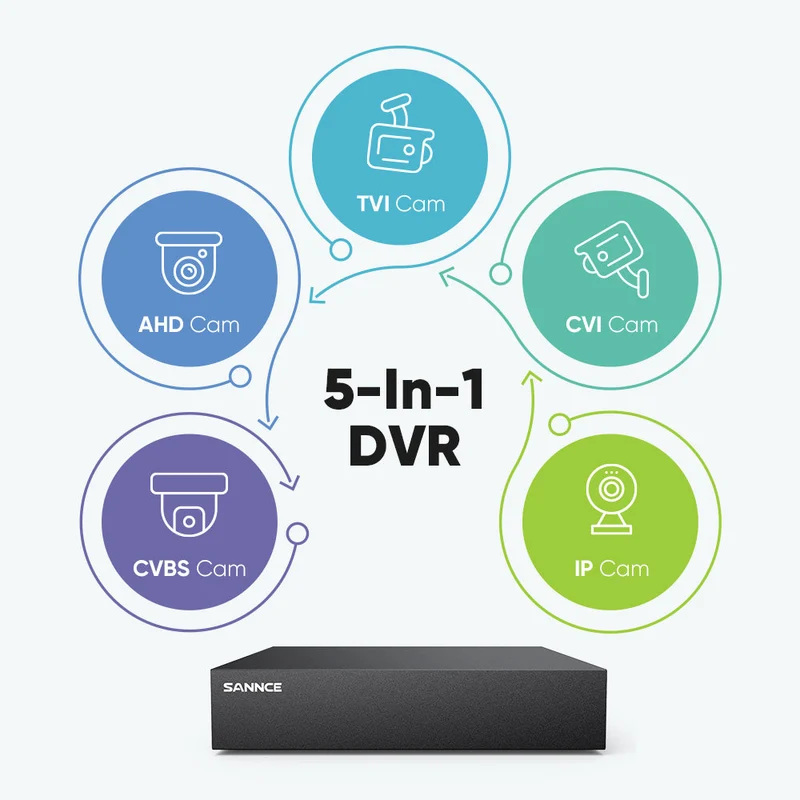

Powerful 5-in-1 DVR

This 8-channel DVR supports 8 channels of 2MP TVI, AHD, CVI, CVBS analog cameras and 2 channels of 2MP IP cameras. It connects diverse camera types to realize non-stop 24-hour recording.

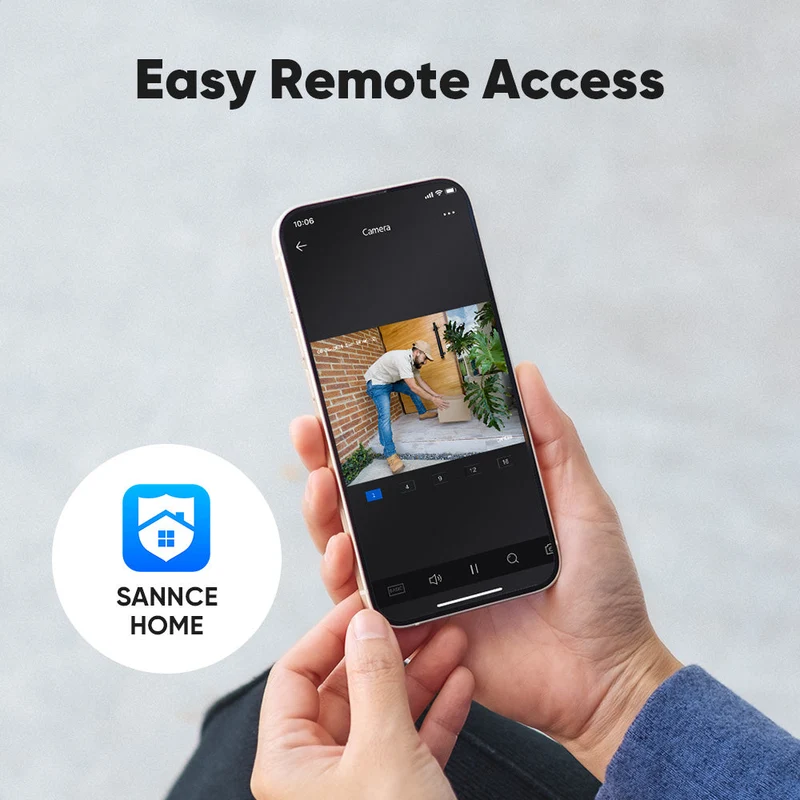

24/7 Security in Your Hand

Access the DVR system via mobile app to watch real-time high-definition live feed anytime. Stay connected with your home no matter you are working or traveling outside.

Intelligent Motion Alerts

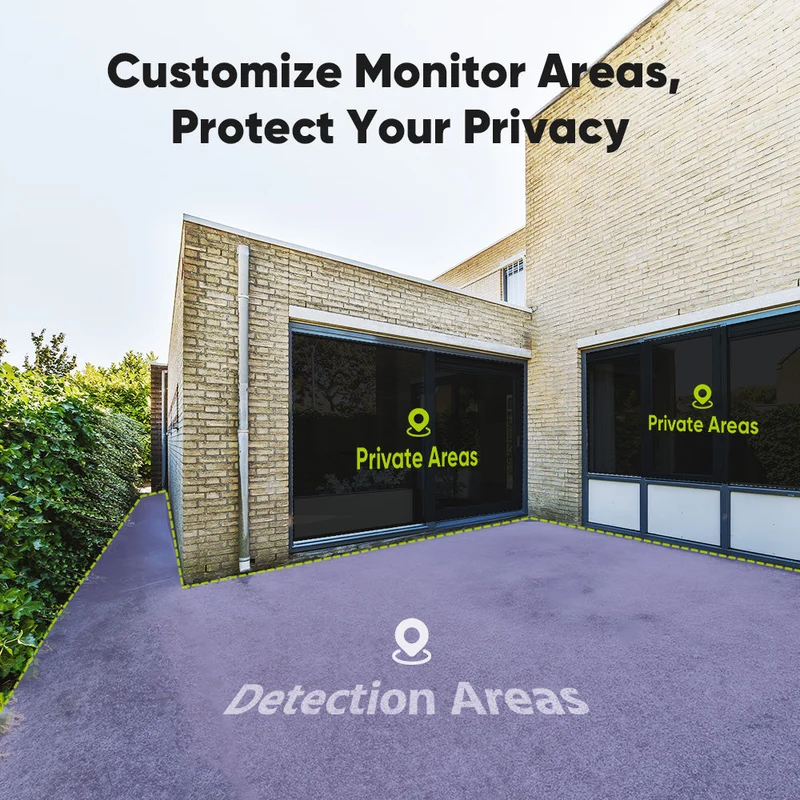

Instant motion detection notifications will be pushed to your email and mobile app. Customize key monitoring zones such as doors and garages to obtain accurate alert information timely.

Smart Playback & USB Backup

Intelligent playback quickly locates motion-triggered videos to save searching time. Users can insert USB flash drive into DVR to back up important recordings locally.

What's in the Box 6X Cameras, 2X PT Cameras, 1X DVR, 6X BNC Cables, 6X Power Adapters, 1X 1-to-4 Power Splitter, 6X Mounting Screw Bags, 1X Window Warning Sticker, 1X User Manual Specifications

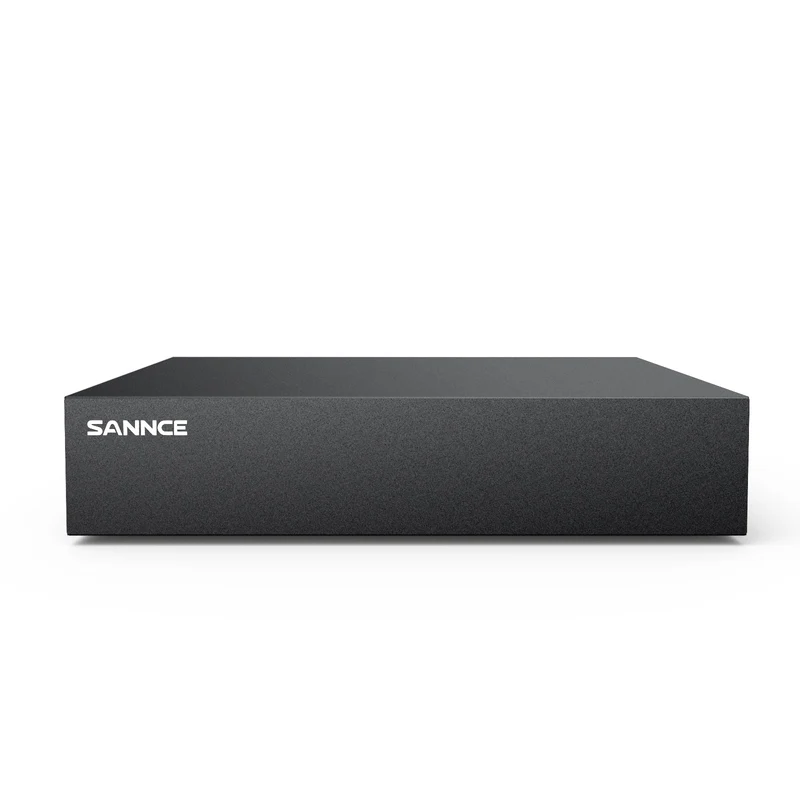

DVR (Model Number: DT81BC)
Video & Audio	Video Compression	H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
	Video Input	8CH Analog HD/Analog + 2CH IP (each up to 5 Mbps)

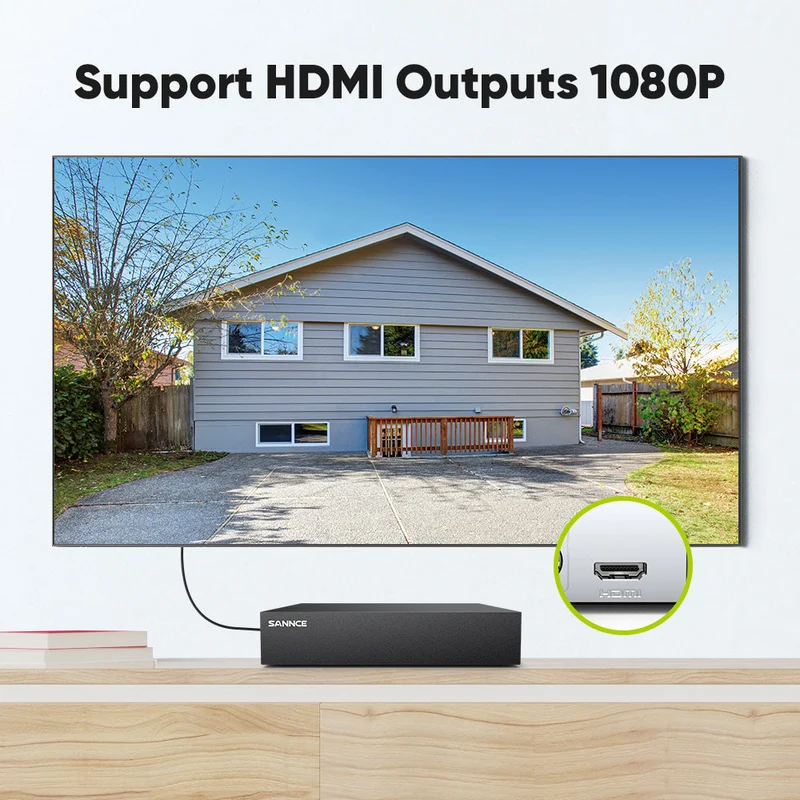

	Video Output	HDMI up to 1080p/60 Hz
	Audio Input/Output	0/8-ch via coaxial cable
	Supported Camera Types	1080p@15 fps, 720p@15 fps
	Analog HD Playback Resolution	1080P Lite(960×1080)/720p(1280×720)@15fps
	IP Camera Input	2-CH
	IPC Recording Resolution	Up to 5MP
	Max Playback Channel	8CH (1080 lite)

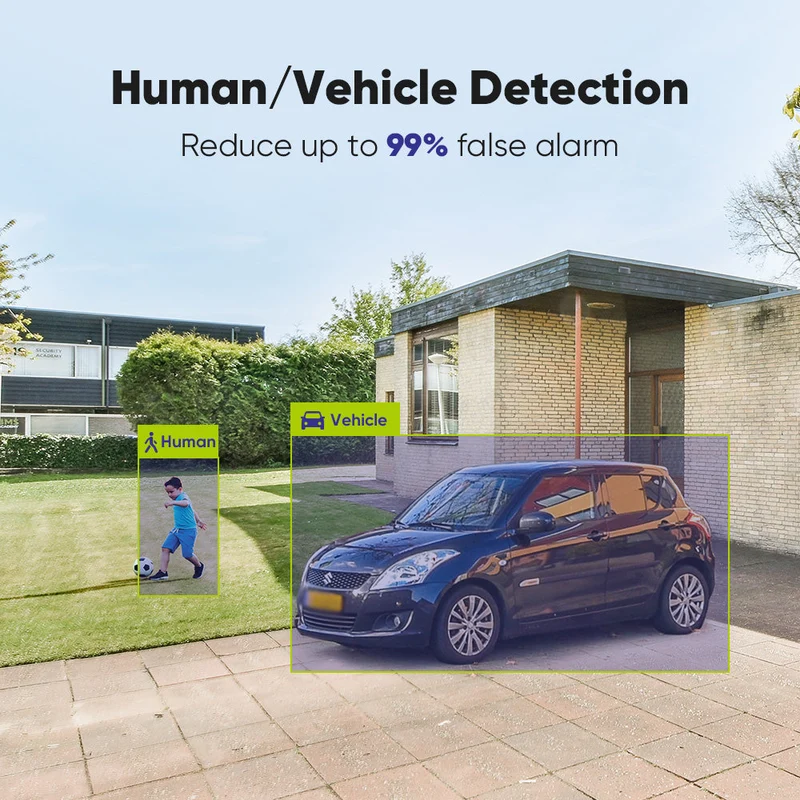

	Human Detection	Support
	Vehicle Detection	Support
	ONVIF	Support
Hard Drive	HDD	1 SATA interface
	HDD Capacity	Up to 4TB capacity (3.5 inch)
External Interface	Network Interface	RJ45×1(10/100)
	USB	USB 2.0×2
General	Working Temperature	14°F – 113°F / -10°C – 45°C
	Dimensions (W X H X D)	193×195×43mm
	Weight	≤1Kg
	Operating Power	DC12V, ≤ 18W

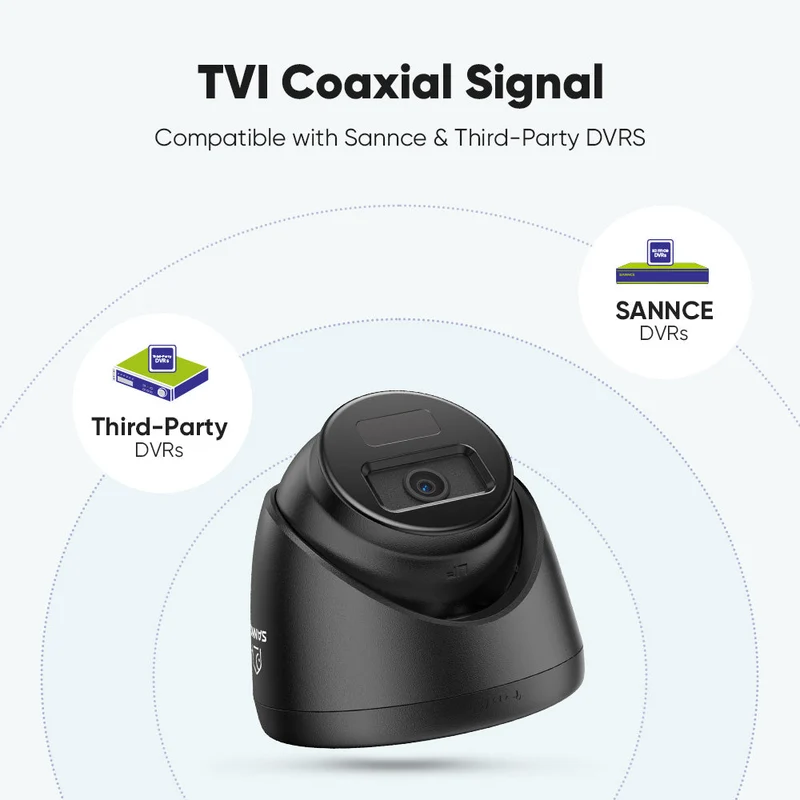

HD Camera (Model Number: CT1GW)
Camera	Image Sensor	2MP CMOS Image Sensor
	Video Resolution	1920 (H) X 1080 (V)
	Signal System	PAL/NTSC
	Frame Rate	PAL: 1080p@25 fps NTSC: 1080p@30 fps
	Lens	3.6 mm
	Min. Illumination	Color: 0.02 Lux @(F1.2,AGC on); 0 Lux with IR on

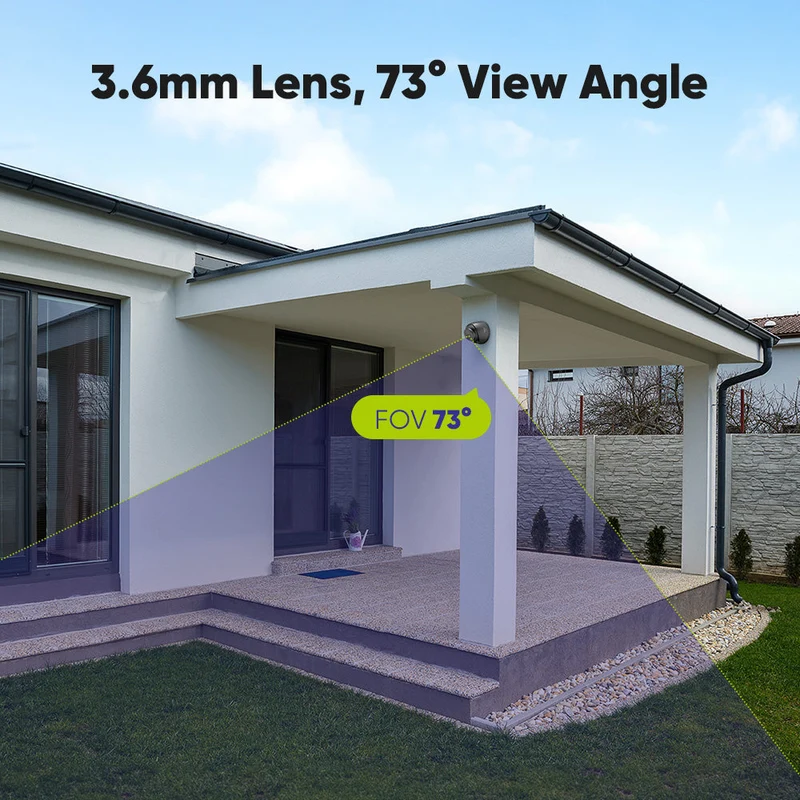

	Angle of View	horizontal FOV: 73°, vertical FOV: 39°
	Number of Infrared LEDs	1
	Night Vision Distance	Up to 66ft/20 m
	DNR	2D DNR
	Wide Dynamic Range	DWDR
	IR-Cut Filter	Yes
	Video Output	HD BNC X1
General	Housing	Plastic
	Color	Black
	Operating Power	DC 12 V

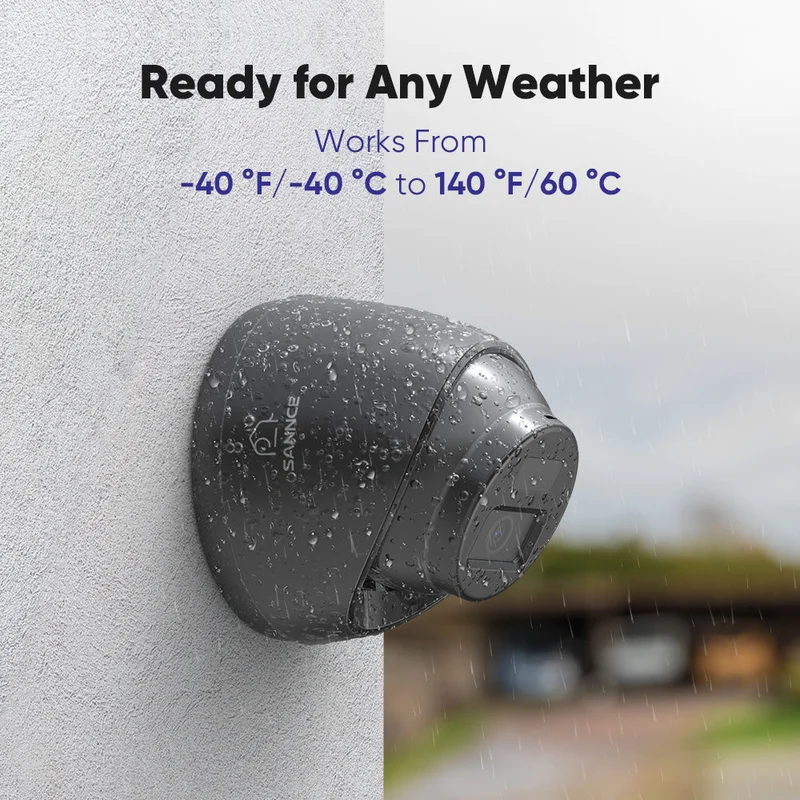

	Operating Temperature	-40°F ~ 140°F / -40°C ~ 60°C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP67
	Dimension (L X W X H)
	Weight

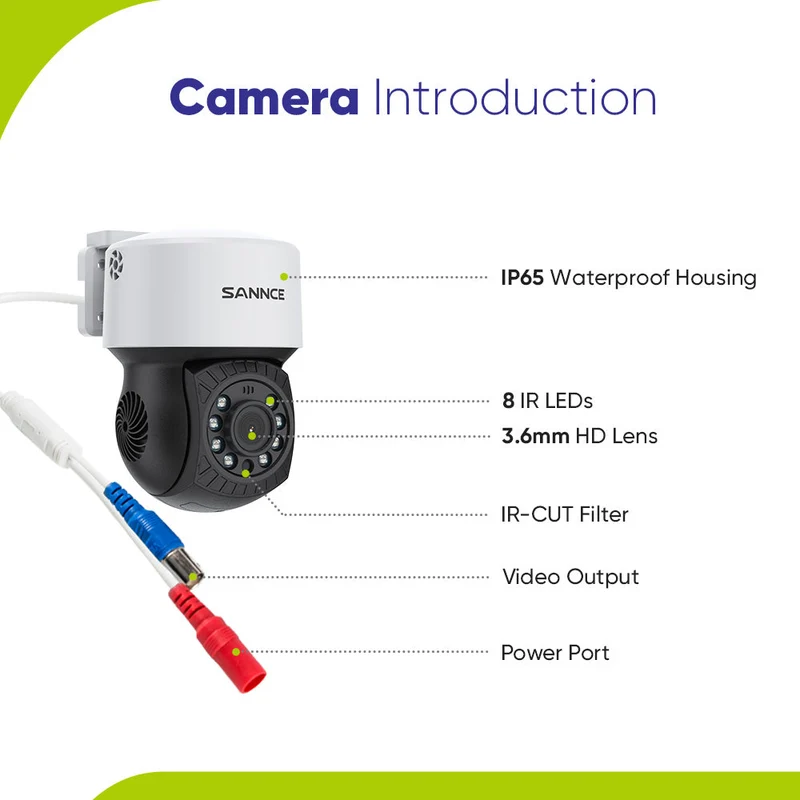

HD Camera (Model Number: CT1DZ)
Camera	Video Resolution	HD 1080P
	Signal system	PAL/NTSC
	Image sensor	Progressive Scan CMOS
	Lens	3.6mm
	Min. Illumination	0.02Lux@(F1.2 AGC ON),0Lux with IR on
	Horizontal rotation angle	350°
	Vertical rotation angle	90°
	Number of Infra-Red LEDs	8
	Night Vision Distance	Up to 100ft/30m
	DNR	DNR
	Wide Dynamic Range	Digital WDR
	IR Cut Filter	Yes
	Video Output	HD BNCx1
General	Housing	Plastic
	Operating Power	DC12V
	Operating Temperature	-4°F – 140°F / -20°C – 60°C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP65
	Weight	0.57 lbs / 260g
