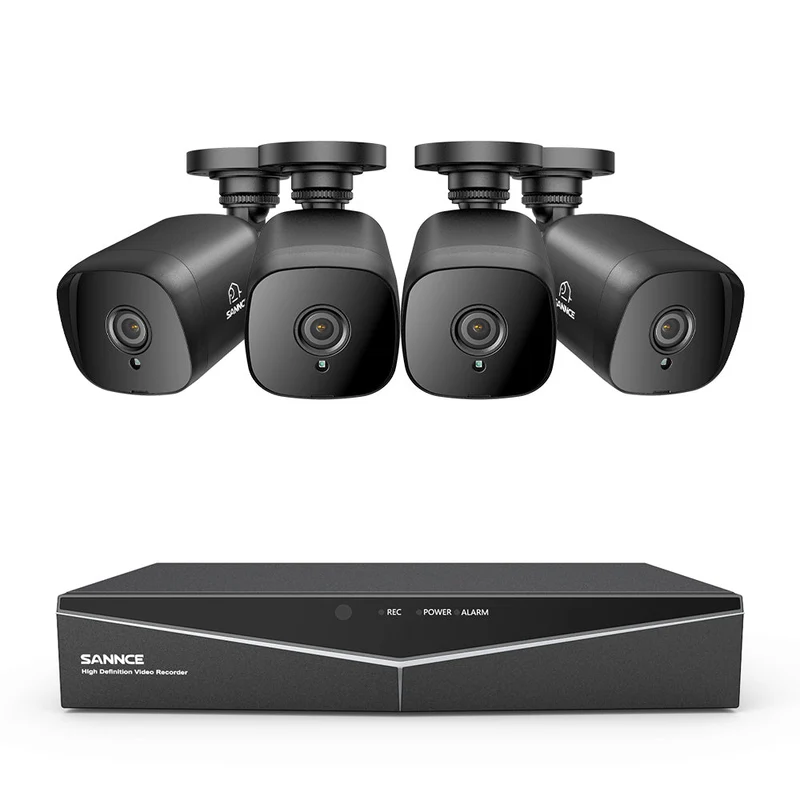

1080P 8 Channel PT Security Camera System - Hybrid 5-in-1 DVR, 100 ft Night Vision, Motion Detection, Outdoor, Waterproof

Crisp 1080p Lite Stream

The system delivers 2MP images with Progressive Scan CMOS to put your home or office under visible protection. HDMI & VGA connection enables up to 2MP Full HD stream output, producing lifelike images, never missing an event.

Image Enhancement with DNR & Digital WDR

The digital WDR helps balance the lighting for clearer images, perfect for challenging lighting conditions. The DNR removes the image noise greatly, enabling the CCTV camera to deliver cleaner images.

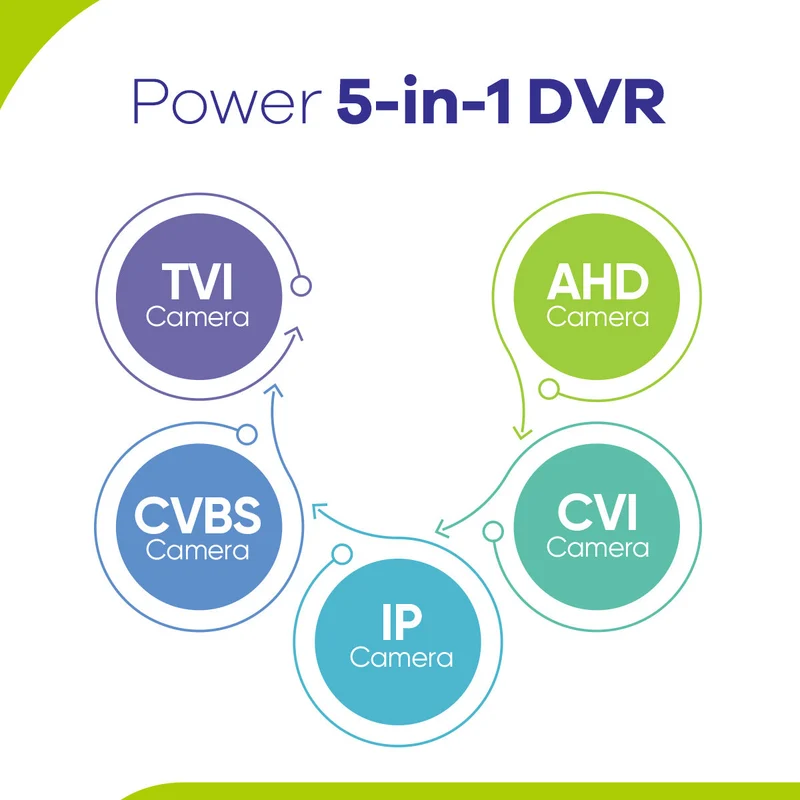

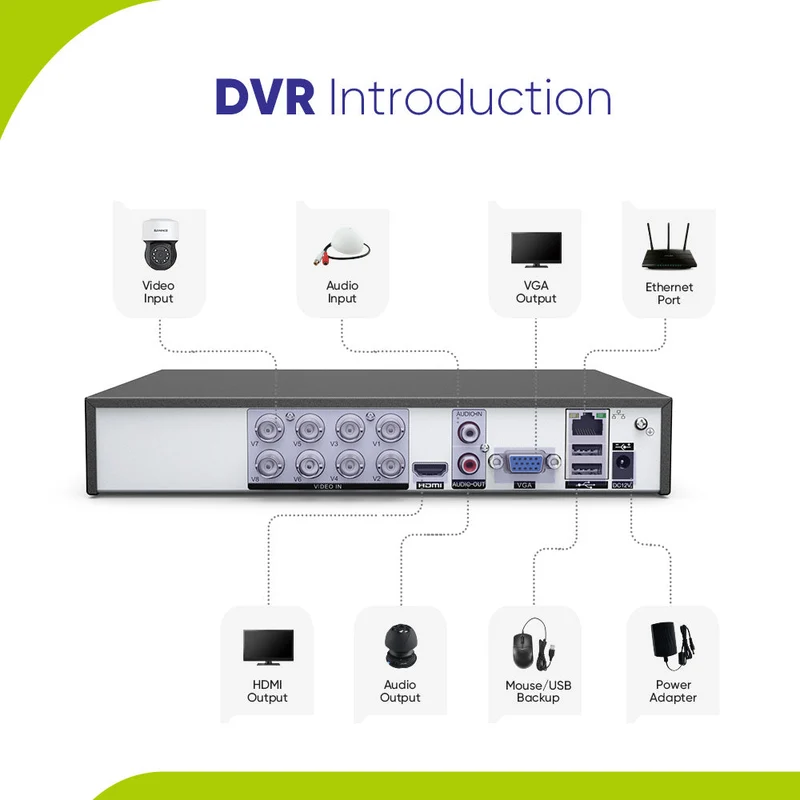

Powerful 5-in-1 DVR

SANNCE 8 channel digital video recorder is compatible with up to 2MP 8CH TVI, AHD, CVI, CVBS analog, and up to 2MP 2pcs IP security cameras. You may integrate any type of security camera you want for 24/7 non-stop recording.

24/7 Security in Your Hand
You are allowed to access the DVR system via the app on your phone to watch a high-quality live stream anytime you like. Always stay connected to your home and family, no matter whether you are at work or on a journey.

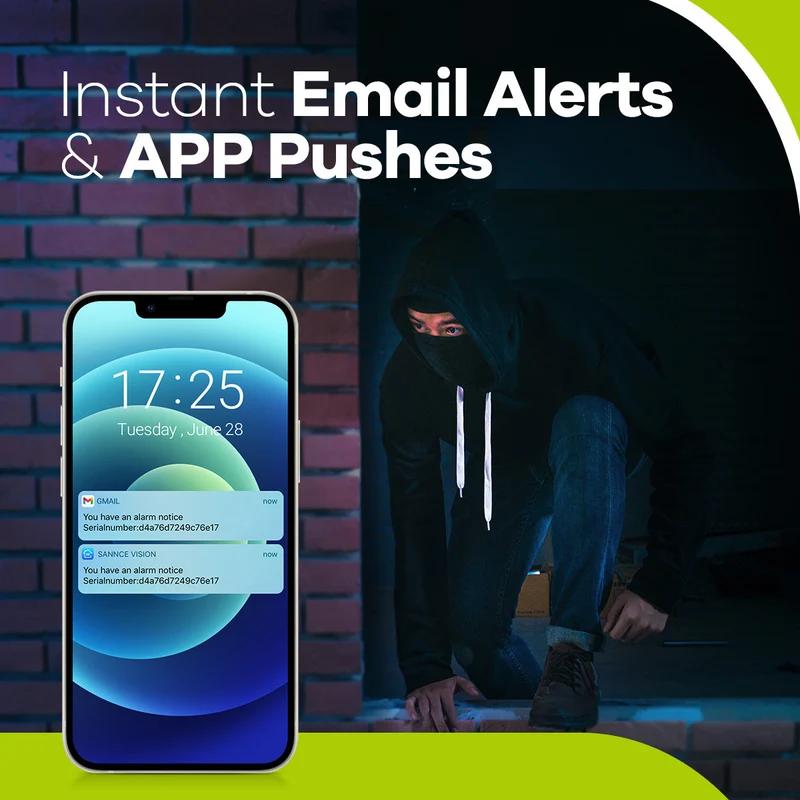

Intelligent Motion Alerts

Real-time motion alerts will be sent to you via your emails or app pushes. You can customize the monitoring areas you care about most, like the backdoor, garage, and doorstep, to get accurate alerts. Tap to see what happened in your home or office.

Smart Playback & USB Backup

The smart playback enables you to quickly locate and playback footage containing motions, saving you much time and effort. Connect a USB drive to the DVR for optional local backup.

IP65 Dust and Waterproof

Rated IP65 weatherproof, this camera is suitable for indoor or outdoor usage and works from -40°F to 140°F.

What's in the Box

2X Camera 1X DVR 2X BNC Cable 2X Power Adapter 1X 1-to-2 Power Splitter 2X Mounting Screws Bag 1X Window warning sticker 1X User's Manual Specification

DVR
Model Number		DN81BS

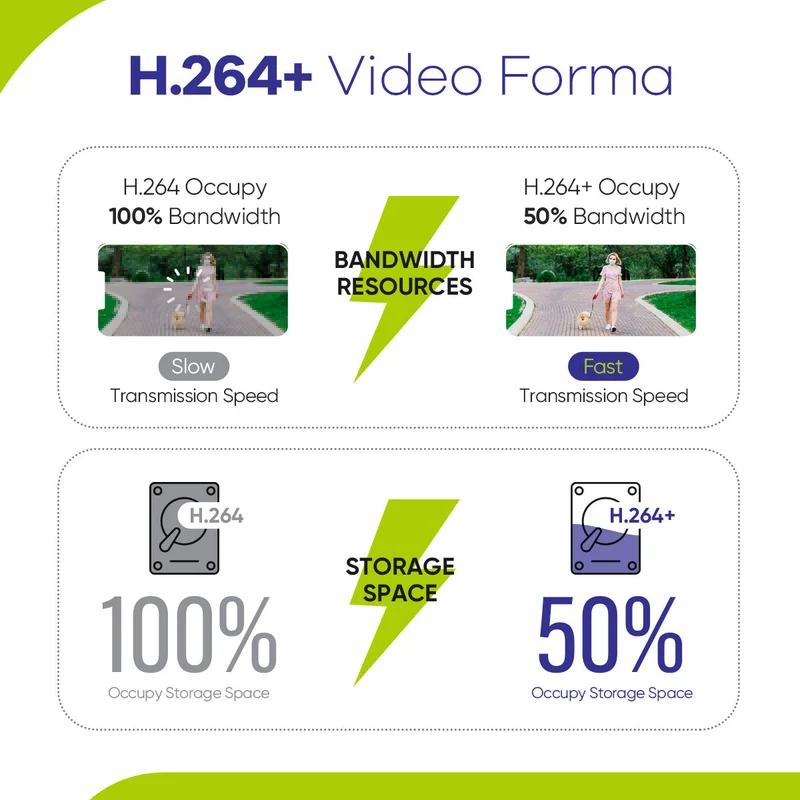

Video & Audio	Video Compression	H.264+
	Video Input	8CH HD Analog
	Video Output	HDMI and VGA up to 1080p
	Audio Input	1CH RCA; 8CH via Coaxial Cable
	Audio Output	1CH RCA
	Analog Resolution	8*1080p Lite@15fps; 4*5M-N (21fps)
	Analog HD Playback Resolution	1080p Lite (960 X 1080)
	Hybrid Resolution	8*1080N@15fps (analog) +2*1080P
	IPC Resolution	16*1080P; 16*5MP
	Max. Playback Channel	4CH (Analog mode)
	ONVIF Protocols	Support
Hard Drive	HDD	1 SATA Interface
	HDD Capacity	Up to 8 TB Capacity
General	Network Interface	RJ45 X1 (10/100 M)
	USB	USB 2.0 X2
	Operating Power	DC 12V/2A
	Working Temperature	14 °F – 131 °F/-10 °C – 55 °C
	Dimensions (W X H X D)	10.04” X 9.29” X 1.73”/255 X 236 X 44 mm
	Weight (Without Hard Disk)	2.2 lbs./1 kg (Without HDD)
Camera
Model Number		CT1GM/CT1GN
Camera	Video Resolution	HD1080P
	Signal system	PAL/NTSC
	Image sensor	Progressive Scan CMOS
	Lens	3.6mm
	Min. Illumination	0.02Lux@(F1.2 AGC ON),0Lux with IR on
	Angle of View	70°
	Number of Infra-Red LEDs	12
	Night Vision Distance	Up to 100ft/30m
	DNR	DNR
	Wide Dynamic Range	Digital WDR
	IR Cut Filter	Yes
	Video Output	HD BNCx1
General	Housing	Metal & Plastic
	Color	Black
	Operating Power	DC12V
	Operating Temperature	-40 °F – 140 °F /-40 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP66
	Dimension (L x W x H) for CT1GL, CT1GP	3.54” x3.54” x 2.95” / 90 x 90 x 75mm
	Dimensions (L X W X H)for CT1GM, CT1GN	6.49” x 2.36” x 2.36” / 165 x 60 x 60mm
	Weight	0.33 lbs / 150g
