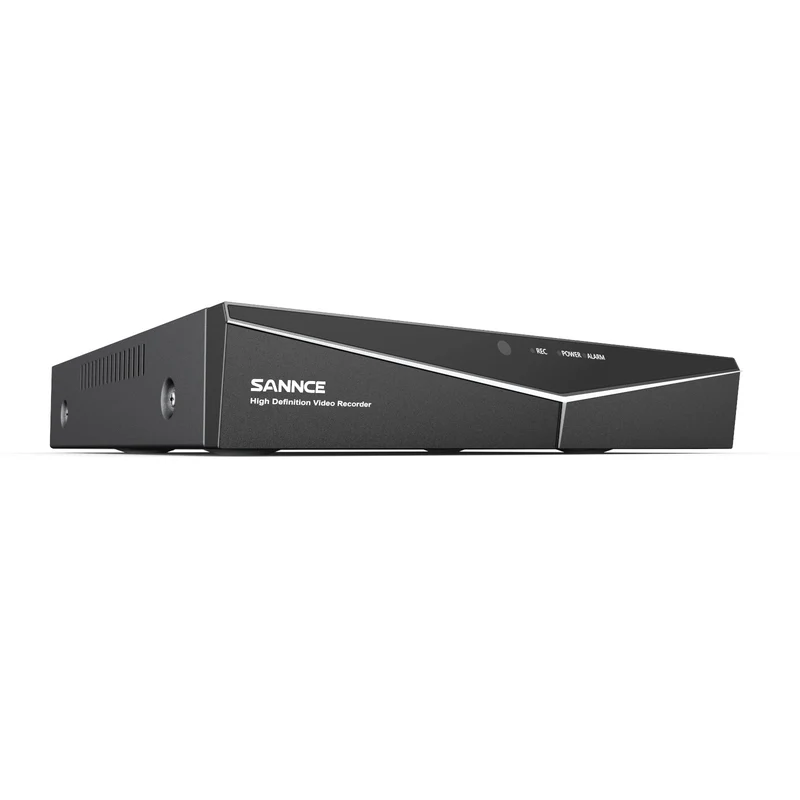

1080P 16-Channel Security DVR Hybrid 5-in-1 Video Recorder For CCTV Camera, Advanced Motion Detection Technology

Main Features

• 5-in-1 Compatibility
• 1080p Lite HD Stream
• Humanoid Motion Detection alerts
• Unlimited Remote Access
• Work with Third-Party Cameras

Compatible 5-in-1 DVR

The hybrid digital video recorder works with TVI, AHD, CVI, CVBS analog, and IP security cameras (up to 1080p Full HD resolution). You may add any type of security camera to this DVR for 24/7 recording.

Security in 1080p High Clarity

The DVR supports up to 1080p HDMI & VGA output so that you can connect the DVR to a TV or a monitor to get a local live view. Besides, it works seamlessly with 1080p analog security cameras, providing 1080p Lite input to identify any detail you need.

Compatible H.264+ Video Format

H.264+ coding saves more videos and consumes less bandwidth than H.264 systems. It is the most compatible video compression technology that provides you with ultra-smooth 1080p Lite streaming without all the data.

Humanoid Motion Detection alerts

With the advanced Humanoid Motion Detection algorithm, the DVR detects any difference and sends real-time app push notifications and email alerts to you. Thus, you can access the video recorder to check the motion alerts & take action.

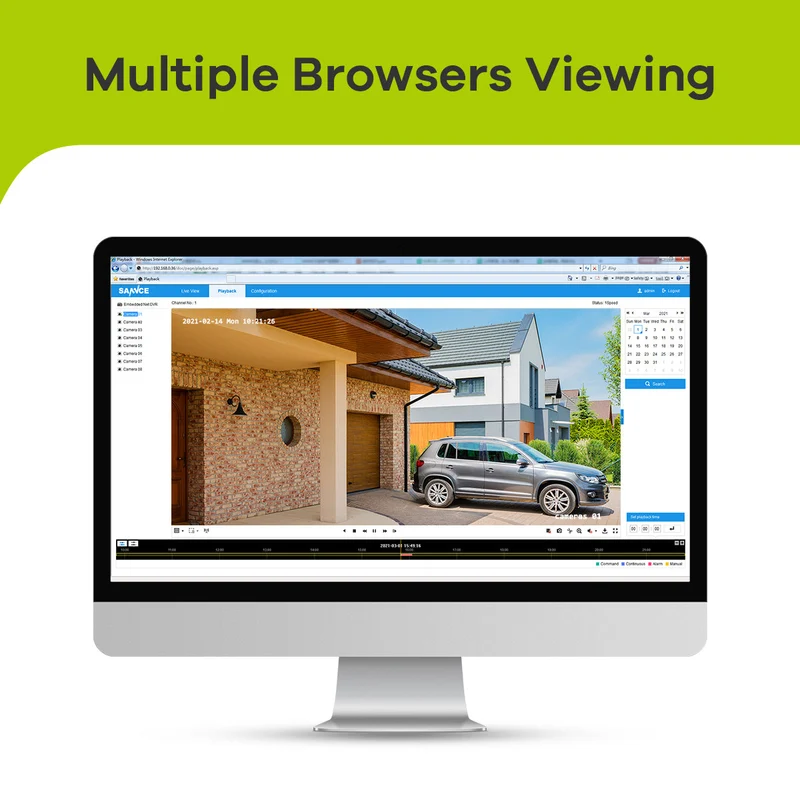

Remote Access with All Your Devices

It's just a breeze to control the DVR remotely via 3G/4G/5G or WiFi through your smartphones, tablets, computers, laptops, and browser (Internet Explorer). Keep tabs on your home & business when you're working, shopping, or traveling.

Smart Motion-Activated Alerts
You can customize the motion detection zones, such as the window, backdoor, garage, and yard. Receive instant app pushes or email alerts with snapshots whenever unusual motions are detected.

What's in the Box
1X DVR
1X Power Adapter
1X USB Mouse
1X User Manual

Specifications

DVR (Model Number: DT61BH)
Video & Audio	Video Compression	H.264+/H.264
	Video Input	16CH HD Analog
	Video Output	HDMI and VGA up to 1080p
	Audio Input/Output	2/1 RCA, Support Coaxial Audio
	Channel Type	Analog & IPC
	Analog HD Recording Resolution	1080p Lite (960 X 1080@15fps)
	IPC Recording Resolution	IP: 161080P;85MP
	Hybrid Recording Resolution	Hybrid: 161080N@15fps(analog)+41080P
	Playback Resolution	16CH (Analog mode) 1080p Lite
	Compression	G.711a
	ONVIF Protocols	Support
	Record mode	Manual>Motion detection>Schedule
	Inquire mode	Inquire by Time/Calendar/Event/Channel
	Storage mode	Sata HDD
	Backup	Network, USB storage
Hard Drive	HDD	1 SATA Interface
	HDD Capacity	Up to 8 TB Capacity

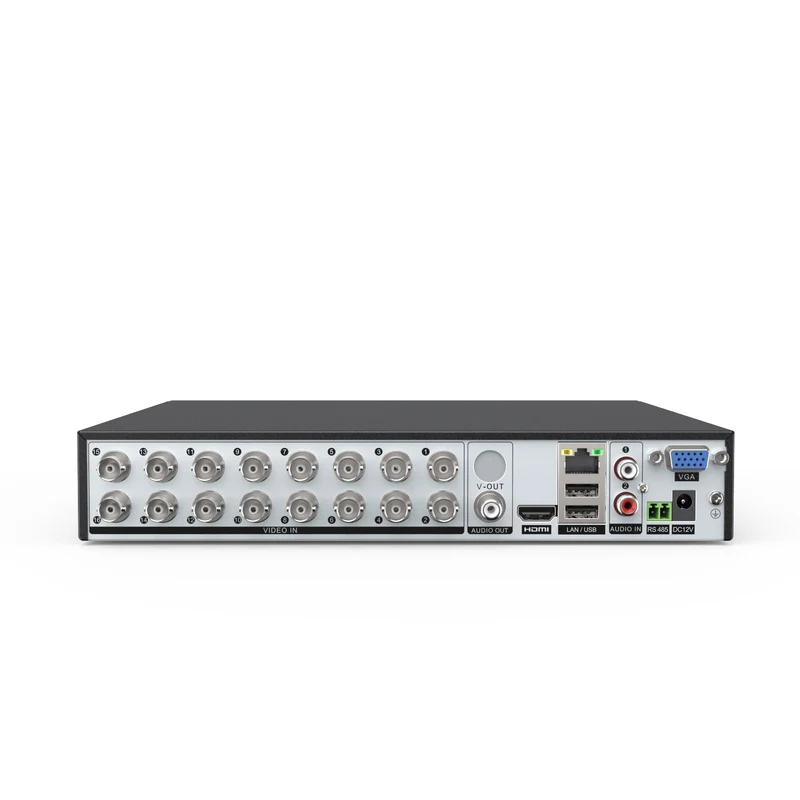

External Interface	Network Interface	110/100Mbps Ethernet port, RJ45 port
	USB	USB 2.0 X2
	PTZ control	1RS485, Support for multiple PTZ protocols
General	Operating Power	DC 12V/2A
	Working Temperature	14 °F – 131 °F/-10 °C – 55 °C
	Consumption	<10W (Without HDD)
	Humidity	10% -90% RH
	Dimensions (W X H X D)	10.03" X 9.29" X 1.73"/255mm X 236mm X 44mm
	Weight (Without Hard Disk)	≤ 2.2 lbs./1 kg (Without HDD)
