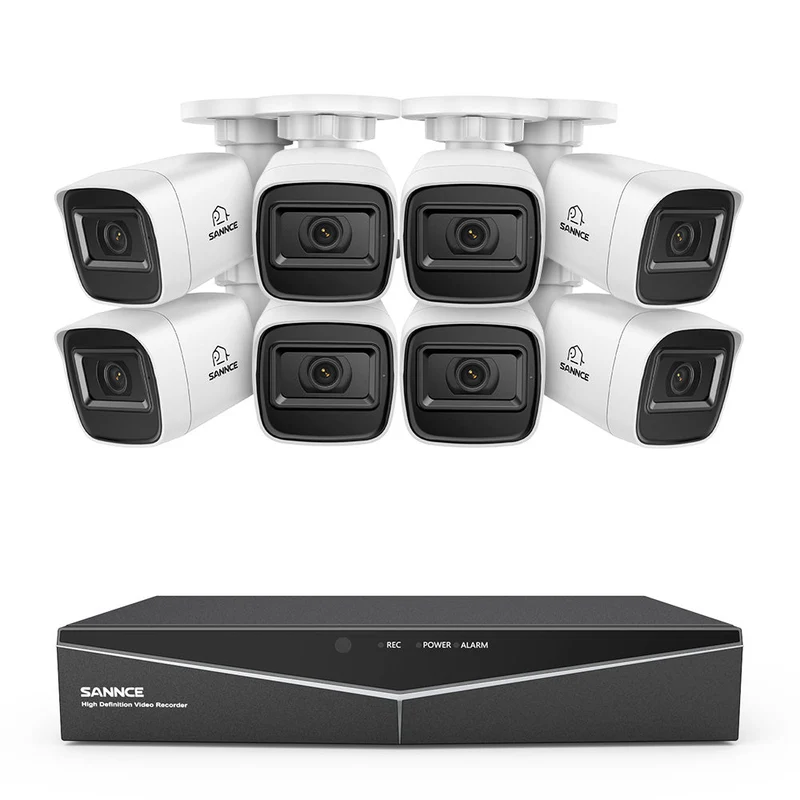

1080p 16 Channel 8 Camera Outdoor Wired Security System, Smart Motion Detection, 100 ft Infrared Night Vision, IP67 Weatherproof

High-Quality 1080p Lite Stream

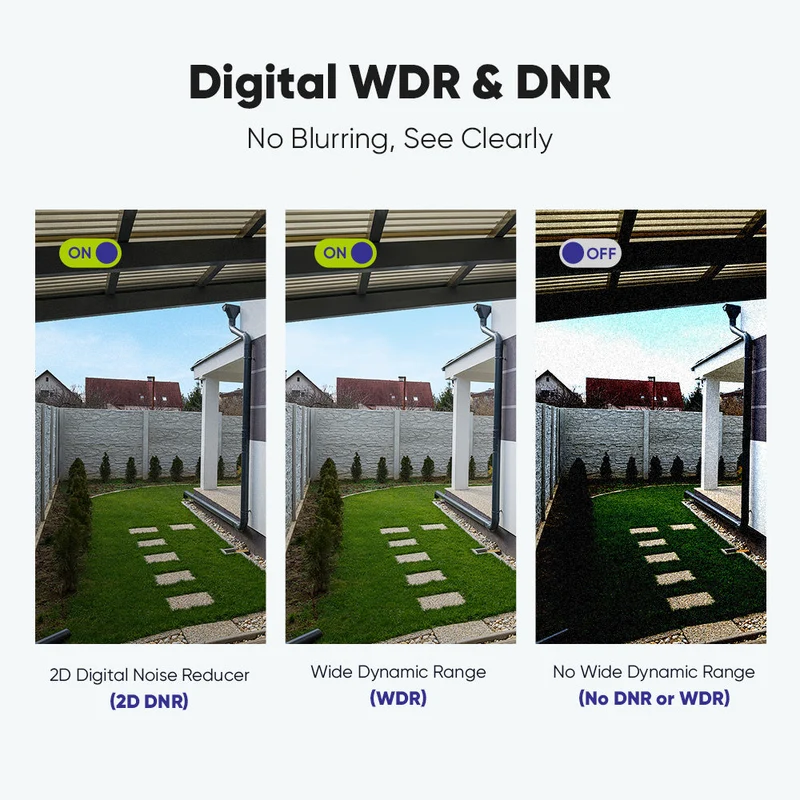

The smart home & business security system delivers high-quality, crisp 1080p lite images. Digital WDR enables the outdoor video camera to record sharper video in challenging bright-to-dark lighting conditions.

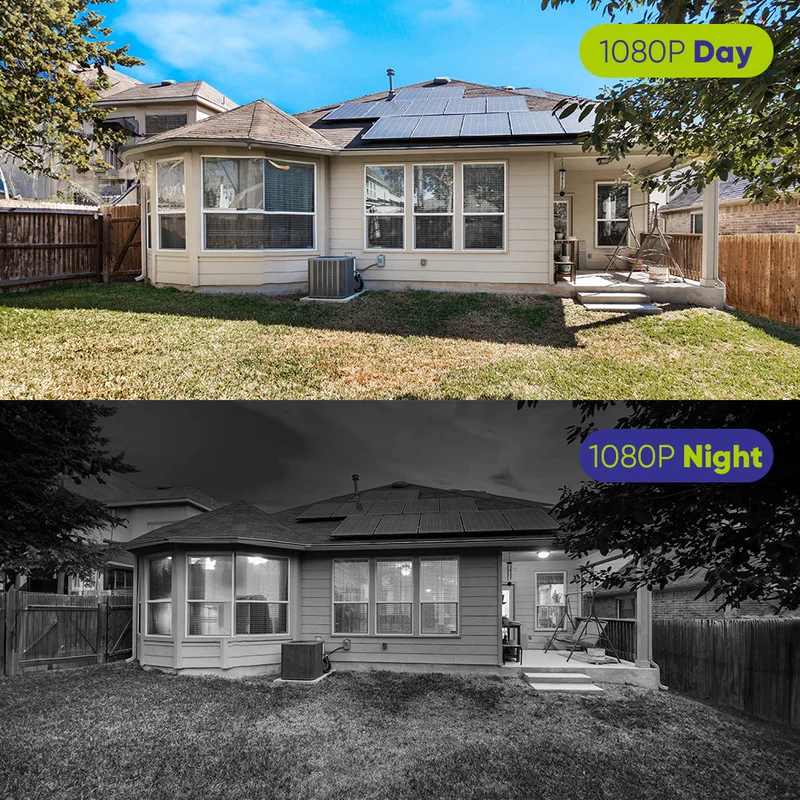

100 ft EXIR Night Vision

The cutting-edge EXIR technology helps the outdoor video camera to deliver crystal-clear night vision images from up to 100 ft away, even in complete darkness. Ensure that your premises and property are protected from dusk to dawn.

Remote Access & Intelligent Alerts

Enjoy unlimited remote control via the free Sannce App or software on your computers, browsers, phones, or tablets. You can get motion-triggered alerts via app pushes or email alerts whenever unusual motion is detected. Never miss an important clip!

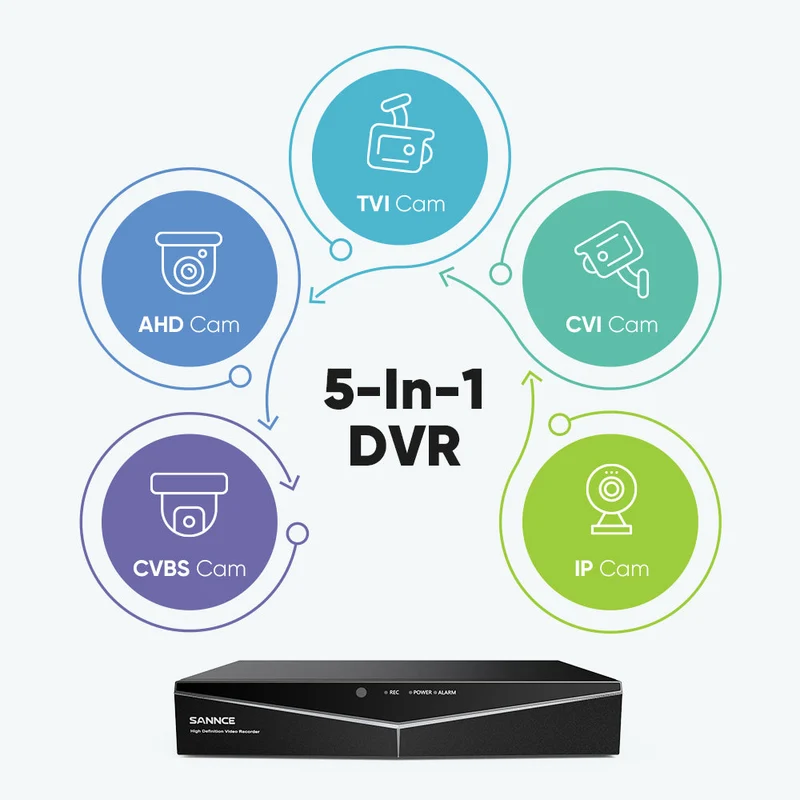

Expandable 5-in-1 DVR

The powerful 5-in-1 DVR can integrate with all SANNCE and third-party cameras. With the compatibility, you can connect up to 8 analog or IP cameras into the smart DVR system, without any hardware limitation.

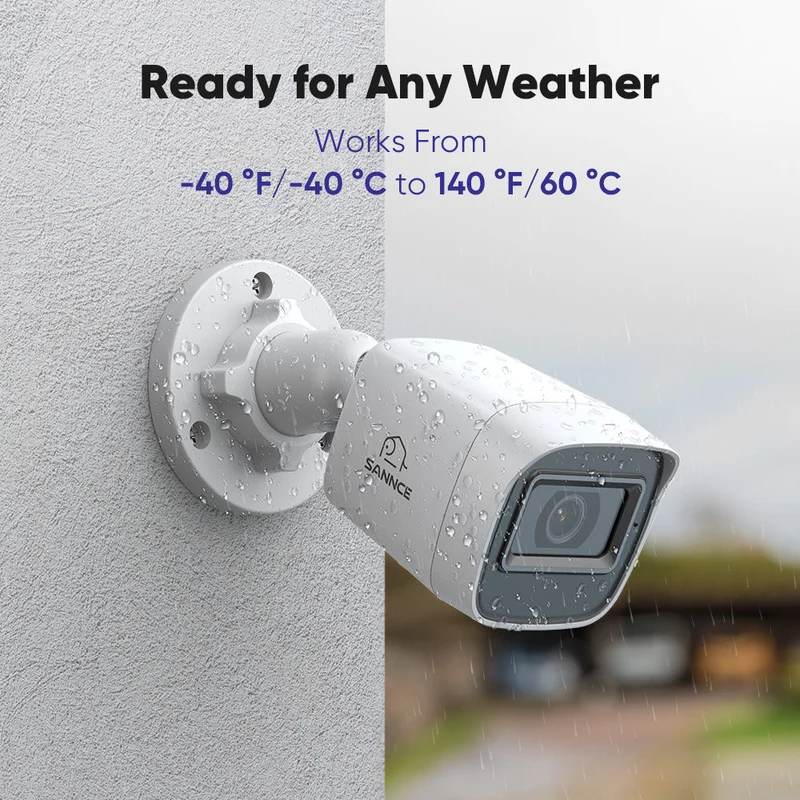

Dependable IP66 Waterproof

IP66 waterproof rating allows the weather & corrosion-resistant wired camera to be durable enough to use outside & inside. Just install the outdoor wired camera at your home, office, factory, warehouse, garage, anywhere you like,to get 24/7/365 monitoring.

• 24/7 Recording Even Without Ethernet

• Remote Access & Motion Alerts

• IP66 Waterproof Housing

• Compatible 5-in-1 DVR

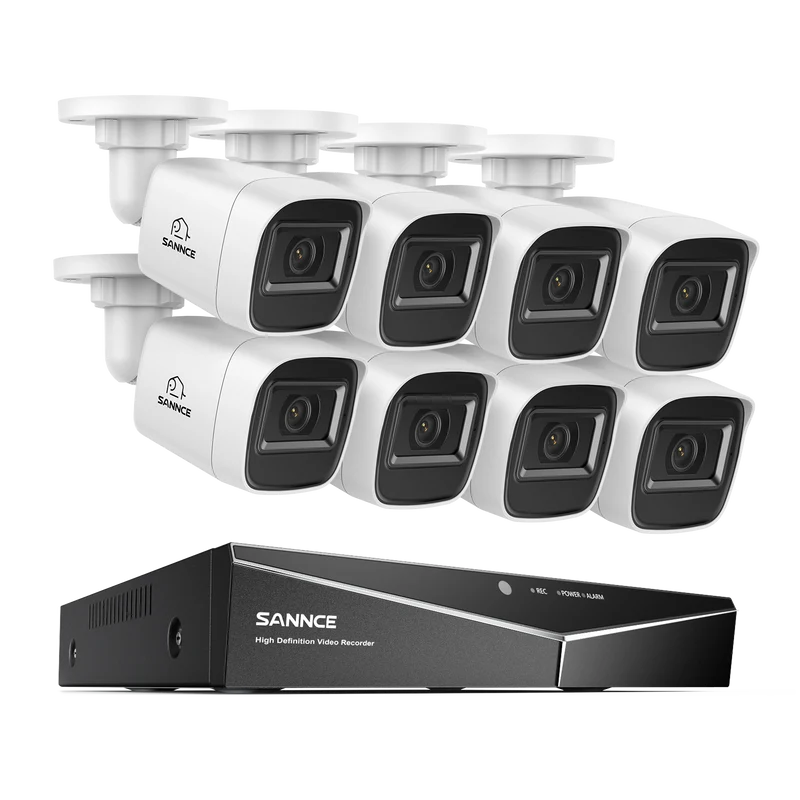

What’s in the Box

• 1X DVR
• 8X Cameras
• 8X 60 ft/18 m BNC Cables
• 3X Power Adapters
• 2X 1-to-4 Power Splitters
• 1X USB Mouse
• 8X Mounting Screw Bags
• 1X User Manual

Specifications

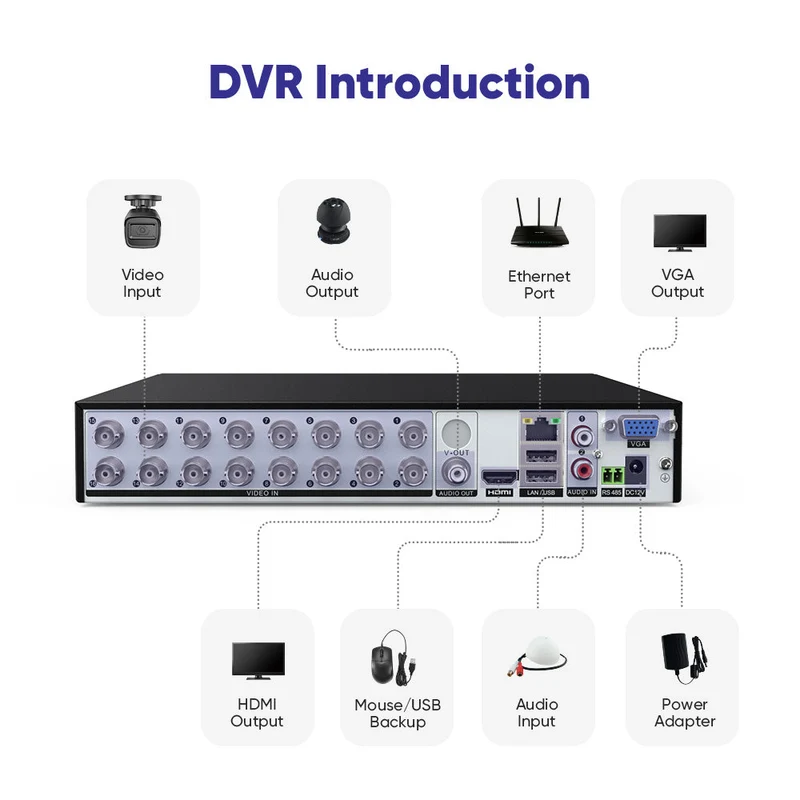

DVR

Model Number: DT61BH

Category	Specification	Details

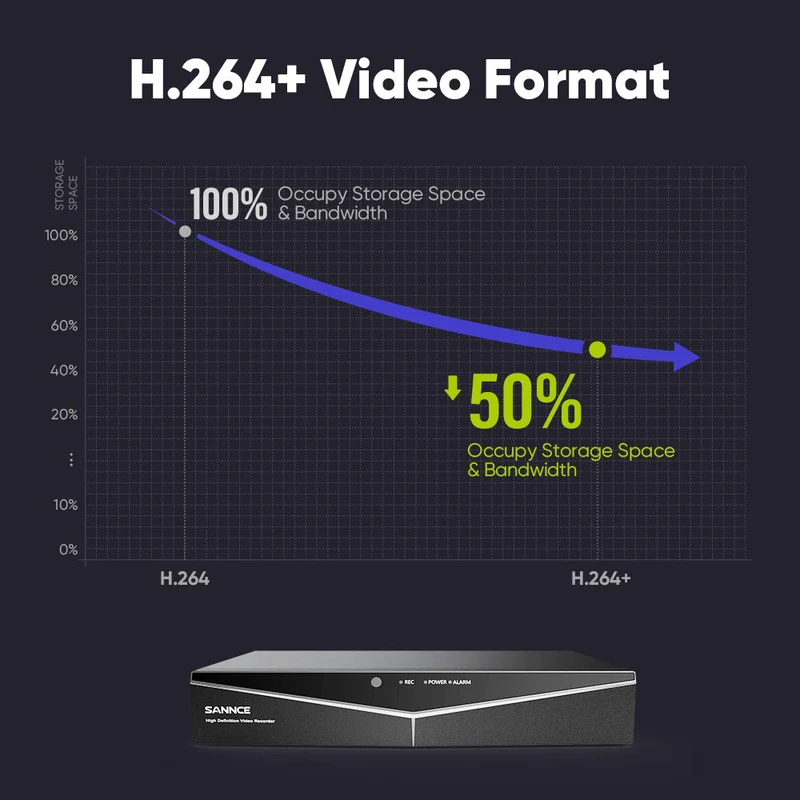

Video & Audio	Video Compression	H.264+
	Video Input	16 × BNC

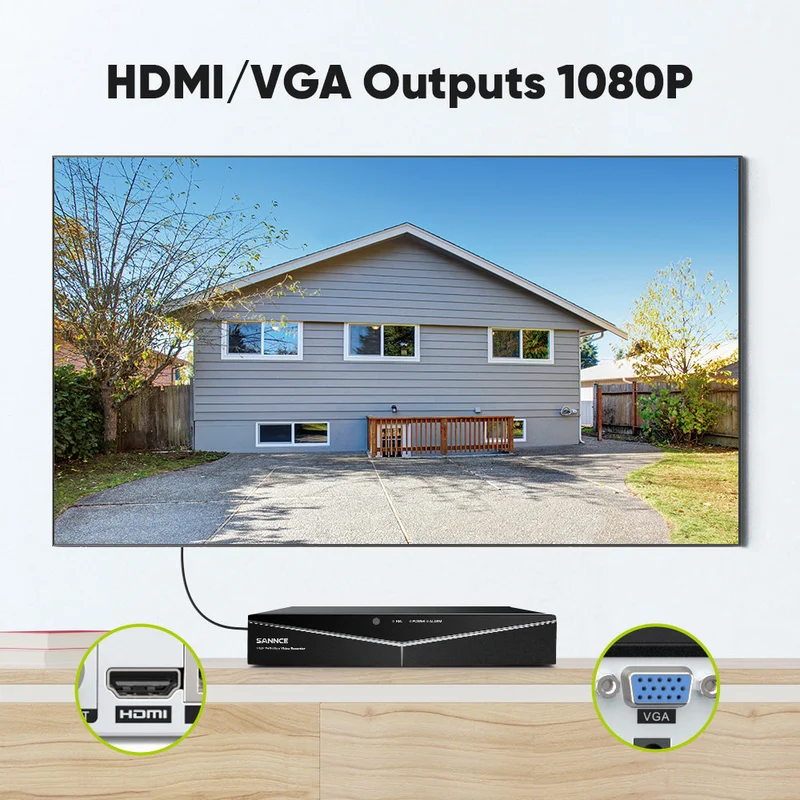

	Video Output	HDMI and VGA up to 1080p
	Audio Input / Output	2CH / 1CH RCA
	Encode / Decode	16 × 1080p Lite @ 15fps
	Analog HD Recording Resolution	16 × 1080p Lite @ 15fps
	Hybrid Recording Resolution	16 × 1080p Lite @ 15fps analog + 4 × 1080p
	IPC Recording Resolution	16 × 1080p; 8 × 5MP
	Playback Resolution	16CH Analog Mode
	Compression	G.711a
	Intercom	Support
Storage	HDD	1 SATA Interface
	HDD Capacity	Up to 8 TB
	Backup	Network, USB Storage
General	Network Interface	RJ45 × 1, 10/100M
	USB	USB 2.0 × 2
	Storage Mode	Network, USB Storage
	PTZ Control	1 × RS485, supports multiple PTZ protocols
	Record Mode	Manual / Motion Detection / Schedule
	Inquiry Mode	Inquiry by Time / Calendar / Event / Channel
	Operating Power	DC 12V
	Consumption	<10W, without HDD
	Working Temperature	14°F – 131°F / -10°C – 55°C
	Dimensions, W × H × D	10.1" × 9.3" × 1.8" / 255 × 236 × 44 mm
	Weight, without HDD	2.2 lbs / 1 kg

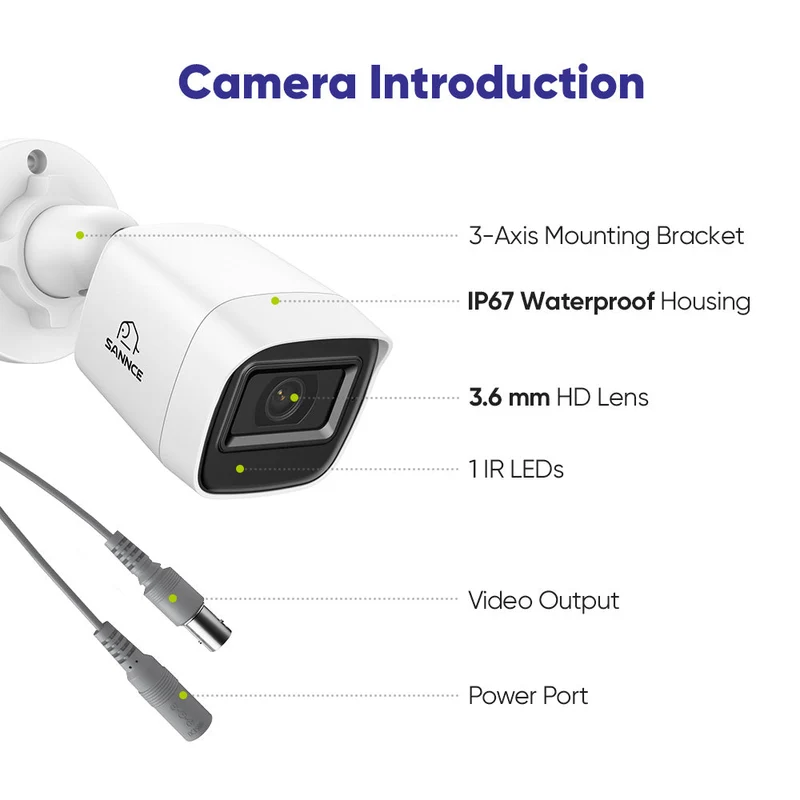

HD Camera

Model Number: C51FE/C51EE/CT1GW

Category	Specification	Details
Camera	Image Sensor	2MP CMOS Image Sensor
	Video Resolution	1920 H × 1080 V
	Signal System	PAL / NTSC
	Frame Rate	PAL: 1080p @ 25fps; NTSC: 1080p @ 30fps
	Lens	3.6 mm
	Minimum Illumination	Color: 0.02 Lux @ F1.2, AGC On; 0 Lux with IR On
	Angle of View	Horizontal FOV: 73°, Vertical FOV: 39°
	Number of Infrared LEDs	1
	Night Vision Distance	Up to 66 ft / 20 m
	DNR	2D DNR
	Wide Dynamic Range	DWDR
	IR-Cut Filter	Yes
	Video Output	HD BNC × 1
General	Housing	Plastic
	Color	Black
	Operating Power	DC 12V
	Operating Temperature	-40°F – 140°F / -40°C – 60°C
	Indoor / Outdoor	Indoor / Outdoor
	Weatherproof Rating	IP67
